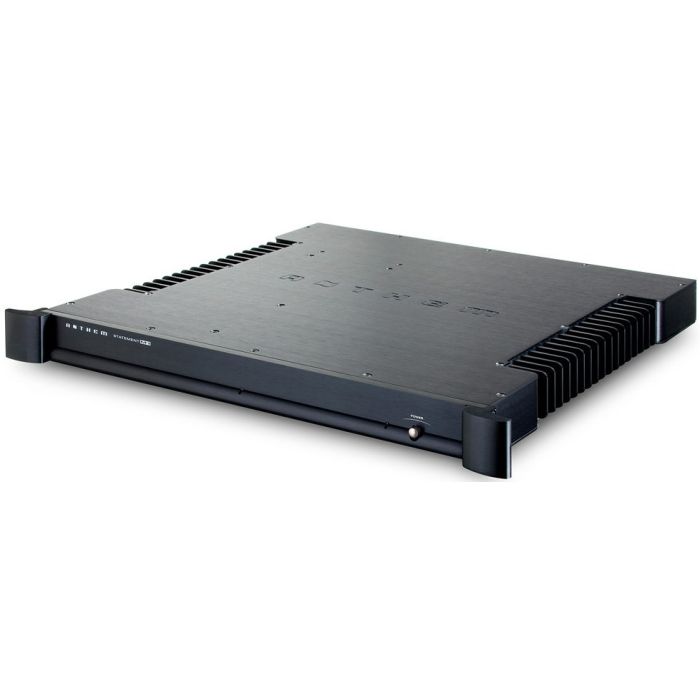

Anthem M1 Statement Power Amplifier
This item isn't available to buy online. Please contact us to order or for more information.
You can earn loyalty points on every order you place on this website. If you select to create an account at checkout, your loyalty points will be saved and you can use these to discount future orders online.
Each product page shows you how many loyalty points you can earn when you order that item. Essentially, for each £1 you spend, you earn 1 loyalty point and for every 1 point earned, 1p will be added to your loyalty point balance (this is the same as some of the UK's biggest loyalty point cards). So for example, if you spend £500, you'll earn 500 loyalty points which can be used to discount a future order by £5.00.
Available - Usually ships within 2-3 days
Features
| Manufacturer | Anthem |
|---|---|
| Warranty The length of time your product is protected by warranty | 5 Years |
Tech Specs
Power Output continuous, 20 Hz to 20 kHz, <0.1% THD+N
- 8 Ω: 1000 W
- 4 Ω: 2000 W
- 3 Ω: 2400 W
- 2 Ω: >2000 W depending on line voltage regulation
Frequency Response 20 Hz to 20 kHz
- Open circuit: +/- 0.1 dB
- 8 Ω: +/- 0.1 dB
- 4 Ω: +/- 0.1 dB
- 2 Ω: +/- 0.2 dB
Power Bandwidth 1000 W at 8 Ω: 5 Hz to 45 kHz
THD+N at 1 kHz, 8 Ω
- 1 W: 0.01 %
- 10 W: 0.01 %
- 100 W: <0.03 %
- 1000 W: <0.06 %
- IMD 19 kHz + 20 kHz, CCIF: 0.003%
- S/N Ratio ref. 1000 W, IEC-A: 113 dB
- Voltage Gain: 29 dB
- Input Sensitivity: 100 mV for 1 W output, 3.2 V for 1000 W output (8 Ω)
- Input Impedance: 10 kΩ (RCA), 20 kΩ (XLR)
- Damping Factor: 800 to 1400 depending on frequency
- XLR Configuration: Pin 1: Ground, Pin 2: Positive, Pin 3: Negativ
Power Requirements
- Consumption in a typical music/theater installation
- standby mode, 120V mains: <1 W
- standby mode, 240V mains: <2 W
- operate mode, idle: 33 W
- typical operation: 300 W
Dimensions
- Height with feet: 2 1/4 inches (5.7 cm)
- Height without feet: 1 rack unit
- Width standard handles: 19 1/4 inches (49 cm)
- Width rackmount handles: 19 inches (48.3 cm)
- Depth: 18 3/4 inches (47.6 cm)
- Weight: (unpacked) 20 lb (9 kg)
Description
Anthem M1 Statement power amplifier is a monaural amplifier that delivers incredible sound quality with state of the art technology that sounds great at every volume level. Delivering 1000 watts into 8 ohms and a newly considered class D amplifier design that reaches its full potential.
Class D Amplification
Although there may be many generalisations about the capabilities of Class D amplifiers, the Anthem M1 refutes these ideas. It offers all the advantages of a Class D amplifier being highly efficient, compact in size and high output power. But it avoids all the limitations expected with this type of amplifier such as mains line contamination, difficulty driving high-end speakers and issues with reliability and sound quality. The M1 breaks the mould and delivers breathtaking realism to your music and movies
Low Noise
This system prides itself on its exceptionally low noise levels. It has a cool running system that has an extremely efficient heat transfer process that eliminates the need for fans thus reducing the danger of overheating in multiple M1 systems. Without a noisy fan the amplifier can enjoy a low noise floor and sounds super quiet making it suitable for even the quietest listening rooms.
Dynamic Signal Range
The Anthem M1 is a highly efficient power amplifier that enjoys full resolution of all the sonic details and subtleties in the input signal, and enjoys a full dynamic range reproduced accurately for a realistic audio experience. The M1's control system continuously varies the width of the output pulse train in direct relation to the analog input signal.
Key Features
- Compact design occupies only 1 rack space
- Proprietary load monitoring system can handle all loads and deliver highest output possible for each operating condition
- Power Factor Correction maximises available power whilst reducing AC line noise, enabling continuous power throughout the AC
- Bridged mode amplification with lower voltage MOSFET's that can handle peak current of 260 amperes
- Hand-crafted 4-layer FR4-rated glass-epoxy circuit board with 2-ounce copper traces promotes exceptional conductivity
- Auto Power On/Off mode
