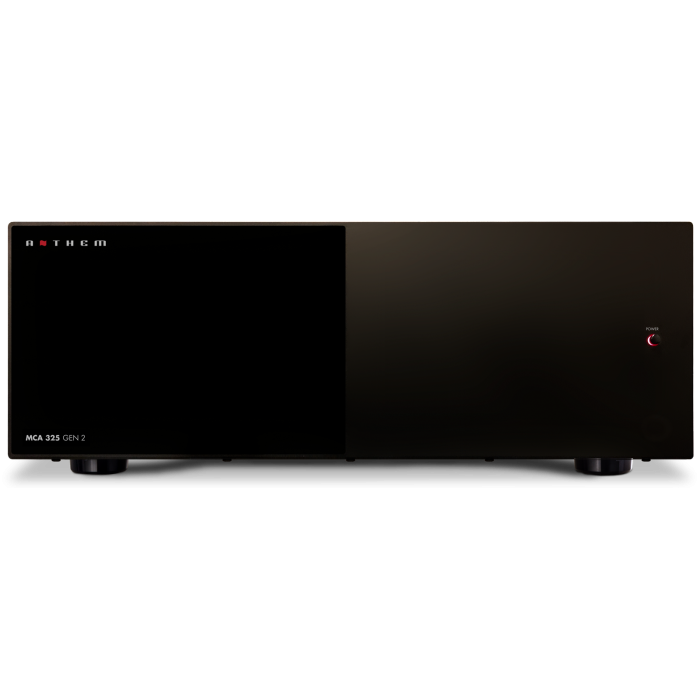

Anthem MCA 325 Gen2 AV Power Amplifier
This item isn't available to buy online. Please contact us to order or for more information.
You can earn loyalty points on every order you place on this website. If you select to create an account at checkout, your loyalty points will be saved and you can use these to discount future orders online.
Each product page shows you how many loyalty points you can earn when you order that item. Essentially, for each £1 you spend, you earn 1 loyalty point and for every 1 point earned, 1p will be added to your loyalty point balance (this is the same as some of the UK's biggest loyalty point cards). So for example, if you spend £500, you'll earn 500 loyalty points which can be used to discount a future order by £5.00.
Available - Usually ships within 2-3 days
Features
| Manufacturer | Anthem |
|---|---|
| Warranty The length of time your product is protected by warranty | 3 Years |
Tech Specs
- Impedance: 8/4/2o – 225/400/600W
- THD @100W: @1kHz/20kHz, 0.001%/0.015%
- Freq Resp (20 Hz-kHz): 8/4O ±0.1dB, 2O - ±0.2dB
- SNR, IEC, ref.225W: 120dB
- Power Bandwidth, -3 dB @200W into 8O: 90kHz
- Slew Rate: 30 V/μs
- Channel Separation, 100 Hz to kHz: >65 dB
- Input Impedance (RCA/XLR): 10kΩ / 15kΩ
- Sensitivity: 225W into 8 ohms: 1.5 Vrms
- Voltage Gain: 29 dB
Relay Trigger (3.5mm Mono Jack)
- In: Single-Ended Balanced
- Out: Speaker Binding Posts
IMD @100W:
- ITU-R (19kHz + 20kHz) – 0.0005%
- SMPTE (60 Hz + 7 kHz) – 0.002%
Power Consumption:
- Standby: 1.4 W
- Idle: 47 W
- Typical: 350 W
- High Output: 750 W
Power Requirements:
- 120V: single phase AC, 108V, 132 @60Hz
- 220-240V: single phase AC, 198V, 264V @50Hz
General
- Dimensions (HWD): 16.9 x 43.9 x 46cm
- Height with Rackmount kit: 4U
- Weight: 19.5 kg
Description
Anthem MCA 325 2nd Generation is a 3-channel AV Power Amplifier made to complement the AVM pre-amplifier range. Anthem’s 2nd generation MCA Series delivers lower THD (for a cleaner, purer sound and lower noise for extremely quiet background hum whilst in use.
With a complete redesign internally, Anthen have also redesigned the external features in a sturdy and stylish unit that matches the AVM range wonderfully.
MCA Range
The MCA-325 Gen 2 is a 3-channel power amplifier that delivers 225 watts per-channel; it sits above the MCA 225 and below the MCA 525 which is capable of up to 5 channels. Anthem MCA Gen 2 amplifiers are designed, engineered and hand-built in Canada.
Anthem have designed the MCA Gen 2 range to be like no other amplifier range in the world by installing custom low noise high-power Toroidal transformers; high-current bipolar output transistors; oversized aluminium heatsinks; high-quality filter capacitors; advanced power supply regulators; patented auto-on/off circuitry and superior craftsmanship.
What’s New in MCA-325 Gen 2?
The 2nd generation MCA range has been completely redesigned. There is reduced cabling to help create a much smoother circuit path to maintain an unobstructed audio performance. And in keeping with the AVM range the use of low-flux Toroidal transformers and improved input transistors are incorporated to provide a greater sense of transparency, even with dynamically complex material.
The MCA-325 GEN 2 Amplifier now only uses 1.4 Watt in standby mode, 750 watts at high output; it’s a much a ‘greener’ way forward. And as with all Anthem amplifiers, they can be switched on manually, via trigger, or by sensing an input signal.
Advanced Load Monitoring
Exclusive ALM technology monitors internal temperature, current and voltage to ensure safe and uninterrupted long-term operations. This is in place just in case a fault should arise. In this unlikely situation, unaffected channels continue to play and all-channel operation resumes automatically once conditions are back to normal.
