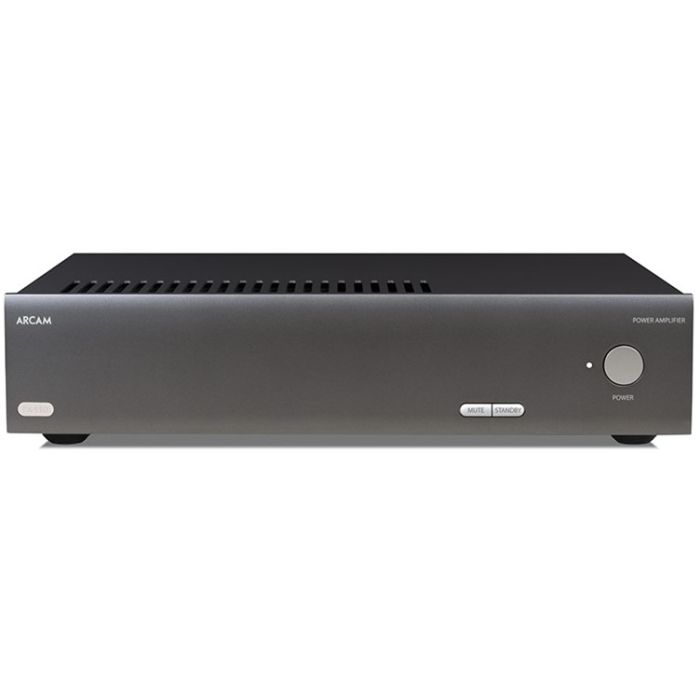

Arcam PA410 Four Channel Power Amplifier
You can earn loyalty points on every order you place on this website. If you select to create an account at checkout, your loyalty points will be saved and you can use these to discount future orders online.
Each product page shows you how many loyalty points you can earn when you order that item. Essentially, for each £1 you spend, you earn 1 loyalty point and for every 1 point earned, 1p will be added to your loyalty point balance (this is the same as some of the UK's biggest loyalty point cards). So for example, if you spend £500, you'll earn 500 loyalty points which can be used to discount a future order by £5.00.
Available - Usually ships within 2-3 days
Features
| Manufacturer | Arcam |
|---|---|
| Warranty The length of time your product is protected by warranty | 2 years standard (5 years on registration) |
Tech Specs
Continuous power output at 0.2% THD per channel
Four channels driven 4Ω / 8Ω, 20Hz – 20kHz: 70W / 50W
Two channels driven 4Ω / 8Ω, 20Hz – 20kHz: 90W / 60W
Harmonic distortion, 80% power, 8Ω at 1kHz: 0.003%
Inputs
Input sensitivity: 50W / 8Ω 600mV RMS
Signal/Noise ratio: (A-wtd) 50W / 8Ω 105dB
Input impedance: 10kΩ
Frequency response: 20 - 20kHz +/-0.05dB
General
Mains voltage: 110–120V or 220–240V, 50–60Hz
Power consumption: (maximum) 700W
Power consumption: (idle, typical) 90W
Power consumption: (standby) <0.5W
Dimensions: W x H x D 433x325x105mm
Weight: (net) 10kg
Description
The Arcam PA410 Four Channel Power Amplifier is a high-performance audio component designed to provide exceptional power and clarity in multi-channel setups. Part of Arcam’s HDA range, the PA410 reflects the company’s dedication to delivering the best audio quality possible, drawing on their decades of expertise in the field.
This amplifier provides four channels of Class AB amplification, offering 70W per channel, making it an ideal choice for high-fidelity home theater systems and multi-room audio applications. Engineered with premium components, the PA410 is built to enhance your listening experience with precise, distortion-free sound reproduction.
Class AB Amplification for Precision and Control
At the heart of the Arcam PA410 is its Class AB amplification, which delivers the perfect balance between power and control. With 70W per channel at 8 ohms, the PA410 ensures that every speaker in your system receives clean, accurate power.
This amplification class is renowned for offering better sound quality than Class D and Class A, thanks to its ability to handle both low and high-frequency signals with low distortion. Whether used for music or cinema, the PA410 effortlessly handles complex audio passages, offering impressive dynamics and clarity without compromising efficiency or performance.
Premium Components for Unmatched Sound Quality
The Arcam PA410 is built with top-tier components designed to deliver a superior listening experience. The amplifier features a toroidal transformer, known for its efficiency and low electromagnetic interference, ensuring a clean power supply that enhances sound quality.
Its acoustically damped chassis minimizes vibrations, reducing potential noise interference and improving overall performance. Additionally, the paralleled transistor output stages further reduce distortion, ensuring that the PA410 faithfully reproduces music with remarkable detail and authenticity.
These high-quality components come together to provide a high level of sound accuracy and depth that sets the PA410 apart from other amplifiers in its class.
Versatility and Efficiency in a Compact Design
The Arcam PA410 offers a range of useful features for versatility and ease of integration into any audio system. With the capability to deliver 70W per channel at 8 ohms in four-channel operation, and 90W per channel at 4 ohms in two-channel operation, it is adaptable to various speaker configurations.
The PA410 includes RS232 control, making it suitable for integration into custom home automation systems. Despite its powerful output, the amplifier is designed with energy efficiency in mind, consuming minimal power in idle and standby modes.
Its compact size, combined with its robust performance, makes the PA410 a great choice for those seeking powerful amplification without sacrificing space or energy efficiency.
Key Features
- 4 Channel Power Amplifier
- 4 x 70W Class AB amplification (all channels driven)
- Toroidal transformer
- Ethernet, RS232 contro
