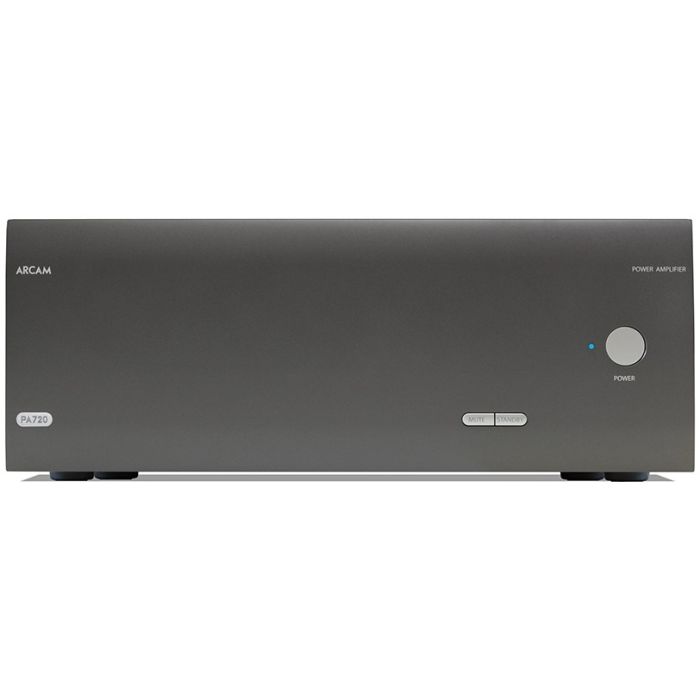

Arcam PA720 Seven Channel Power Amplifier
You can earn loyalty points on every order you place on this website. If you select to create an account at checkout, your loyalty points will be saved and you can use these to discount future orders online.
Each product page shows you how many loyalty points you can earn when you order that item. Essentially, for each £1 you spend, you earn 1 loyalty point and for every 1 point earned, 1p will be added to your loyalty point balance (this is the same as some of the UK's biggest loyalty point cards). So for example, if you spend £500, you'll earn 500 loyalty points which can be used to discount a future order by £5.00.
Available - Usually ships within 2-3 days
Features
| Manufacturer | Arcam |
|---|---|
| Warranty The length of time your product is protected by warranty | 2 years standard (5 years on registration) |
Tech Specs
Continuous power output
- Seven channels driven, 4O / 8O, 20Hz – 20kHz 140W / 100W
- Five channels driven, 4O / 8O, 1kHz 175W / 110W
- Two channels driven, 4O / 8O, 1kHz 225W / 140W
- Harmonic distortion, 80% power, 8O at 1kHz 0.002%
- Inputs
- RCA Type XLR Type
- Input sensitivity 50W / 8O 800mV RMS 1.6V RMS
- Signal/Noise ratio (A-wtd) 50W / 8O 105dB
- Input impedance 10kO
- Frequency response 20 - 20kHz +/-0.05dB
General
- Mains voltage 110–120V or 220–240V, 50–60Hz
- Power consumption (maximum) 1.5kW
- Power consumption (idle, typical) 90W
- Power consumption (standby) <0.5W
- Dimensions W x H x D 433 x 425 x 177mm
- Weight (net) 18kg
Description
Arcam PA720 Seven Channel Power Amplifier joins the HDA range of immersive audio products for home cinemas.
With 7 channels at a powerful 140W and class G amplification, PA720 is designed to deliver a broad and engaging sound
Home Cinema Enhanced
Manufactured by the British powerhouse audio brand Arcam, PA720 features only the best components to reduce vibrations and distortion including a toroidal based power supply.
A multi channel power amplifier, the PA720 is perfect for intensifying home cinema speaker systems.
Key Features
- 7 Channel Power Amplifier
- 7 x 140W Class G amplification (all channels driven)
- Class G amplification with 20W of Class A operation
- Toroidal transformer
- Ethernet, RS232 control
- Switchable RCA or balanced XLR inputs
