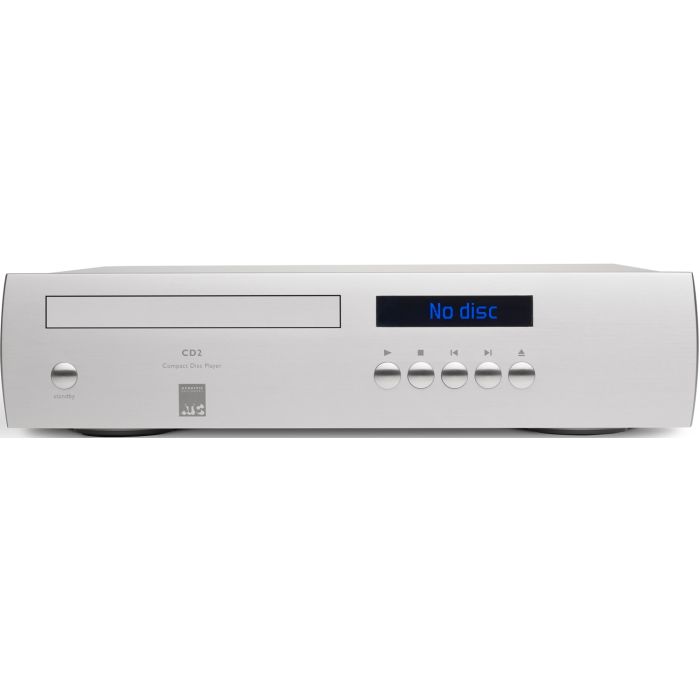

ATC CD2 CD Player
This item isn't available to buy online. Please contact us to order or for more information.
You can earn loyalty points on every order you place on this website. If you select to create an account at checkout, your loyalty points will be saved and you can use these to discount future orders online.
Each product page shows you how many loyalty points you can earn when you order that item. Essentially, for each £1 you spend, you earn 1 loyalty point and for every 1 point earned, 1p will be added to your loyalty point balance (this is the same as some of the UK's biggest loyalty point cards). So for example, if you spend £500, you'll earn 500 loyalty points which can be used to discount a future order by £5.00.
Usually ships within 3-4 weeks. Order now to reserve your place in the queue
Features
| Manufacturer | ATC Speakers |
|---|---|
| Warranty The length of time your product is protected by warranty | 6 Years |
Tech Specs
- THD: 1/10kHz <0.0015%/<0.003% (-90/96dB)
- Freq Response: (20Hz–20kHz): +/- 0.2dB
Pre-amp
- Freq Response (-3dB): <2 Hz – > 280kHz
- Distortion (1kHz): <0.0008% / 102dB
- Sensitivity (2V): Aux 600mV, 3.5mm 400mV
- Max Out: Phono 9.2VRMS, XLR 18.4VRMS
- Overload Capacity: 13dB
- Impedance: 14k/10 Ohms (in/out)
- Wide Band SNR: >96dB
- DIN SNR: >108dB, IEC “A” >112dB
- Absolute Phase: Phono Zero Degrees
- XLR Zero Degrees, Pin 2 Hot
- Output XLR CMRR (100Hz – 10kHz): >60dB
Optical/Coaxial
- THD: <0.001% @44.1-192kHz (192kHz via coax)
- Optical/Coaxial: 16bit and 24bit
USB DIGITAL
- Distortion: <0.001% (@44.1- 384kHz)
- USB: 16bit, 24bit and 32bit
DSD
- Freq Response -1dB: <10 – 50k Hz
- Windows DSD64, DSD128 and DSD256
- MacOS DSD64 and DSD128
General
- Dimensions (HWD): 90 x 445 x 330mm
- Weight: 7kg (15.4lbs)
Description
ATC CD2 CD Player is a 2/3 width compact and high-performance CD digital audio source delivering excellent performance and compatibility with a broad range of high-quality electronics while styling assures seamless integration with other equipment.
ATC Legacy
CD2 CD player is designed to work seamlessly with SIA2-100 driving high-quality passive speakers to upgrade existing sources or amplifiers. These are the latest addition to ATC’s formidable range of top-performance audio electronics and speaker systems made for studio and hi-fi purposes.
Engineering
CD2 uses the acclaimed TEAC 5020A-AT transport which easily passed ATC’s arduous tests. The AKM DAC works together with an output filter stage encompassing a digital filter and patented low-noise multiple feedback analogue filter.
CD Player
Many music lovers increasingly rely on file-based or streaming systems but also own large CD collections. For high quality playback for both mediums, ATC offers the versatility of a “stand alone” player instead of integrate a player within the SIA2-100.
Gain Stages
The CD2’s four gain stages, each comprising 11 discrete components, provide a “true” differential output for the left and right channels. The output stages are configured as unity gain complementary compound (Sziklai) pairs, biased in class A. The positive and negative drivers are arranged in parallel to ensure that signal delays and phase shifts on each side are similar.
Circuit Design
Nine discretely calibrated power regulators are used in the circuit design, showcasing ATC’s preference for local power regulation and decoupling to reduce distortion and noise. The coax digital output uses a high-performing isolation transformer to reduce possible hum loops if both audio and digital signals are linked to the same unit. PCB track lengths are as short as possible, and grounding and screening is thoroughly applied.
Connectivity
The ATC CD2 Stereo CD Player provides a line-level stereo output on RCA phono sockets, together with true differential Left and Right outputs on XLR sockets. Digital S/PDIF Outputs are available on Optical Toslink and Coaxial outputs. Operation is through 5 push buttons on the front panel, which is duplicated on the ATC remote control handset supplied.
Construction
CD2 chassis is built to be sturdy, rigid and well damped with precision-cut 12mm aluminium front panels finished in brushed and anodised ‘titanium’ silver.
Key Features
- High performance TEAC CD Transport
- Premium AKM 32-bit DAC
- Digital Coaxial and TOSLINK outputs
- Balanced XLR and Unbalanced RCA outputs
- ATC Discrete class-A output buffers
- 6 year warranty (2 years on CD mechanism)
- Handmade in England
