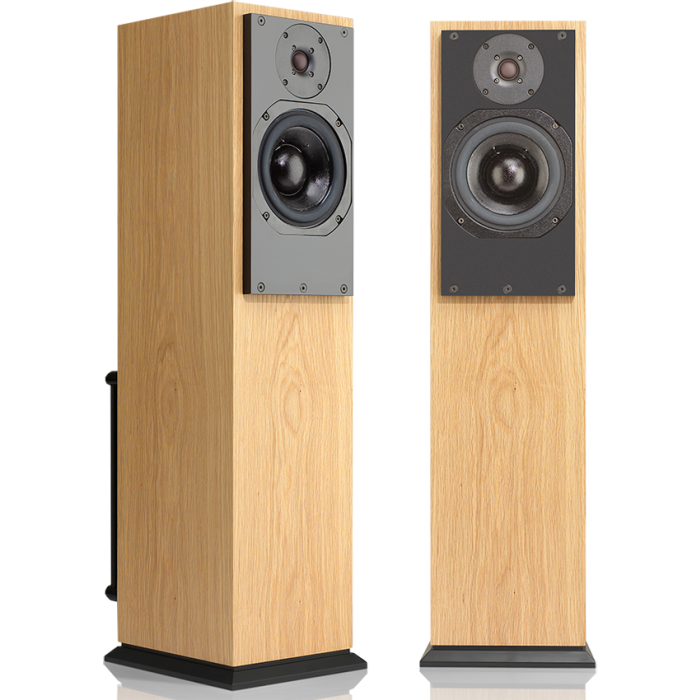

ATC SCM20ASLT Active Speakers (Pair)
You can earn loyalty points on every order you place on this website. If you select to create an account at checkout, your loyalty points will be saved and you can use these to discount future orders online.
Each product page shows you how many loyalty points you can earn when you order that item. Essentially, for each £1 you spend, you earn 1 loyalty point and for every 1 point earned, 1p will be added to your loyalty point balance (this is the same as some of the UK's biggest loyalty point cards). So for example, if you spend £500, you'll earn 500 loyalty points which can be used to discount a future order by £5.00.
Features
| Manufacturer | ATC Speakers |
|---|---|
| Warranty The length of time your product is protected by warranty | 6 Years |
Tech Specs
Drivers
- HF Drive Unit: 25mm Neodymium
- Mid/LF Drive Unit: 150mm
Performance
- Freq Response (±2dB): 80Hz–17kHz
- Freq Response (±6dB): 60Hz–22kHz
- Matched Response: ±0.5dB
- Horizontal Dispersion: ±80° Coherent
- Vertical Dispersion: ±10° Coherent
- Crossover Frequency: 2.8kHz
- Connectors: Male XLR
- Max SPL: 108dB
Filters
- Active: 2nd Order Linkwitz-Riley
- Passive: 2nd Order Linkwitz-Riley
General
- Amplifier Output: 200w (LF), 50w (HF)
- Dimensions (HWD): 990 x 239 x 365mm
- Weight: 40kg
Description
Also available in a passive version, the ATC SCM20A SL Tower Active Speaker features a full SL spec bass driver with a 75mm integral soft dome.
Bass Reproduction
The ATC SCM20A SL tower active speaker is powered with the ATC Grounded Source Bi-amplifier. The bass/mid driver is powered with 200 watts, while the tweeter features 50 watts of class AB power. Momentary gain reduction circuitry is featured in each amplifier which prevents unwanted noise from overdrive and shields the drive units.
Reduced Distortion
ATC's unique SL technology in the magnet assembly ensures far less distortion in the moving coil drive units. Time Domain Distortion is significantly reduced by the material used to manufacture the dome and cone.
ATC uses polyester wave material that is “acoustically dead” along with their own unique formulation.
Wide & Even Dispersion
Includes 9kg optimised motor assembly and a built-in handcrafted precision flat wire coil, overload protection and active filters. The combination o these features results in expansive, even dispersion of sound for highly accurate imaging.
