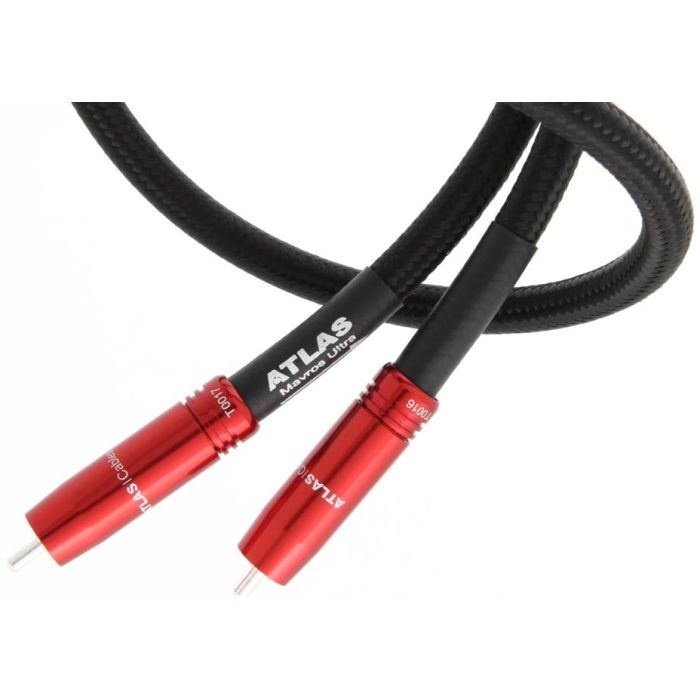

Atlas Mavros Ultra Digital Cable
You can earn loyalty points on every order you place on this website. If you select to create an account at checkout, your loyalty points will be saved and you can use these to discount future orders online.
Each product page shows you how many loyalty points you can earn when you order that item. Essentially, for each £1 you spend, you earn 1 loyalty point and for every 1 point earned, 1p will be added to your loyalty point balance (this is the same as some of the UK's biggest loyalty point cards). So for example, if you spend £500, you'll earn 500 loyalty points which can be used to discount a future order by £5.00.
Features
| Manufacturer | Atlas Cables |
|---|---|
| Warranty The length of time your product is protected by warranty | 5 years (on registration) |
Tech Specs
- Construction: Co-ax (1/0.7 Monofilament + 18/0.14)
- Material: Silver Plated OFC
- Dielectric: Microporous PTFE (Teflon™)
- Screen: Braid OFC with Al Mylar™, 100%
- Capacitance: 54.35 pF/m
- Inductance: 0.230 µH/m
- Resistance: 0.065 Ohms/m
- Impedance: 77.43 Ohm at (1MHz)
- VOP: 0.81
- Outside Diameter: 8.5mm
Description
Atlas Mavros Ultra Digital Cable is a follow on to the hugely successful Mavros Ultra RCA. It is a finely engineered wide banded cable that uses a silver-plated copper conductor for a superior sound quality and technical brilliance when it comes to preventing noise interference.
Siver-Plated Copper Conductor
The conductor of the Mavros Ultra Digital Cable is comprised of 18 siver plated pure copper strands of wire which are insulated by by micro-porous Teflon PTFE.
Greater Signal Strength
Due to the new and improve Teflon PTFE, a lower level of dielectric constant is achieved, going from the previous 2.1 to a new figure of 1.5. What this achieves is that higher speed signals are transmitted, and a more dynamic and precise range is delivered.
75 Ohms Termination
Mavros Ultra Digital Cable has a 75 Ohms termination impedance at 1 MHz with a low conductor to conductor charging ability of close to 50pf per metre. This product ensures accurate transmission of high speed digital signals.
Key Features
- RCA Plugs
- OFC Copper
- PTFE
- Co-ax
