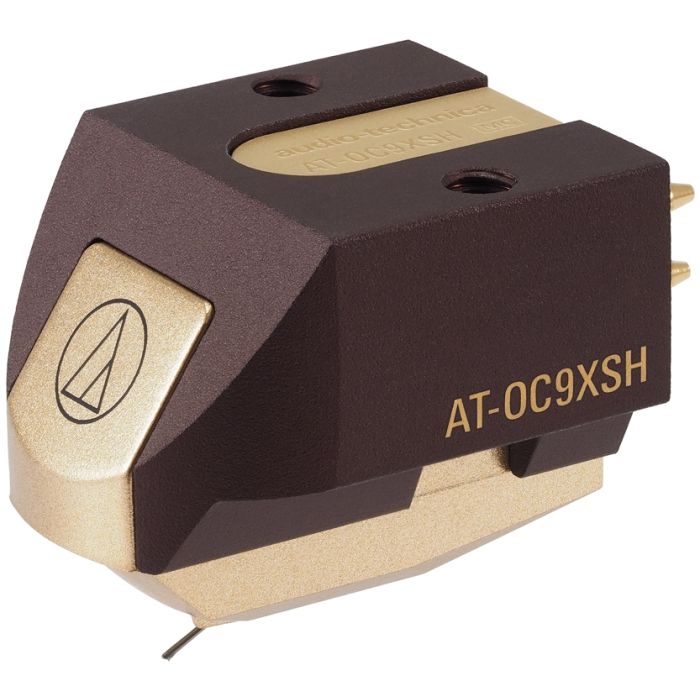

Audio Technica AT-OC9XSH MC Phono Cartridge
You can earn loyalty points on every order you place on this website. If you select to create an account at checkout, your loyalty points will be saved and you can use these to discount future orders online.
Each product page shows you how many loyalty points you can earn when you order that item. Essentially, for each £1 you spend, you earn 1 loyalty point and for every 1 point earned, 1p will be added to your loyalty point balance (this is the same as some of the UK's biggest loyalty point cards). So for example, if you spend £500, you'll earn 500 loyalty points which can be used to discount a future order by £5.00.
Only 2 in stock, order now
Features
| Manufacturer | Audio Technica |
|---|---|
| Warranty The length of time your product is protected by warranty | 2 Years |
Tech Specs
- Type: Dual Moving Coil
- Body Material: Aluminum
- Frequency Response: 20-47,000 Hz
- Channel Separation: 27 dB (1 kHz)
- Vert Track: 20°, 1.8-2.2g (2g stnd)
- Recommended Load: Min. 100 ohms
- Impedance: 12 ohms (1kHz) (Coil/DC)
- Coil Inductance: 25mH (1 kHz)
- Output: 0.4mV (@1kHz, 5cm/s)
- Channel Balance: 1.0dB (1 kHz)
- Stylus Shape: Shibata
- Stylus Type: Nude square shank
- Stylus Curvature: 2.7 x 0.26 mil
- Cantilever: 0.28mm diameter nude boron
- Static: 20 x 10-6 cm/dyne
- Dynamic: 16 x 10-6cm/dyne (100 Hz)
- Wire Used for Coil: PCOCC
- Terminal Pins: Brass
- Mount: Half-inch
- Mounting Feature: Threaded body
- Dimensions (HWD): 17.3 × 16.8 × 25.7mm
- Weight: 7.6 g (0.3 oz)
Description
Audio Technica AT-OC9XSH Dual MC Phono Cartridge features a shibita stylus with nude square shank that distinguishes it from the rest of the OC9X series cartridges, specially built for extraordinary channel separation.
PCOCC Coil
Pure Copper Ohno Continuous Casting coils is employed to attain a perfect audio reproduction and are configured in a reverse V-shape that results in lower pressure exertion on the stylus to reduce distortion.
Audio Quality
The robust aluminum build reinforces sound quality and lowers resonance, a neodymium magnet and yoke of premium permendur construction that drastically raise magnetic energy, and nude Shibata stylus on a boron cantilever that traces the record groove with ultimate accuracy for rich, full-scope audio and high transient response. The cartridge body is pre-threaded so you can mount it on a headshell or integral tonearm effortlessly using only two screws without the need for nuts.
Key Features
- Dual MC design with independent L/R coils for outstanding channel separation
- Aligned coils in a reverse V-shape which exerts less pressure on the stylus
- The cartridge body is pre-threaded for mounting on headshell or integral tonearm
- Nude Shibata stylus and boron cantilever with exact tracking and high transient response
- A neodymium magnet and permendur yoke provide dramatically increased magnetic energy
- Aluminum body lowers unwanted vibration for reduced resonance and better audio
- Pure Copper by Ohno Continuous Casting process for coils achieve pure signal transfer
