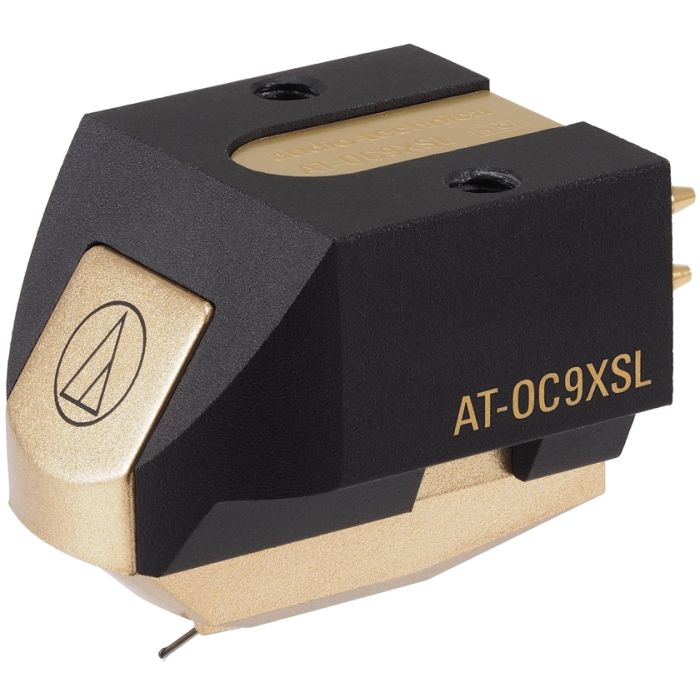

Audio Technica AT-OC9XSL MC Phono Cartridge
You can earn loyalty points on every order you place on this website. If you select to create an account at checkout, your loyalty points will be saved and you can use these to discount future orders online.
Each product page shows you how many loyalty points you can earn when you order that item. Essentially, for each £1 you spend, you earn 1 loyalty point and for every 1 point earned, 1p will be added to your loyalty point balance (this is the same as some of the UK's biggest loyalty point cards). So for example, if you spend £500, you'll earn 500 loyalty points which can be used to discount a future order by £5.00.
Only 2 in stock, order now
Features
| Manufacturer | Audio Technica |
|---|---|
| Warranty The length of time your product is protected by warranty | 2 Years |
Tech Specs
- Type: Dual Moving Coil
- Body Material: Aluminum
- Frequency Response: 20-50,000 Hz
- Channel Separation: 28 dB (1 kHz)
- Vert Track: 20°, 1.8-2.2g (2g stnd)
- Recommended Load: Min. 100 ohms
- Impedance: 12 ohms (1kHz) (Coil/DC)
- Coil Inductance: 25mH (1 kHz)
- Output: 0.4mV (@1kHz, 5cm/s)
- Channel Balance: 0.5 dB (1 kHz)
- Stylus Shape: Special Line Contact
- Stylus Type: Nude rectangular shank
- Stylus Curvature: 1.5 x 0.28 mil
- Cantilever: 0.28mm diameter nude boron
- Static: 22 x 10-6 cm/dyne
- Dynamic: 18 x 10-6cm/dyne (100 Hz)
- Wire Used for Coil: PCOCC
- Terminal Pins: Brass
- Mount: Half-inch
- Mounting Feature: Threaded body
- Dimensions (HWD): 17.3 × 16.8 × 25.7mm
- Weight: 7.6 g (0.3 oz)
Description
Audio Technica AT-OC9XSL Dual MC Phono Cartridge features a special line contact stylus that has been designed specifically for extraordinary channel separation.
PCOCC Coil
Ohno Continuous Casting Pure Copper coils guarantee a flawless audio transmission and are arranged in a reverse V-shaped configuration to exert lower pressure on the stylus and consequently mininise distortion.
Audio quality
The sturdy aluminum body reinforces the sound quality and lowers resonance, a neodymium magnet and high-end permendur yoke that significantly raise magnetic energy, and nude special line contact stylus on a boron cantilever that tracks the record groove with superior accuracy for rich, full-range audio and high transient response. The cartridge body is pre-threaded enabling mounting on a headshell or integral tonearm with just two screws; no nuts needed.
Key Features
- Dual MC design with independent coils for both channels providing outstanding channel separation
- The coils are aligned in a reverse V-shaped formation, which exerts less pressure on the stylus
- The cartridge body is pre-threaded enabling it to be mounted onto the headshell or integral tonearm
- Nude Special Line Contact stylus and boron cantilever with accurate tracking and high transient response
- A neodymium magnet and permendur yoke provide dramatically increased magnetic energy
- Aluminum body minimizes unwanted vibration for reduced resonance and superior audio reproduction
- Pure Copper by Ohno Continuous Casting process (PCOCC) is used for coils to achieve pure signal transfer
