Audio Technica AT-VM520xEB/H MM Phono Cartridge w/ Headshell
You can earn loyalty points on every order you place on this website. If you select to create an account at checkout, your loyalty points will be saved and you can use these to discount future orders online.
Each product page shows you how many loyalty points you can earn when you order that item. Essentially, for each £1 you spend, you earn 1 loyalty point and for every 1 point earned, 1p will be added to your loyalty point balance (this is the same as some of the UK's biggest loyalty point cards). So for example, if you spend £500, you'll earn 500 loyalty points which can be used to discount a future order by £5.00.
Only 1 in stock
Features
| Warranty The length of time your product is protected by warranty | 2 Years |
|---|---|
| Manufacturer | Audio Technica |
Tech Specs
- Type - VM
- Frequency response - 20 to 20,000 Hz
- Output voltage - 5.0 mV (1 kHz, 5 cm/sec.)
- Channel separation - 24 dB (1 kHz)
- Output balance - 1.5 dB (1 kHz)
- Tracking force - 1.8 to 2.2 g (2.0 g standard)
- Coil impedance - 3.2 k ohms (1 kHz)
- DC resistance - 750 ohms
- Recommended load impedance - 47 k ohms
- Recommended load capacitance - 150 to 250 pF
- Coil inductance - 480 mH (1 kHz)
- Static compliance - 23 × 10-6 cm/dyne
- Dynamic compliance - 7 × 10-6 cm/dyne (100 Hz)
- Stylus - Elliptical bonded
- Stylus curvature radius - 0.3 × 0.7 mil
- Cantilever - Aluminum pipe
- Vertical tracking angle - 20°
- Dimensions - 67.4 mm (2.7”) × 18.5 mm (0.73”) × 21.5 mm (0.85”) (H × W × D)
- Weight - 18.3 g (0.65 oz)
Description

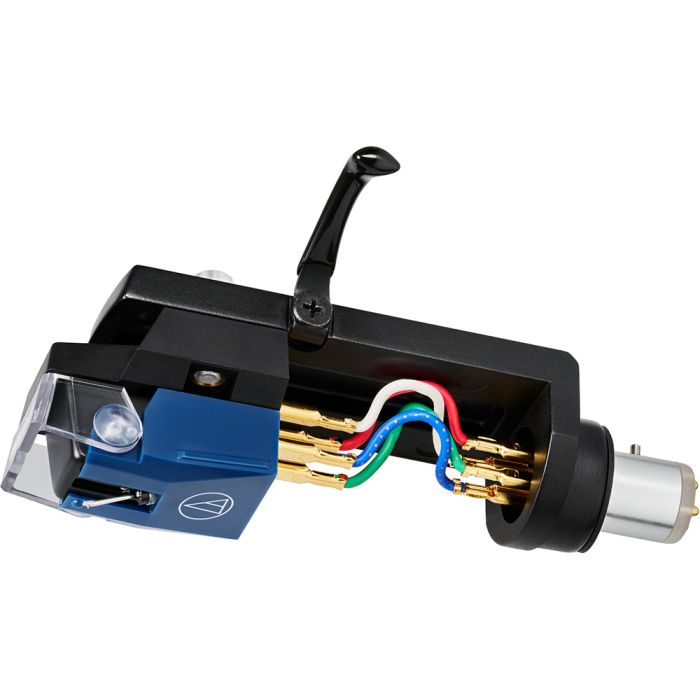

The Audio-Technica AT-VM520xEB/H MM Phono Cartridge w/ Headshell is a complete, plug-and-play solution for turntable users looking to upgrade their sound with precision and ease. This combo kit pairs the AT-VM520xEB dual moving magnet cartridge with the lightweight AT-LT10 universal ½"-mount headshell.
As part of Audio-Technica’s refined VMx series, the AT-VM520xEB delivers rich, responsive audio reproduction with enhanced sensitivity to dynamic musical expression. Designed to closely replicate the geometry of the original cutting head, this cartridge captures sound with accuracy and depth. Whether you're diving into classic rock or smooth jazz, this combo provides an elevated listening experience straight out of the box.
Elliptical Stylus and Efficient Coil Design for Superior Sound
At the core of the AT-VM520xEB cartridge is a bonded 0.3 x 0.7 mil elliptical stylus that tracks grooves with precision, yielding clear high-frequency response and excellent detail. Its paratoroidal coil structure features two PCUHD® (Pure Copper Ultra High Drawability) coils per channel for improved efficiency and three-dimensional sound. A center shield plate minimizes crosstalk between the left and right channels, preserving a clean stereo image.
With slightly fewer coil turns than previous designs, the cartridge achieves faster transient response, delivering lifelike immediacy to every track. Housed in a durable low-resonance polymer body, this model ensures both longevity and consistently excellent performance.
Durable, Lightweight Headshell with Thoughtful Design Features
The included AT-LT10 headshell offers universal compatibility with standard 4-pin turntable arms and provides a stable foundation for the cartridge. Constructed from ultra-lightweight die-cast aluminum, the headshell minimizes unwanted vibration for clearer sound reproduction. Its elongated mounting slots allow for precise cartridge alignment and overhang adjustment, helping users achieve optimal playback performance.
Oxygen-free copper (OFC) lead wires ensure pristine signal transmission, while the slip-resistant finger lift provides precise control when lowering the stylus onto a record. Together, the headshell and cartridge offer both technical excellence and user-friendly design for audiophiles at any experience level.
Easy Installation, Upgrade Flexibility, and Universal Compatibility
The Audio-Technica AT-VM520xEB/H combo kit is designed for simple installation, with threaded inserts allowing easy mounting using just two screws—no nuts required. The V-cut stylus protector not only safeguards the stylus but also acts as a visual guide when cueing records. Like other VMx series cartridges, it supports interchangeable styli (excluding mono models), enabling experimentation with different sound signatures or simple stylus replacements as needed.
This versatility makes it an ideal choice for anyone from beginners to serious vinyl collectors. Compatible with any standard turntable headshell that accepts ½" cartridges, this kit combines precision, flexibility, and convenience in one well-crafted package.
