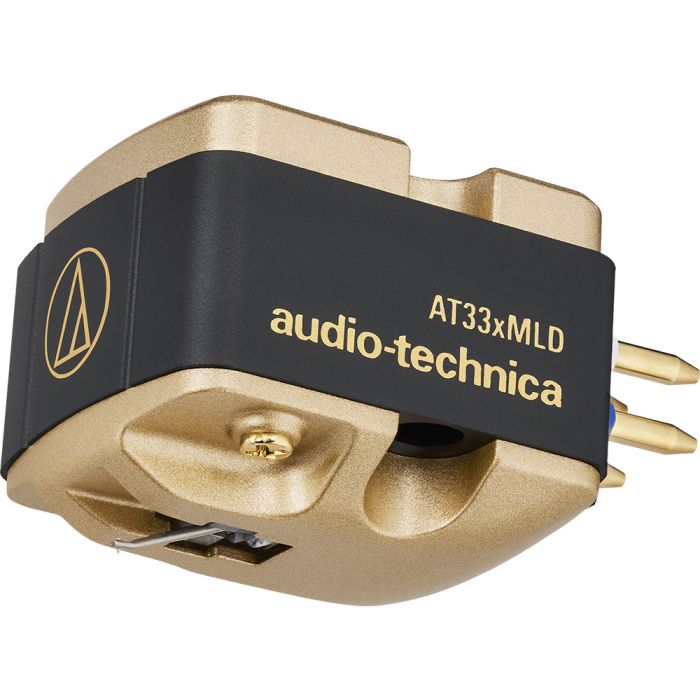

Audio Technica AT33xMLD MC Phono Cartridge
You can earn loyalty points on every order you place on this website. If you select to create an account at checkout, your loyalty points will be saved and you can use these to discount future orders online.
Each product page shows you how many loyalty points you can earn when you order that item. Essentially, for each £1 you spend, you earn 1 loyalty point and for every 1 point earned, 1p will be added to your loyalty point balance (this is the same as some of the UK's biggest loyalty point cards). So for example, if you spend £500, you'll earn 500 loyalty points which can be used to discount a future order by £5.00.
Only 1 in stock
Features
| Warranty The length of time your product is protected by warranty | 2 Years |
|---|---|
| Manufacturer | Audio Technica |
Tech Specs
- Frequency response: 20 to 42,000 Hz
- Channel separation: 27 dB (1 kHz)
- Vertical tracking angle: 19°
- Tracking force: 1.8 to 2.2 g (2.0 g standard)
- Recommended load impedance: ≥ 100 ohms (with head amplifier connected)
- Coil impedance: 12 ohms (1 kHz)
- DC resistance: 12 ohms
- Coil inductance: 26 μH (1 kHz)
- Output voltage: 0.4 mV (1 kHz, 5 cm/sec.)
- Output balance: 1.0 dB (1 kHz)
- Stylus shape: Nude Microlinear
- Cantilever: Duralumin tapered pipe
- Static compliance: 21 × 10⁻⁶ cm/dyne
- Dynamic compliance: 6 × 10⁻⁶ cm/dyne (100 Hz)
- Dimensions (H × W × D): 16.1 × 16.6 × 26.1 mm (0.63” × 0.65” × 1.0”)
- Accessories included: Non-magnetic screwdriver; Brush; Washer × 2; Cartridge installation screws (M2.6) (8 mm × 2, 10 mm × 2, 13 mm × 2); Protector
- Threaded hole: M2.6 × 2
- Stylus curvature radius: 2.2 × 0.12 mil
- Type: MC (Moving Coil)
- Weight: 10.1 g (0.36 oz)
Description
The Audio Technica AT33xMLD MC Phono Cartridge represents the latest advancement in the venerable AT33 Series, bringing enhanced warmth and fullness to your music collection. This extensively updated cartridge incorporates technological and material improvements, including the first use of die-cast zinc at the cartridge base to suppress unwanted resonance and improve expressiveness in the mid-to-low frequency range.
Combined with aluminum and high-rigidity polymer, the composite body ensures balanced sound reproduction across the audio spectrum. The AT33xMLD is capable of revealing intricate musical details, making it ideal for rock and jazz records, particularly those from the 1950s, 1960s, and 1970s. Every musical nuance is presented with clarity, allowing for immersive and engaging playback.
Microlinear Stylus and Duralumin Cantilever
At the heart of the AT33xMLD is a microlinear nude stylus mounted on a rigid duralumin tapered pipe cantilever. This combination enables highly precise tracking and accurate reproduction of musical passages. The cantilever is paired with a newly developed suspension mechanism and rubber damper system, slightly lowering the dynamic compliance to produce more substantial mid-low frequencies.
This design enhances responsiveness, allowing instruments and vocals to sound warm, full-bodied, and realistic. The cartridge excels at reproducing complex musical textures, ensuring that every instrument or vocal line is clearly distinguished. Whether playing intricate jazz arrangements or high-energy rock tracks, the AT33xMLD delivers natural sound with depth and refinement.
Advanced Moving Coil Technology
The AT33xMLD features a dual moving coil design with independent left and right PCOCC coils positioned at the cantilever’s fulcrum to ensure pure signal transmission for each channel. A neodymium magnet and permendur yoke maximize energy efficiency for responsive, high-resolution playback.
The nude microlinear stylus tracks record grooves more accurately than conventional elliptical or conical styli, while the duralumin cantilever provides excellent high-frequency control. The cartridge body’s layered construction of die-cast zinc, aluminum, and polymer reduces resonance and ensures balanced tonal reproduction.
Threaded mounting holes simplify installation on a wide range of tonearms, making the AT33xMLD versatile and compatible with many turntable setups.
Handcrafted Japanese Excellence
Every AT33xMLD MC Phono Cartridge is meticulously handcrafted in Japan, reflecting over six decades of Audio-Technica expertise in transducer design. Thick gold-plated terminal pins reduce contact resistance and enhance overall sound quality. The dual moving coil configuration, combined with a composite cartridge body and advanced cantilever design, produces a natural, warm, and detailed audio signature.
While the stylus assembly is not field-replaceable, Audio-Technica provides a Moving Coil Exchange Program for professional servicing. Each cartridge is carefully finished and tested to maintain consistent performance, ensuring that listeners receive a reliable, high-fidelity experience from every record played.
Specifications and Accessories
The AT33xMLD delivers a frequency response of 20 to 42,000 Hz and a channel separation of 27 dB at 1 kHz. Its tracking force ranges from 1.8 to 2.2 grams, with a standard 2.0 grams, and the stylus has a curvature radius of 2.2 × 0.12 mil. Measuring 16.1 × 16.6 × 26.1 millimeters and weighing 10.1 grams, the cartridge is lightweight and precise.
Included accessories feature a non-magnetic screwdriver, brush, washers, mounting screws, and a protective case. Designed for audiophiles seeking warm, expressive, and accurate sound, the AT33xMLD combines technological innovation, superior materials, and Japanese craftsmanship to deliver a truly remarkable phono cartridge experience.
