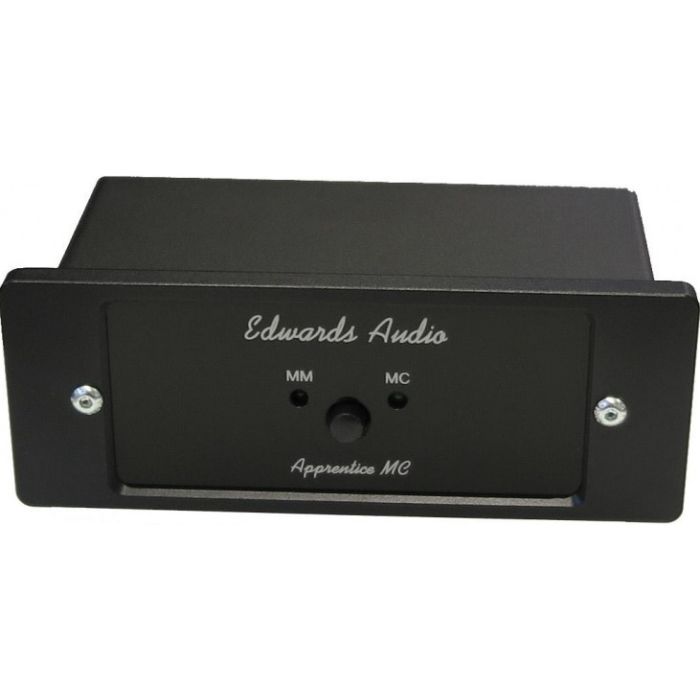

Edwards Audio Apprentice MC EQ Phono Stage
You can earn loyalty points on every order you place on this website. If you select to create an account at checkout, your loyalty points will be saved and you can use these to discount future orders online.
Each product page shows you how many loyalty points you can earn when you order that item. Essentially, for each £1 you spend, you earn 1 loyalty point and for every 1 point earned, 1p will be added to your loyalty point balance (this is the same as some of the UK's biggest loyalty point cards). So for example, if you spend £500, you'll earn 500 loyalty points which can be used to discount a future order by £5.00.
Available - Usually ships within 2-3 days
Features
| Manufacturer | Edwards Audio |
|---|---|
| Warranty The length of time your product is protected by warranty | 2 Years (10 Years on registration) |
Tech Specs
- Max Input MM: 75mV
- Gain: 40dB MM
- THD: <0.01% 1kHz
- SNR (MM) 5mV: -83dB
- RIAA accuracy: within 0.5dB
- Stereo separation: better than 66dB - 20-20kHz
- Input Loading MM: 47K with 150pF
- Dynamic Range: 110dB
- Output impedance: <10 Ohms
- Max output level: 7.5V RMS
- Dimensions (W x H x D): 4.5"x1.9"x3.5"
- Weight: 1 kg
- Power consumption: 1.5W
Description
Edwards Audio Apprentice EQ MC Phono Stage adapts the earlier Edwards Audio MM1 model in a new and improved design while retaining its predecessor's passive treble and active bass equalisation.
This high-performing model punches well above its weight by utilising a second stage amplifier to buffer the equalisation network and to ensure a low output impedance. Alongside this, the MC gain uses a third separate op-amp.
Sleek Construction, Intuitive Design
The Apprentice EQ MC phono stage is designed to be partnered with the brand's bespoke single rail DC regulated switch mode power supply. As a result, the requirement for expensive extrusion has been eliminated. A sleek 3mm black acrylic front panel and a 5mm machined aluminium frame completes the aesthetic of the model. In the front panel switch you will find MM or MC selection.
Sublime Sound Performance
The model delivers a near silent noise floor and 42dB gain in MM mode or 63dB gain in MC mode, so you can expect an audiophile level sound performance.
