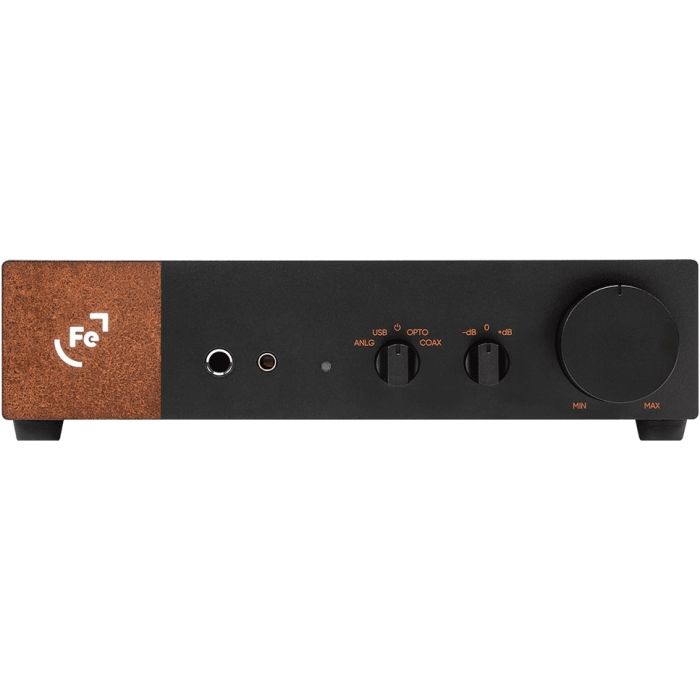

Ferrum Audio ERCO Gen 2 DAC and Headphone Amplifier
You can earn loyalty points on every order you place on this website. If you select to create an account at checkout, your loyalty points will be saved and you can use these to discount future orders online.
Each product page shows you how many loyalty points you can earn when you order that item. Essentially, for each £1 you spend, you earn 1 loyalty point and for every 1 point earned, 1p will be added to your loyalty point balance (this is the same as some of the UK's biggest loyalty point cards). So for example, if you spend £500, you'll earn 500 loyalty points which can be used to discount a future order by £5.00.
Available - Usually ships within 2-3 days
Features
| Manufacturer | Ferrum Audio |
|---|---|
| Warranty The length of time your product is protected by warranty | 3 Years |
Tech Specs
- Headphone output gain: balanced -5.8 dB, +6 dB, +17.8 dB; single ended -11.8 dB, 0 dB, +11.8 dB
- Operation: fully balanced, proprietary IC power amp
- Power inputs: 5.5/2.5 mm DC connector center positive; proprietary FPL 4-pin DC connector (FPL)
- Analog inputs: RCA (Consumer level; Pro option with future software update)
- Digital inputs: USB-C (all formats); S/PDIF optical (up to 24-bit/96 kHz, DoP64); Coaxial (up to 24-bit/192 kHz, DoP64)
- DAC chip: ESS Sabre ES9028PRO
- PCM sample rates: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 / 352.8 / 384 kHz
- DSD sample rates: 2.8224 / 3.072 / 5.6448 / 6.144 / 11.2896 / 12.288 MHz
- MQA: decoder and renderer
- DAC resolution: PCM up to 384k@32bit; DSD up to 256 (11.2 MHz / 12.2 MHz)
- Headphone jack outputs: balanced 4.4 mm (TRRRS); unbalanced 6.35 mm (TRS)
- Line outputs: balanced XLR; unbalanced RCA (both Consumer level; Pro with future software update)
- Volume control: analogue with bypass option (bypass for line outputs only)
- Frequency response: 10 Hz – 30 kHz (+/- 0.05 dB) 10 Hz – >200 kHz (+/- 1 dB)
- Output power unbalanced: 300 mW into 300 Ω; 1,7 W into 50 Ω
- Output power balanced: 1.2 W into 300 Ω; 6.1 W into 50 Ω
- THD on balanced output: < 0.00018% / -115 dB, 1 mW into 16 Ω; < 0.00018% / -115 dB, 100 mW into 16 Ω
- THD on unbalanced output: < 0.00032% / -110 dB, 1 mW into 16 Ω; < 0.00057% / -105 dB, 100 mW into 16 Ω
- Dynamic range analog: 130 dB (A-weighted)
- Dynamic range digital: 120 dB (A-weighted)
- Input impedance: 47 kΩ
- Output impedance unbalanced: 22 Ω on pre-amp
- Output impedance balanced: 44 Ω on pre-amp
- Output impedance Headphones: < 0.3 Ω
- Power consumption: idle <15 W
- Power adapter: 100-240V AC to 22-30V DC
- Dimensions (W x D x H): 21.7 cm x 20.6 cm x 5 cm / 8.6” x 8.1” x 2.0”
- Weight: 1.8 kg / 3.97 LBS
Description
Ferrum Audio ERCO Gen 2 DAC and headphone amplifier is an updated version of the ERCO with a new board at a lower price than the prior model. The ERGO Gen 2 is designed to get the very best possible sound from your digital sources via optical, coaxial or USB with both single-ended (RCA) and balanced (XLR) outputs.
Of course it can be used as a dedicated DAC in a hi-fi or headphones system with the benefit of an excellent onboard headphone amplifier. It can also be used with/without the matching HYPSOS power supply upgrade (not included) which is shown together with ERCO Gen 2 in several photos for reference.
ERCO Gen 2 allows for enhanced transparency across the soundscape which in turn gives you a less fatiguing listening experience that allows you to truly appreciate the music.
Purist Digital to Analogue Conversion
The ERCO Gen 2 headphone DAC is designed to be the best of the best – a DAC without compromise, whilst combining all the tools that make the Ferrum family one of the most respected product line ups in the Hi-Fi world today.
Keeping it clean
The ERCO Gen 2 combines over two decades of experience with latest technology to deliver a clean and clear soundscape by using Ferrum technology that sets them apart from other brands, while combining with unbeatable self-developed Digital to Analog conversion all thanks to the ESS Sabre DAC chip.
Choosing your output
You can use any of your own high-end headphones that use either the 4.4mm or 6.35mm headphone outputs, or for the ultimate in performance using a set of XLR or RCA loudspeakers on the desktop. Either option allows for perfect clarity across the 10 Hz – 30 kHz (+/- 0.05 dB) 10 Hz – >200 kHz (+/- 1 dB) spectrum.
Power Link
The ERCO Gen 2 brings in the option to pair the unit with HYPSOS (not included) that truly allows the ERCO Gen 2 to shine and regulate the power to ensure a long life of the unit, this is achieved by the FPL (Ferrum Power Link) that unleashes the ERCO Gen 2 to the max.
