Grado Lineage Epoch Cartridge
You can earn loyalty points on every order you place on this website. If you select to create an account at checkout, your loyalty points will be saved and you can use these to discount future orders online.
Each product page shows you how many loyalty points you can earn when you order that item. Essentially, for each £1 you spend, you earn 1 loyalty point and for every 1 point earned, 1p will be added to your loyalty point balance (this is the same as some of the UK's biggest loyalty point cards). So for example, if you spend £500, you'll earn 500 loyalty points which can be used to discount a future order by £5.00.
Available - Usually ships within 2-3 days
Features
| Manufacturer | Grado |
|---|---|
| Warranty The length of time your product is protected by warranty | 1 Year |
Tech Specs
- Output: 1mV @ 5 CMV
- Freq Resp: 6Hz - 72KHz (Controlled)
- Channel separation: 47dB average
- Loading: 47,000 ohms
- Inductance: 30 mH
- Resistance: 91 ohms
- Non-sensitive to capacitive load
- Chasis mass: 12 grams
- Tracking force: 1.5 - 1.9 grams
Description

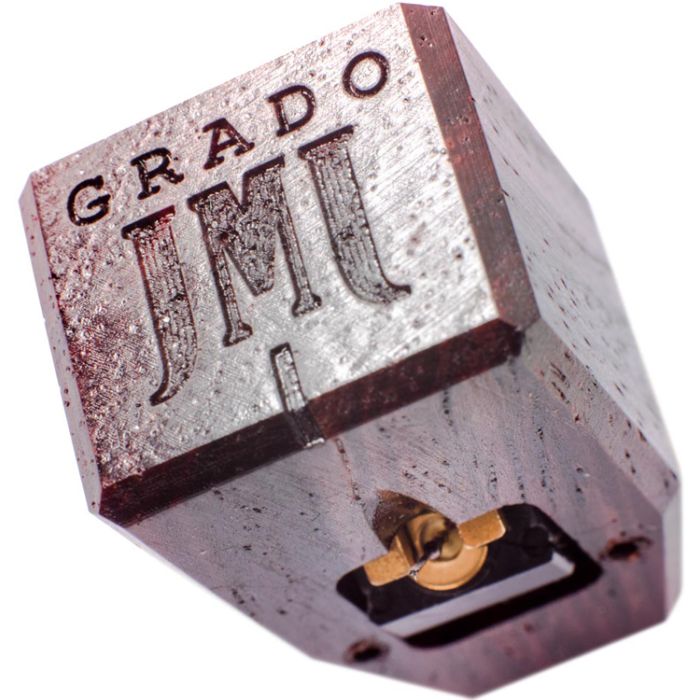

Grado Lineage Epoch Cartridge, the flagship cartridge of the all-new Lineage Series, hails a new era in phono cartridge design. For the first time in their 64 year history, sapphire, gold, diamond, and cocobolo wood join forces to produce the finest hand-built cartridge ever.
Lineage Series
In 1953, Grado started building cartridges on their kitchen table. Every experience in their history has led to the creation of the Lineage Series. The Epoch and Aeon represent the craftsmanship and unwavering dedication to sound that has been Grado’s main focus for over half a century.
Superior Sound
Epoch is assembled by John Grado himself on his workbench in Brooklyn, and offers exceptional reproduction of vocals and instruments, with superlative tonal balance, dynamics, imaging, and realism. Grado’s coil winding techniques, honed throughout the decades, achieve exact unison between the four coils in each phono cartridge.
This allows for a precise balance between channels and accurate stereo imaging. Each Grado is wound with the finest properly sized and annealed 24-karat solid gold wire, which is the ultimate conductor for the transmission of the music from your record.
Internal Circuit
All of the internal magnetic circuit parts are Swiss screw machined or molded metal, which have tolerances on the order of the best Swiss-made watches. The specially designed diamond stylus, for the first time in a Grado, is mounted on a sapphire cantilever that connects to the stylus generating system.
The Epoch and Aeon feature a unique system that has the lowest effective moving mass of any cartridge, while Grado’s patented Flux-Bridger generator design creates a superior balance throughout the full frequency spectrum with superb resolution and clarity, which produces an overall truer picture of the music. This is all nestled inside a cocobolo wooden housing.
