Graham Slee Elevator EXP (with PSU1)
You can earn loyalty points on every order you place on this website. If you select to create an account at checkout, your loyalty points will be saved and you can use these to discount future orders online.
Each product page shows you how many loyalty points you can earn when you order that item. Essentially, for each £1 you spend, you earn 1 loyalty point and for every 1 point earned, 1p will be added to your loyalty point balance (this is the same as some of the UK's biggest loyalty point cards). So for example, if you spend £500, you'll earn 500 loyalty points which can be used to discount a future order by £5.00.
Usually ships within 3-4 weeks. Order now to reserve your place in the queue
Features
| Manufacturer | Graham Slee |
|---|---|
| Warranty The length of time your product is protected by warranty | 2 Years |
Tech Specs
- Input range: 0.15mV to 0.8mV
- Output (for input range): 2mV to 10mV, suitable for a moving magnet phono stage input
- Maximum input: 378mV rms (a very large overload margin)
- Maximum output: 4.914V rms
- Gain: 22dB (13) < 10Hz to 917kHz (-3dB points)
- Input impedance: 23, 30, 100, 840, 1000, 5100 and 47000 Ohms
- Output (driving/source) impedance: 300 Ohm
- Recommended load impedance: 47k Ohms phono stage preamp input
- Noise at output: -99dB CCIR Q-pk
- Distortion: 0.02%
- Frequency response: < 10Hz to 917kHz (-3dB points)
- Channel balance: 0.2dB
- Channel separation: 64dB
- Size (approx.): W- 107 x H- 50 x D- 180 (mm) inc. jacks
Description
The Graham Slee Elevator EXP is a "step up transformer" that allows you to use low output MC cartridges with an MM phono stage (perfect match for the Era Gold or Reflex) with adjustable cartridge loading. The Elevator EXP boosts the low-output level of an MC cartridge to MM level, complete with adjustable cartridge loading for correct cartridge matching.
Please note the Elevator EXP is not a phono stage itself and must be partnered with a suitable phono stage. Many reviewers stated the Era Gold or Jazz Club are ideal partners for the Elevator EXP for the ultimate an uncompromising listening experience.

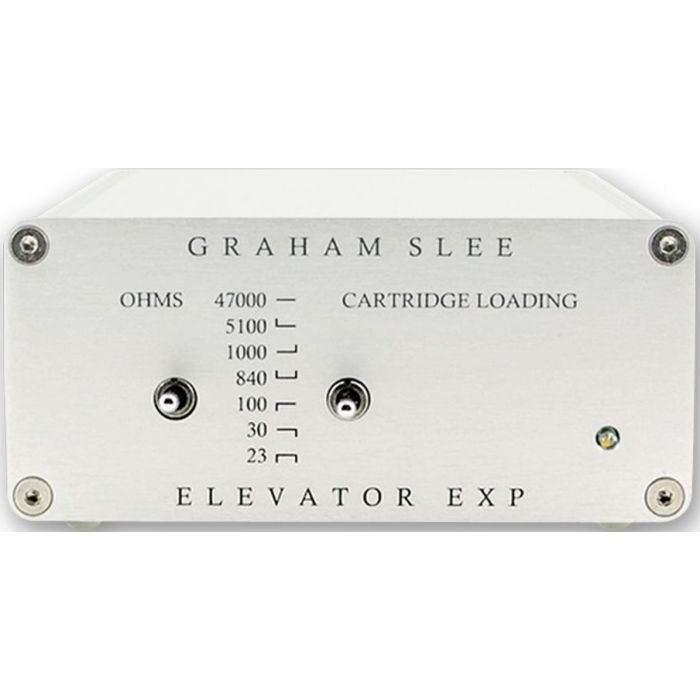

The switching on the front panel allows this head amp to be optimised for almost any low-output moving coil (MC) cartridge - even one with a very low output. Loading is possible at 47,000, 5,100, 1,000, 840, 100, 30 and 23 ohms. This is a rare feature nowadays and because every MC cartridge has a correct loading setting, you can use the Elevator EXP to make sure that you are getting the most out of your cartridge sonically.
Includes superior Graham Slee PSU1 power supply.
30 Day Money Back Guarantee
Rather than demo in a shop reference system which could be somewhat misleading with regard to how this item will perform in your own system, this item includes a 30 day money back guarantee, allowing you to demo it at home for upto 30 days in your own system. If you are unsatisfied, you can return it to us for a refund (terms and conditions apply).
Press Reviews
We feel that these units really do help you hear more of what's on the record (Hi-Fi News magazine)
