Graham Slee Libran XLR Interconnects
You can earn loyalty points on every order you place on this website. If you select to create an account at checkout, your loyalty points will be saved and you can use these to discount future orders online.
Each product page shows you how many loyalty points you can earn when you order that item. Essentially, for each £1 you spend, you earn 1 loyalty point and for every 1 point earned, 1p will be added to your loyalty point balance (this is the same as some of the UK's biggest loyalty point cards). So for example, if you spend £500, you'll earn 500 loyalty points which can be used to discount a future order by £5.00.
Features
| Manufacturer | Graham Slee |
|---|---|
| Warranty The length of time your product is protected by warranty | 2 Years |
Tech Specs
- Available terminations XLR male; XLR female; TRS jack plug: 3-circuit
- Connector plating Gold
- Capacitance across phases 45pf/metre (13pf/foot)
- Capacitance phases to shield 75pf/metre (23pf/foot)
- Voltage rating 300V rms
- Lay-up Close-coupled slow twist pair
- Conductors Tinned copper
- Core insulation Polyethylene
- Shield 90% tinned copper braid over aluminium foil + drain wire
- Jacket and braid PVC
- Suggested Direction Marked extrusion direction
Description

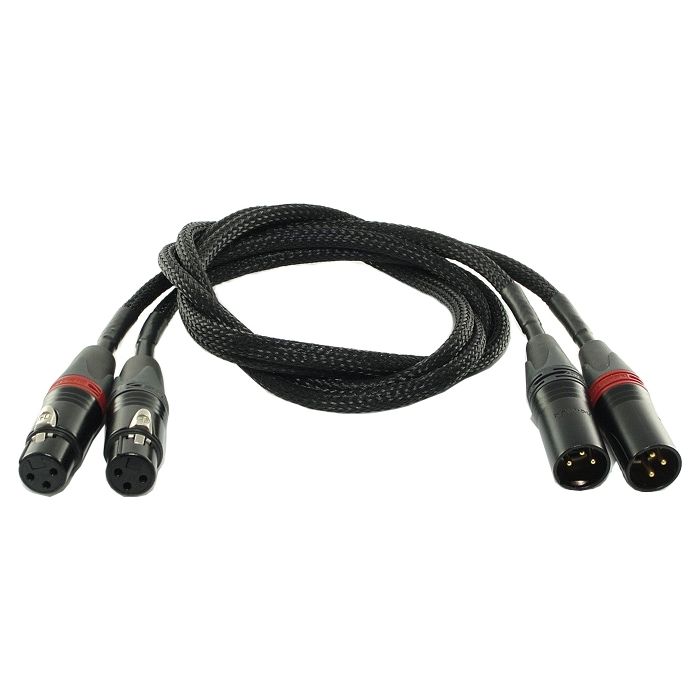

The Graham Slee Libran XLR Interconnect Cable goes above and beyond the standard XLR cable, enhancing the detail, dynamics and clarity of the audio signal.
The Libran XLR Interconnect is ideal for equipment-to-equipment and equipment-to-power applications as a superb balanced audio interconnect.
The Libran XLR Interconnect Cable has gold plated Neutrik XLRS/TRS-wired jack plugs specifically designed for use with balanced cables, and is available in pairs in a selection of different lengths to suit your needs.
Balancing The Sound Scales
Libran cables are balanced, utilizing two signal wires to carry signals with reversed polarity, which causes signals to cancel out and prevents any unwanted external electronic interference. Suitable for use in low-impedance and up to 600Ohm balanced systems.
Key Features
- Recommended for use between the Majestic pre-DAC balanced TRS output jacks and the balanced XLR inputs of the Proprius power amplifiers.
- Having a similar dielectric constant to polypropylene the Libran's insulation is a "fast substrate" making it low-loss.
- Unlike polypropylene, the Libran is far more flexible and will form a bend radius down to 7cm.
- Ultra-low capacitance at only 45pf/m across phases, and 75pf/m either phase to shield.
