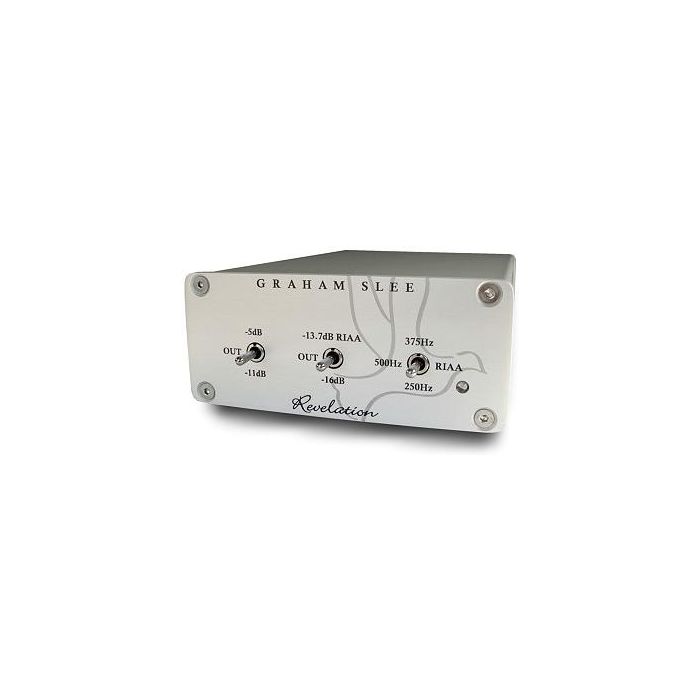

Graham Slee Revelation C Phono Stage
You can earn loyalty points on every order you place on this website. If you select to create an account at checkout, your loyalty points will be saved and you can use these to discount future orders online.
Each product page shows you how many loyalty points you can earn when you order that item. Essentially, for each £1 you spend, you earn 1 loyalty point and for every 1 point earned, 1p will be added to your loyalty point balance (this is the same as some of the UK's biggest loyalty point cards). So for example, if you spend £500, you'll earn 500 loyalty points which can be used to discount a future order by £5.00.
Features
| Manufacturer | Graham Slee |
|---|---|
| Warranty The length of time your product is protected by warranty | 2 Years |
Tech Specs
- Input range: 0.2mV to 1.0mV
- Output (for input range): 252mV to 1,260mV (1.26V)
- Maximum input: 3.9mV rms
- Maximum output: 4.914V rms
- Gain: 62dB (1,260) at 1kHz
- Input impedance: 100 Ohms
- Output (driving/source) impedance: 1k Ohm
- Recommended load impedance: 10k Ohm or greater
- Noise at output: -62dB CCIR Q-pk
- Equivalent input noise (EIN): -124dB
- Distortion: 0.02%
- RIAA accuracy: <0.5dB
- Frequency response: 20Hz - 200kHz (flat, corrected to RIAA)
- Channel balance: 0.2dB
- Channel separation: 64dB
- Size: (approx.) W: 107 x H: 50 x D: 180 (mm) inc. jacks
Description
The Revelation C is the newest version of Graham Slee's flagship phono stage, designed for low output MC cartridges, available with standard power supply or better PSU1 power supply. In similarity to the Reflex, the Revelation features a dual mono configuration with excellent musical speed and timing, but also features the multi-equalisation feature from the Jazz Club.
With a selection of 15 different equalization characteristics, the Revelation allows you to enjoy reference level performance from a wide range of lps. These settings will accurately reproduce virtually any historical or contemporary recording, with skin tingling nostalgia. As many records were made with different equalisation, the benefits of a correct setting can not be underestimated.
