Hi-Fi System 15 – Audiolab 9000A + KEF R3 Meta + Cables
You can earn loyalty points on every order you place on this website. If you select to create an account at checkout, your loyalty points will be saved and you can use these to discount future orders online.
Each product page shows you how many loyalty points you can earn when you order that item. Essentially, for each £1 you spend, you earn 1 loyalty point and for every 1 point earned, 1p will be added to your loyalty point balance (this is the same as some of the UK's biggest loyalty point cards). So for example, if you spend £500, you'll earn 500 loyalty points which can be used to discount a future order by £5.00.
Product Video
Features
| Manufacturer | Audio Affair |
|---|---|
| Warranty The length of time your product is protected by warranty | Full Warranty |
Tech Specs
The speakers - KEF R3 Meta Speakers (Pair)
- Design: Three Way bass reflex
- Uni-Q Driver Array: HF: 25 mm (1 in.) vented aluminium dome with MAT
- MF: 125 mm (5 in.) aluminium cone
- Bass Unit: LF: 165 mm (6.5 in.) hybrid aluminium cone
- Crossover frequency: 420 Hz, 2.3 kHz
- Frequency range (-6dB): 38 Hz - 50 kHz
- Typical in-room bass response (-6dB): 30Hz
- Frequency response (±3dB): 58 Hz - 28kHz
- Harmonic distorition (90dB, 1m): <1% 73 Hz and above<0.5% 90 Hz - 20 kHz
- Maximum output: 110dB
- Amplifier requirements: 15-180W
- Nominal Impedance: 4 Ω (min. 3.2 Ω)
- Sensitivity (2.83V/1m): 87dB
- Weight: 24.8kg (as a pair)
- Dimension (H x W x D) with terminal: 422 x 200 x 336 mm (per unit)
The amplifier - Audiolab 9000A Integrated Amplifier
Design Philosophy and Core Technology
- 2 x 100W (8 ohms) / 2 x 160W (4 ohms) Class AB
ES9038Pro 32-bit DAC
- 4.3" (800 x 480mm) Large Size Full View IPS LCD
- Built-in Certified MQA Full Decoder (PC USB, Coax/Optical)
- Bluetooth 5.1 (aptX/aptX HD/AAC/LDAC) Support
- Dedicated High-performance, Low-noise MM Phono Stage
- Dedicated Current-Feedback Headphone AMP
- Integrated / PRE-POWER / PRE Only Modes
- USB Upgrade Support
- Inputs: 3 x Analogue, 1 x XLR, 1 x Phono (MM), 1 x Power Amplifier, 2 x SPDIF (Coax), 2 x SPDIF (Optical), 1 x PC USB (USB B), 1 x Bluetooth (aptX/aptX HD/LDAC), 1 x 12V Trigger
- Outputs: 1 x PRE Amplifier,1 x Stereo Speaker, 1 x Headphone, 1 x 12V Trigger
Sampling Frequency
- Optical / Coaxial: 44.1kHz-192kHz;
- PC USB: 44.1kHz-768kHz (PCM) / DSD64, DSD128, DSD256, DSD512
Preamplifier Section
- Gain (max.): +6dB (Line), +53dB (Phono MM)
- Input Sensitivity: 1Vrms (Line, Volume = 0dB), 2Vrms (XLR, Volume = 0dB), 4.4mV (Phono MM, Volume=0dB)
- Input Impedance: 10K (Line); 47K // 100pF (Phono MM)
- Total Harmonic Distortion (THD): < 0.0004% (1kHz @ 2V, Volume = 0dB)
- Frequency Response: 20Hz-20kHz (+/-0.1dB)
- Output Voltage: 2.3V max. (Volume = 0dB)
- Output Impedance: 120 ohms
- Signal-to-Noise Ratio: > 110dB (Line & XLR, A-weighted); > 80dB (Phono MM, A-weighted)
DAC
- D to A Converter: ES9038Pro
- Total Harmonic Distortion (THD): 2.1Vrms
- Max. Sampling Frequency: Optical, Coaxial: 192kHz, PC USB: PCM768kHz, DSD512
- Signal-to-Noise Ratio (S/N): > 117dB (A-weighted)
Power Amplifier Section
- Gain: +29dB
- Rated Power Output: 2 x 100W (8 ohms, THD<1%), 2 x 160W (4 ohms, THD<1%)
- Frequency Response: 20Hz-20kHz (+/-0.3dB)
- Total Harmonic Distortion (THD): <0.002% (1kHz @ 50W / 8 ohms)
- Input Sensitivity: 1Vrms
- Signal-to-Noise Ratio (S/N): > 110dB (A-weighted)
- Max. Output Current: 15A
Headphone Amplifier
- Total Harmonic Distortion (THD): < 0.01% (1kHz, 50mW)
- Output Impedance: 2.35 ohm
- Load Impedance: 20-600 ohms
General
- Standby Power Consumption: <0.5W
- Net Weight: 9.4kg
- Gross Weight: 11.2kg
- Dimensions (mm) (W x H x D): 444 x 342 x 89
- Carton Size (mm) (W x H x D): 514 x 470 x 161
- Finish: Black / Silver
The cable - Chord Shawline X Speaker Cable - 3m Pair
- Conductor: Silver-plated
- High purity OFC Cable
- Insulation: XLPE
- Configuration: Twisted pair
- Shielding: High density foil
- Braid: 93% coverage metal
- Outer jacket: Translucent PVC
- AWG: 16 (1.31mm2)
- Diameter: 9.1mm
Description

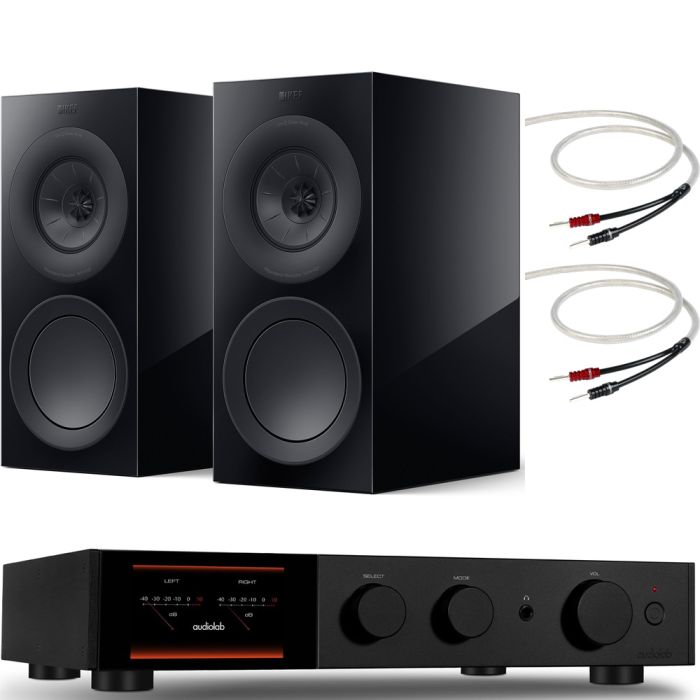

A selected HiFi system put together by our experts here at Audio Affair that consists of the Audiolab 9000A Integrated Amplifier + KEF R3 Meta Speakers (Pair) with recommended cables
The speakers - KEF R3 Meta Speakers (Pair)
KEF R3 Meta speakers are the latest version of this excellent stand mount loudspeaker in the R series range. These three way bookshelf speakers have received a Meta Upgrade, with KEF’s Metamaterial behind the tweeter which is designed to reduce distortion. The closest thing to KEF Reference 1 at a much lower price View Full Product Details Here
The amplifier - Audiolab 9000A Integrated Amplifier
The 9000A Integrated Amplifier from Audiolab is the latest evolution of a now mythical series of amplifiers – the 8000 series. It represents the best of what the team at Audiolab have to offer in terms of technology and performance with a classy new look. View Full Product Details Here
Optional Cables - Chord Shawline X Speaker Cable - 3m Pair
Please note: cables pictured are NOT included but are our recommended option for this package. Please contact us to order with cables and we can do a great deal on these (View Full Product Details Here) or any other cables option.
Talk to one of our hi-fi specialists
This is a highly recommended pairing, but please remember it is only an example - we can spec higher model amps or speakers to your room and requirements - please send us an e-mail or give us a call on 01212247300 to speak to one of our passionate hi-fi experts.
