Luxman L-505uX II + ATC SCM19
You can earn loyalty points on every order you place on this website. If you select to create an account at checkout, your loyalty points will be saved and you can use these to discount future orders online.
Each product page shows you how many loyalty points you can earn when you order that item. Essentially, for each £1 you spend, you earn 1 loyalty point and for every 1 point earned, 1p will be added to your loyalty point balance (this is the same as some of the UK's biggest loyalty point cards). So for example, if you spend £500, you'll earn 500 loyalty points which can be used to discount a future order by £5.00.
Features
| Manufacturer | Audio Affair |
|---|---|
| Warranty The length of time your product is protected by warranty | 3 Years |
Tech Specs
Luxman L-505uX II Integrated Amplifier
- Rated out: 2x 100W/150W (4/8Ω)
- Phono: 2.5/0.3mV, 47k/100Ω (MM/MC)
- Line: 180mV/47kΩ (BAL 180mV/55kΩ)
- Output volt: 180mV, PRE-OUT: 1V
- Phono Freq Resp: 20-20k Hz (-3dB)
- Line Freq Resp: 20-100k Hz (-3dB)
- THD: <0.09%/<0.009% (8Ω, 20-20k/1kHz)
- S/N ratio (IHF-A): (MM/MC): 91/75dB+
- LINE SNR: 104dB or more
- Volume adjustment: LECUA
- Amplification circuit: ODNF 4.0
- Output: Bipolar: 210
- Bass/Treble control: ±8dB @100/10k Hz
- Power supply: 230V/115V~ (50/60Hz)
- Power consumption: 270W/85W/0.4W
- Accessories: RA-17A Remote, Power cable
- Dimensions (WHD): 440 x 178 x 454mm
- Net weight: 22.5kg
ATC SCM19 Speakers
- HF: 25mm Neodymium soft dome
- Mid/LF: ATC 150mm SL
- Matched Response: ±0.5dB
- Freq Response (-6dB): 54Hz-22kHz
- Horizontal Dispersion: ±80° Coherent
- Vertical Dispersion: ±10° Coherent
- Sensitivity: 85dB @ 1W @ 1metre
- Max SPL: 108dB
- Power Amplifier: 75 to 300 Watts
- Nominal Impedance: 8 Ohm
- Crossover Frequency: 2.5kHz
- Connect: Binding posts/4mm plugs, biwire
- Dimensions (HWD): 438 x 265 x 300mm
- Weight: 17.8kg
Description

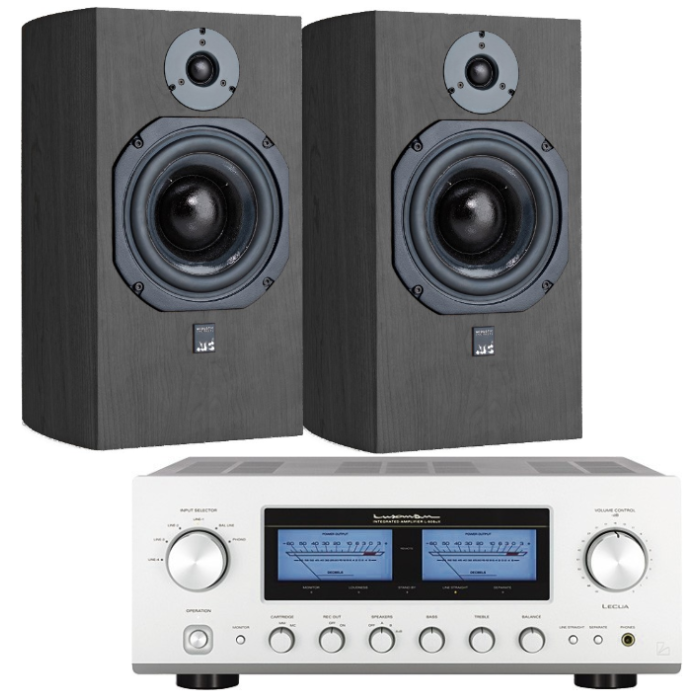

An expertly matched hifi package that combines the Luxman L-505uX II Integrated Amplifier and ATC SCM19 Speakers.
Talk to one of our hi-fi experts
This is a highly recommended pairing, but please remember it is only an example - we can spec higher model amps or speakers to your room and requirements - please send us an e-mail or give us a call on 01212247300/7401 to speak to one of our passionate hi-fi experts.
More information?
- For more info on the Amplifier, see our main Luxman L-505uX II page
- For more info on the speakers, see our main ATC SCM19 page
- For recommendations on music sources (streaming, vinyl, CD, etc), please contact us
