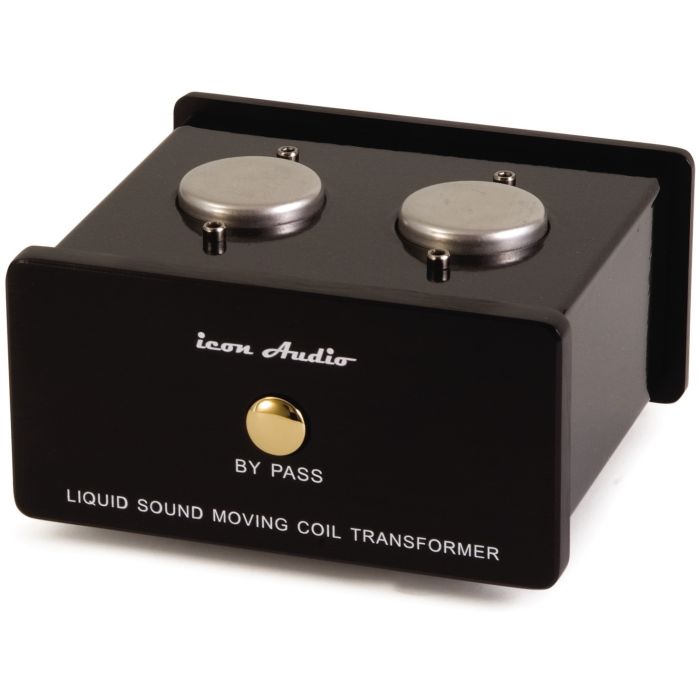

Icon Audio MCTX Step Up Transformer
You can earn loyalty points on every order you place on this website. If you select to create an account at checkout, your loyalty points will be saved and you can use these to discount future orders online.
Each product page shows you how many loyalty points you can earn when you order that item. Essentially, for each £1 you spend, you earn 1 loyalty point and for every 1 point earned, 1p will be added to your loyalty point balance (this is the same as some of the UK's biggest loyalty point cards). So for example, if you spend £500, you'll earn 500 loyalty points which can be used to discount a future order by £5.00.
Available - Usually ships within 14 days
Features
| Manufacturer | Icon Audio |
|---|---|
| Warranty The length of time your product is protected by warranty | 1 Year |
Tech Specs
- All hand wired point to point
- No printed circuit board to ‘colour’ sound
- Suitable for pickups requiring 10 – 500 Ohms
- Very low output impedance
- Gain = 10 (1 for “by pass)
- Signal to noise level -90db
- Frequency response 10hz to 20khz –1db
- Silver TEFLON audio cable
- Gold plated Input & output terminals
- One line input/line output
Description
The Icon Audio MCTX is the first step-up stage from Icon Audio, allowing you to use a moving coil (MC) cartridge with a moving magnet (MM) phono stage and is the same design as featured in the high end PS1 and PS3 phono stages. Moving Coil (MC) pickups are capable of much better reproduction of LPs than Moving Magnet (MM). But only MC transformers can give the true golden musical sound of the LP.
Some phono stages have moving coil (MC) circuits fitted, but the results of these can be disappointing, this is because transistors are not ideally suited to this job. The sound can be harsh and uninteresting. Whereas a good quality transformer will add nothing, whilst giving a true interpretation of the original sound.
Solid construction is important for protection against noise and vibration. We use high quality transformers using the best low oxygen copper, made into extremely thin wire, is to hand wound the coils onto the rare earth metal formers. These are triple screened for maximum hum elimination. These are mounted on a stainless steel and alloy chassis using high quality gold plated terminals.
