Luxman L-509Z Integrated Amplifier
You can earn loyalty points on every order you place on this website. If you select to create an account at checkout, your loyalty points will be saved and you can use these to discount future orders online.
Each product page shows you how many loyalty points you can earn when you order that item. Essentially, for each £1 you spend, you earn 1 loyalty point and for every 1 point earned, 1p will be added to your loyalty point balance (this is the same as some of the UK's biggest loyalty point cards). So for example, if you spend £500, you'll earn 500 loyalty points which can be used to discount a future order by £5.00.
Only 1 in stock
Product Video
Features
| Manufacturer | Luxman |
|---|---|
| Warranty The length of time your product is protected by warranty | 3 Years |
Tech Specs
- Rated output - 120W + 120W (8Ω), 220W + 220W (4Ω)
- Input sensitivity/input impedance - PHONO (MM): 2.5mV/47kΩ, PHONO (MC-H): 0.3mV/100Ω, PHONO (MC-L): 0.1mV/40Ω, LINE: 180mV/47kΩ, BAL.LINE: 180mV/79kΩ, MAIN IN: 1.1V/47kΩ
- Output voltage - PRE OUT: 1V
- Frequency response - PHONO: 20Hz to 20kHz (±0.5dB), LINE: 20Hz to 100kHz (within -3dB)
- Total harmonic distortion - 0.007% or less (8Ω, 1kHz), 0.03% or less (8Ω, 20Hz to 20kHz)
- S/N ratio (IHF-A) - PHONO (MM): 87dB or more, PHONO (MC-H): 70dB or more, PHONO (MC-L): 62dB or more, LINE: 106dB or more
- Volume adjustment - LECUA-EX
- Amplification feedback circuit - LIFES 1.0
- Output configuration - Bipolar 4-parallel push-pull
- Damping factor - 330
- Max. amount of tone control - BASS: ±8dB at 100Hz, TREBLE: ±8dB at 760Hz, TREBLE: ±8dB at 10kHz
- Power supply - 230V~(50Hz) / 115V~(60Hz)
- Power consumption - 390W, 150W (under no signal), 0.5W (at standby)
- External dimensions - 440(W) x 193(H) x 463(D) mm, front side knob of 20mm and rear side terminal of 37mm included in depth
- Net weight - 29.4kg (main unit)
- Accessories - Remote control (RA-17A), Power cable
- Speaker terminal, Supported Y-lug terminal dimension - Width of part a: 16mm or less, Width of part b: 7mm or more
Description

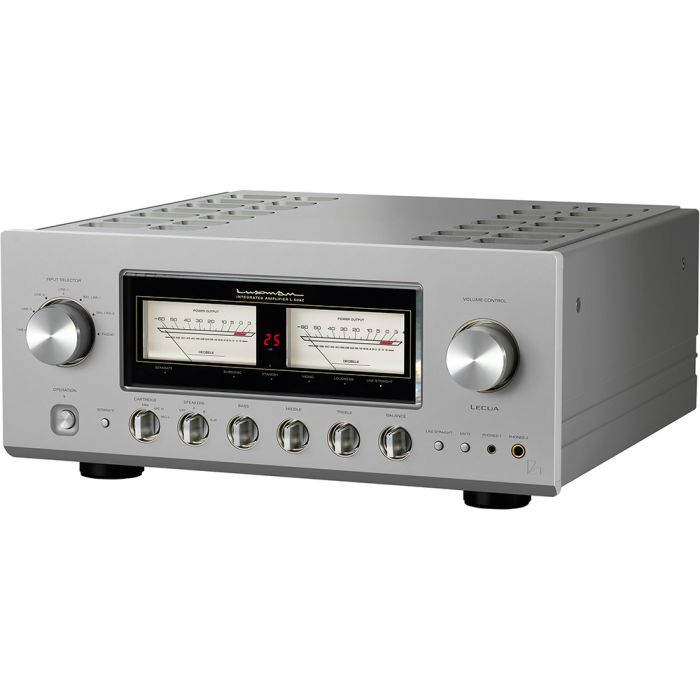

The Luxman L-509Z Integrated Amplifier is a celebration of Luxman's 100 year anniversary. Japan's most decorated high-end audio brand has delivered its finest integrated amplifier, the L-509Z couple classic style alongside exceptional build quality and lashings of pure musical power.
Improving upon the previous L-509X model, this latest flagship has been tweaked and improved to deliver the best possible performance - truly the next best thing to Luxman's C-10X pre and M-10X power amplifier combo - and these cost more than double the price combined.
For vinyl listeners, this amplifier is also a beautiful match for the PD-191A turntable, which was released shortly after this model.
On demonstration in our showroom and available for home trial - please contact us to arrange a listen.
