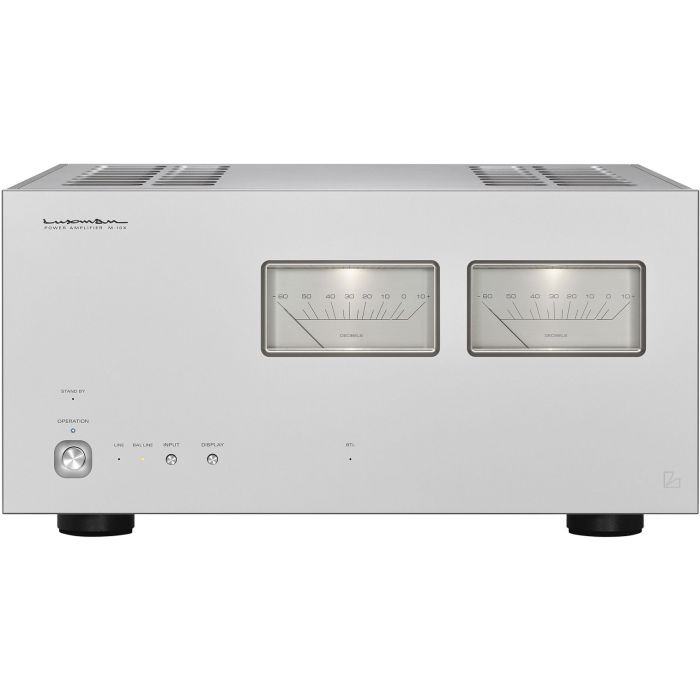

Luxman M-10X Power Amplifier
You can earn loyalty points on every order you place on this website. If you select to create an account at checkout, your loyalty points will be saved and you can use these to discount future orders online.
Each product page shows you how many loyalty points you can earn when you order that item. Essentially, for each £1 you spend, you earn 1 loyalty point and for every 1 point earned, 1p will be added to your loyalty point balance (this is the same as some of the UK's biggest loyalty point cards). So for example, if you spend £500, you'll earn 500 loyalty points which can be used to discount a future order by £5.00.
Available - Usually ships within 2-3 days
Product Video
Features
| Manufacturer | Luxman |
|---|---|
| Warranty The length of time your product is protected by warranty | 3 Years |
Tech Specs
- Speaker terminal supported: Y-lug
- Max out: 2x 1200W/Str 2400W (1/2Ω)
- Sensitivity: 1.24V/150W (8Ω)
- Impedance: 34/51kΩ Bal/Unbalanced
- FR: 20-20k/1-130k Hz (–0.1/3dB)
- THD: <0.008% /0.1% (1k/20-20K Hz, 8Ω)
- S/N ratio (IHF-A): 117dB
- Amplification circuit: ODNF 4.0
- Config: 2 Bipolar 4-parallel push-pull
- Power transformer: EI type 1,250VA
- Damping factor: 710, Gain: 29.0dB
- Power consumption: 540W/ 280W /1W
- Dimensions (WHD): 440 x 224 x 485mm
- Net weight: 48.0kg
Description
The Luxman M-10X power amplifier flagship model replaces the M-900u and is the next step in the evolution of the flagship Luxman power amplifier series, representing what has gone before but with an eye to the future and Luxman’s 100th anniversary in 2025.
M-10X boasts an improved signal to noise ratio, reduced THD and 150 Watts per channel into 8 ohms making it well suited to driving the majority of loudspeakers. For the ultimate in Luxman amplification, M-10X is the power amplifier you've been waiting for.
Bringing It To LIFES
The M-10X brings to life a brand new amplification feedback engine called LIFES (Luxman Integrated Feedback Engine System) which builds upon nearly a century of experience in delivering quality sound for the most discerning of listener.
Using their own epoch making ODNF (Only Distortion Negative Feedback) circuitry as a base, the team at Luxman have designed what is arguably the end-game in systems. The M-10X features a three-phase Darlington circuitry as well as a quad-parallel push pull system which can achieve up to 1,200W (at 1ohm)
Built To Last
Luxman prides itself on quality engineering and this unit represents their pinnacle of design, with flattering lines and colours designed to suit all tastes whilst not intruding on your home décor, the M-10X is designed to fit right in (and even better when paired with another Luxman product such as the JPC-15000)
The unit also features 100um thick low resistance tracing on a board level that ensures the longevity of the unit without any compromise on quality and power delivery – ensuring you get the absolute most out of your M-10X.
Power Without Compromise
The M-10X is designed for the ultimate power delivery to your setup with original custom designed components that allow the M-10X to stand alone, with new L&R independent 20,000uF x 4 capacitors that deliver an incredible amount of clarity to low-impedance transmissions, meaning every nuance of your sound system to allowed to truly shine to it's fullest.
