Mission 778X Integrated Amplifier with KEF LS50 Meta Loudspeakers
You can earn loyalty points on every order you place on this website. If you select to create an account at checkout, your loyalty points will be saved and you can use these to discount future orders online.
Each product page shows you how many loyalty points you can earn when you order that item. Essentially, for each £1 you spend, you earn 1 loyalty point and for every 1 point earned, 1p will be added to your loyalty point balance (this is the same as some of the UK's biggest loyalty point cards). So for example, if you spend £500, you'll earn 500 loyalty points which can be used to discount a future order by £5.00.
Product Video
Features
| Manufacturer | Audio Affair |
|---|---|
| Warranty The length of time your product is protected by warranty | Full Warranty |
Tech Specs
Mission 778X Integrated Amplifier
- Model - 778X
- General Description - Digital-to-Analogue Converter, Stereo Amplifier
- Design Philosophy and Core Technology - • Integrated Amplifier (45 watts @8 ohms, 65 watts @4 ohms)
- ESS Sabre32 ES9018K2M Reference Chip
- Ultra-low Noise Digital Audio File Compability (384kHz PCM, DSD256) • Bluetooth 5.0 (aptX / AAC) Support
- Dedicated High-performance, Low-noise MM Phono Stage
- Headphone AMP With High-speed Output Signal Transition
- USB Upgrade Support
- Large Tractile Controls With LED Level Indicators
- Inputs - 1 x Coaxial, 2 x Toslink Optical, 1 x PC USB, 1 x Bluetooth (aptX/AAC),
- 2 x AUX,1 x RCA (Phono MM)
- Outputs - 1 x Coaxial, 1 x Toslink Optical, 1 x RCA (PRE Out)
- Sampling Frequency - Optical / Coaxial: 44.1kHz-192kHz;
- PC USB:44.1kHz-384kHz(PCM) / DSD64, DSD128, DSD256
- Preamplifier Section -
- Gain (max.) - +0dB (Line), +47dB (Phono MM)
- Input Sensitivity - 540mV (Line, Volume = 0dB); 2.5mV (Phone MM, Volume = 0dB)
- Input Impedance - 10K (AUX); 47K//100pF (Phono MM)
- Total Harmonic Distortion (THD) - <0.003%
- Frequency Response (ref. 1kHz) - 20Hz-20kHz (±0.1dB)
- PRE Output Level - 2.1Vrms (max.)
- PRE Output SNR - >110dB (A-weighted)
- DAC -
- D to A Converter - ESS Sabre32 ES9018K2M
- Resolution - 32-bit
- Max. Sampling Frequency - Optical/Coaxial: 192kHz;
- USB: PCM 384kHz / 11.2896MHz (DSD256)
- Total Harmonic Distortion (THD) - < 0.001% (1KHz @ 0dBFS)
- Output level (0dBFS, 1KHz) - 2.1Vrms
- Power Amplifier Section -
- Gain - +31dB
- Rated Power Output - 2x45W(@8ohms); 2 x 65W (@ 4 ohms)
- Frequency Response (ref. 1kHz) - 20Hz-20KHz (± 0.5dB)
- Total Harmonic Distortion (THD) - <0.005% (30W / 8 ohms)
- Input Sensitivity - 540mV (RCA AUX In); 2.5mV (Phono MM)
- Signal-to-Noise Ratio (SNR) - >108dB (ref. 45W, A-weighted)
- Crosstalk @1K - >80dB (ref.1W)
- Standby Power Consumption - <0.5W
- Headphone Amplifier -
- Total Harmonic Distortion (THD) - < 0.01% (1kHz, 50mW )
- Output Impedance - 4.7 ohms
- Load impedance - 20-600 ohms
- General -
- Dimensions (mm) (W x H x D) - 236x98x380.6
- Carton Size (mm) ( W X H X D) - 450x392x175
- Net Weight - 6.3kg
- Finish - Black / Silver
- Power requirements (depending on region) - 220-240V ~ 50/60Hz; 100-120V ~ 50/60Hz
- Standard Accessories - Power Cord, Remote Control, User Manual, Antenna
KEF LS50 Meta Speakers (Pair)
Drivers
- Design: Two-way bass reflex
- Driver array: Uni-Q drive units
- MF/LF: 5.25" aluminium cone
- HF: 1" vented aluminium dome
- HF: Metamaterial Absorption tech
Performance
- Crossover frequency: 2.1kHz
- Freq range (-6dB): 47Hz - 45kHz
- Typical bass response (-6dB) 26 Hz
- Freq response (±3dB) 79Hz - 28kHz
- THD (90dB, 1m): <0.4%, 175Hz - 20kHz
- THD (90dB, 1m): <0.1% 300Hz - 10kHz
Amplifier
- Maximum output: 106dB
- Amp power (recommend): 40-100W
- Nominal impedance: 8Ω (min. 3.5Ω)
- Sensitivity (2.83V/1m) 85dB
General
- Dimension (HWD): 302 x 200 x 280.5mm
- Weight: 7.8 kg (17.2 lbs)
Description

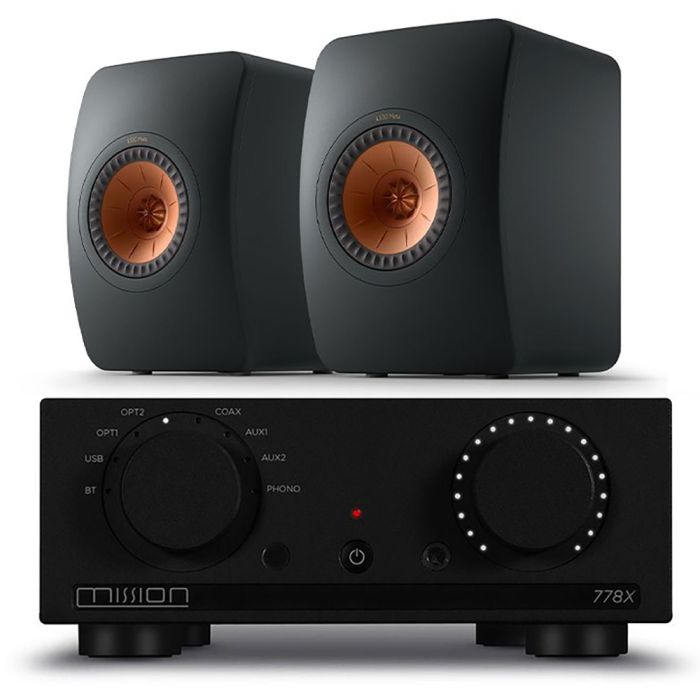

A sublimely matched hi-fi package combining the Mission 778X Integrated Amplifier with KEF LS50 Meta Loudspeakers
Mission 778X Integrated Amplifier
Missions 778X integrated amplifier represents a nearly four-decade obsession with sound for Mission. First launched as the 778 back in 1983, this amplifier is their first foray back into amplifiers since they launched the incredible Cyrus brand.
View Full Product Details Here
KEF LS50 Meta Speakers (Pair)
KEF LS50 Meta Speakers (Pair) are high precision bookshelf speakers built around KEF’s innovative acoustic technology to deliver an immersive and realistic sound from a compact, stylish design.
