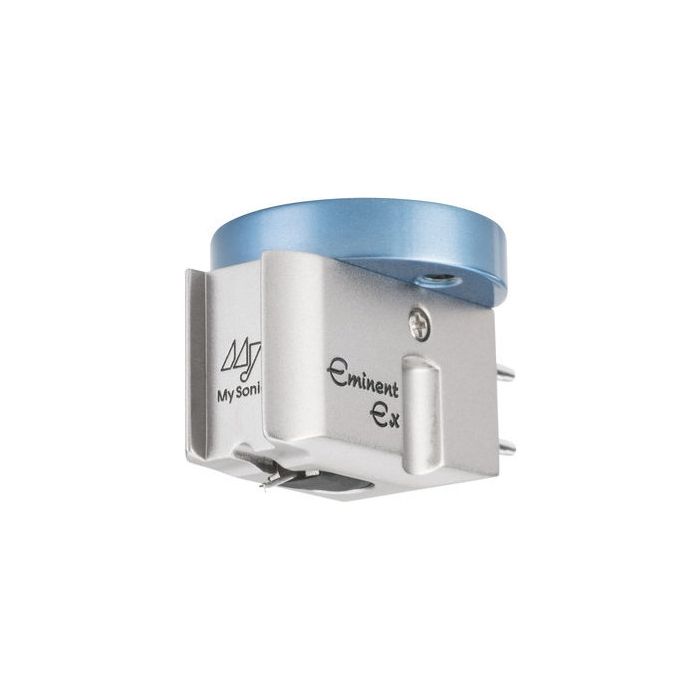

My Sonic Lab Eminent Ex MC Phono Cartridge
You can earn loyalty points on every order you place on this website. If you select to create an account at checkout, your loyalty points will be saved and you can use these to discount future orders online.
Each product page shows you how many loyalty points you can earn when you order that item. Essentially, for each £1 you spend, you earn 1 loyalty point and for every 1 point earned, 1p will be added to your loyalty point balance (this is the same as some of the UK's biggest loyalty point cards). So for example, if you spend £500, you'll earn 500 loyalty points which can be used to discount a future order by £5.00.
Available - Usually ships within 2-3 days
Features
| Manufacturer | My Sonic Lab |
|---|---|
| Warranty The length of time your product is protected by warranty | Full Warranty |
Tech Specs
- SH-μX core
- Extra Super Duralumin A7075 alloy body
- Super Duralumin cantilever
- Semi-line contact stylus
- Internal impedance 1.0Ω
- Output voltage 0.4mV
- Compliance 10x10-6cm/dyen
- Weight 9.5g
- Recommended tracking force 1.9-2.2g
- Recommended loading 100-800Ω (ideal is around 400Ω)
Description
My Sonic Lab Eminent Ex is a MC cartridge that produces a clear, natural and powerful audio playback from your turntable. It’s unique low impedance high output design creates clear and dynamic results.
Why the Eminent Ex?
My Sonic Lab’s Eminent EX model is a higher grade than the regular Eminent model. The Eminent Ex has a 0.4mv output and 0.9Ω internal impedance, whereas the Eminent model has a 0.5mv output with 1.8 Ω internal impedance. This is a pro as the aim of most MC cartridges is to achieve a maximum output from a low impedance circuit.
Complex Low Impedance Design
The Eminent Ex uses a unique core material that has higher permeability and flux density than core materials typically used in other moving coil cartridges. This delivers a natural reproduction by minimizing signal loss, internal distortion, and phase distortion.
It allows My Sonic Lab to use fewer coil windings, which results in a higher resolution, but has high output gains of 0.3mV to 0.5mV, which provides a powerful and musical playback that is natural and clear so you can greater depth from your favourite records.
