Available - Usually ships within 2-3 days
Features
| Manufacturer | My Sonic Lab |
|---|---|
| Warranty The length of time your product is protected by warranty | Full Warranty |
Tech Specs
- Type: For low impedance moving coil cartridges
- Frequency response: 10Hz ~ 100kHz (1Ω/47kΩ)
- Boost Ratio: 26dB, (1Ω/47kΩ/1kHz)
- Input impedance: 0.3Ω ~ 6Ω (cartridge impedance)
- Load Resistance: 47kΩ ~ 100kΩ
- Channel balance: below 0.1dB (1kHz)
- Terminals: rhodium-plated pins (pin RCA / Ground)
- Others: input selector with floating ground; Terminator circuit with output
- Dimensions: 150 (W) × 65 (H) × 110 (D) mm
- Weight: 1.7kg
Description

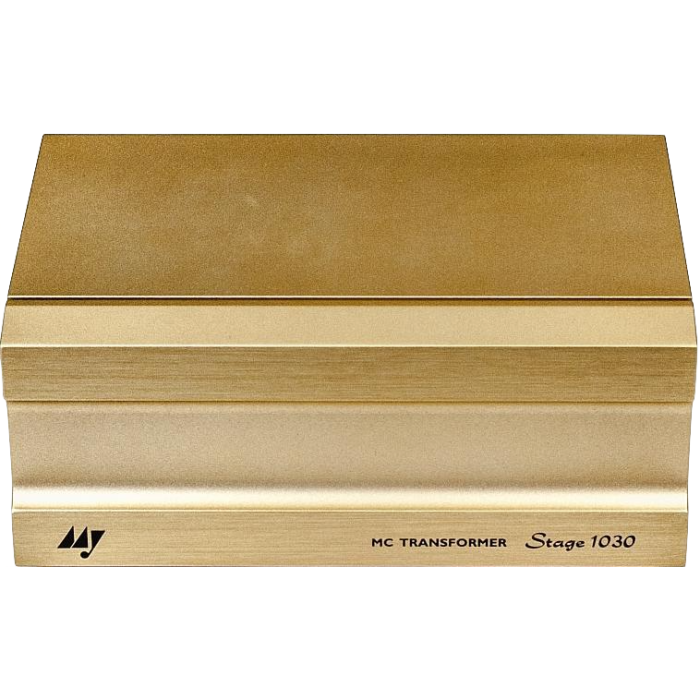

My Sonic Lab Stage 1030 Step-Up Transformer is designed for low impedance MC Cartridges, perfect for the My Sonic Labs range.
The stage 1030 is available with either symmetrical or asymmetrical connections and provides a great sound for vinyl records.
Suitable for Low Impedance Cartridges
The Stage 1030 Step-up Transformer is ideal for low impedance cartridges between 0.3Ohms and 6 ohms, which covers most cartridges in the market, specifically the My Sonic Labs range.
It also has an average gain of 26dB, so depending on the MM phono stage you have (>40dB gain), it will cover most MC cartridges output available from 0.1mV to 0.5mV.
High Grade Connections
The Stage 1030 Setup Transformer has high-grade RCA rhodium connectors to allow perfect long-term contact. It is also available in either symmetrical (XLR input/Outputs) or asymmetrical (RCA input/outputs).
Open Sound
The Stage 1030 provides an open sound with solid bass foundations, detailed highs and a 3-D sound-stage, it works extremely well with My Sonic Lab cartridges.
