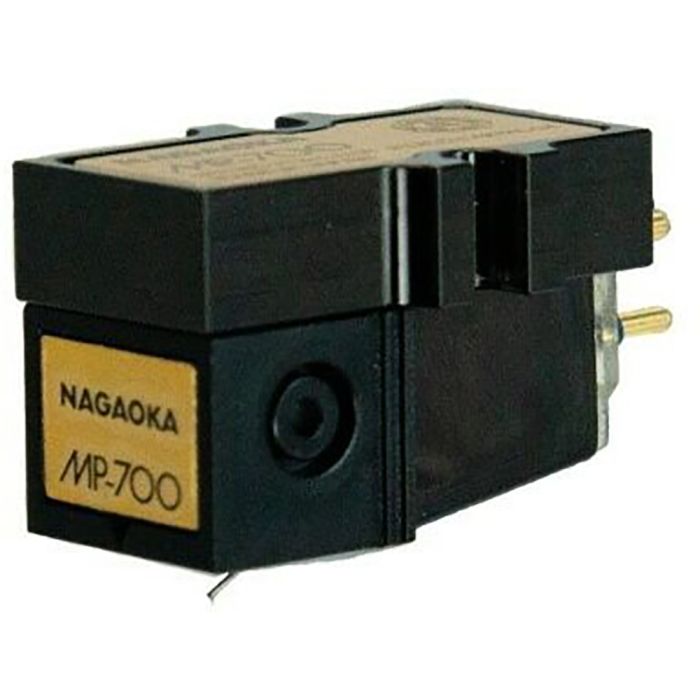

Nagaoka MP-700 MM Phono Cartridge
You can earn loyalty points on every order you place on this website. If you select to create an account at checkout, your loyalty points will be saved and you can use these to discount future orders online.
Each product page shows you how many loyalty points you can earn when you order that item. Essentially, for each £1 you spend, you earn 1 loyalty point and for every 1 point earned, 1p will be added to your loyalty point balance (this is the same as some of the UK's biggest loyalty point cards). So for example, if you spend £500, you'll earn 500 loyalty points which can be used to discount a future order by £5.00.
Available - Usually ships within 2-3 days
Features
| Warranty The length of time your product is protected by warranty | 1 Year |
|---|---|
| Manufacturer | Nagaoka |
Tech Specs
- Type: Moving Permalloy
- Cantilever: High-strength boron
- Stylus Type: Superfine line contact diamond
- Weight: 8g
- Output voltage: 1kHz, 5cm/sec: 3mV
- Frequency response: 20Hz - 25kHz
- Channel balance: 1kHz: >1dB
- Channel separation: 1kHz: >27dB
- Recommended loading: 47k ohms
- Dynamic compliance: 8.5 x 10-6cm/dyne
- Tracking force range: 1.3 - 1.8
Description
The Nagaoka MP-700 flagship moving magnet phono cartridge marks a significant evolution in Nagaoka’s storied MP series, which has spanned nearly half a century. Designed as the new flagship model in honor of Nagaoka’s 85th anniversary, the MP-700 blends tradition with advanced engineering to push the boundaries of vinyl playback.
With its debut at the prestigious High End Munich show, this cartridge stands as a tribute to the company’s enduring craftsmanship and commitment to sonic excellence.
Built upon the Moving Permalloy (MP) design—a refined take on the traditional moving magnet system—the MP-700 reduces cantilever mass to improve responsiveness and musical precision, resulting in a more authentic and vivid sound reproduction that brings listeners closer to the original performance.
Innovative Design for Superior Sound Reproduction
At the core of the MP-700 is an innovative magnetic circuit that enhances signal transmission and minimizes unwanted vibrations. This is achieved through Nagaoka’s use of a high-strength, low-mass boron cantilever and a meticulously crafted micro-ridge nude diamond stylus measuring just 0.12 x 0.3 mil. The result is outstanding accuracy and detail retrieval from vinyl grooves.
In addition, the cartridge features Nagaoka’s softest damper and a newly integrated suspension wire within the pivot system, ensuring stable stylus movement and controlled resonance. These refinements translate into exceptional clarity, separation, and frequency response—delivering deep bass, natural midrange, and sparkling treble for a listening experience that feels intimate and lifelike.
Engineered for Stability and Longevity
Every aspect of the Nagaoka MP-700 MM has been carefully engineered to reduce interference and extend durability. Its shielded case and cartridge frame are constructed from ultra-duralumin, a high-strength copper-aluminum alloy known for its rigidity and lightweight properties.
This chassis undergoes a specialized three-layer surface treatment involving nickel plating, black tin plating, and an insulating coating. Together, these layers help to reduce static electricity, improve resistance to heat and wear, and preserve the cartridge’s structural integrity over time. These measures ensure consistent, high-fidelity performance and maintain the cartridge’s elegant appearance even with prolonged use.
A Celebration of Heritage and Future Innovation
The launch of the Nagaoka MP-700 MM is not only a celebration of the brand’s remarkable 85-year legacy but also a bold step forward into the future of analog audio. Originally a manufacturer of precision components for watches and jewelry, Nagaoka has spent decades perfecting the delicate balance of mechanical precision and acoustic artistry.
The MP-700 embodies this heritage while setting a new standard in the high-end phono cartridge market. The MP-700 has been designed to give exceptional value for audiophiles seeking unparalleled musical realism.
