Origin Live Ground Anchor
You can earn loyalty points on every order you place on this website. If you select to create an account at checkout, your loyalty points will be saved and you can use these to discount future orders online.
Each product page shows you how many loyalty points you can earn when you order that item. Essentially, for each £1 you spend, you earn 1 loyalty point and for every 1 point earned, 1p will be added to your loyalty point balance (this is the same as some of the UK's biggest loyalty point cards). So for example, if you spend £500, you'll earn 500 loyalty points which can be used to discount a future order by £5.00.
Only 2 in stock, order now
Features
| Manufacturer | Origin Live |
|---|---|
| Warranty The length of time your product is protected by warranty | 2 Years |
Description

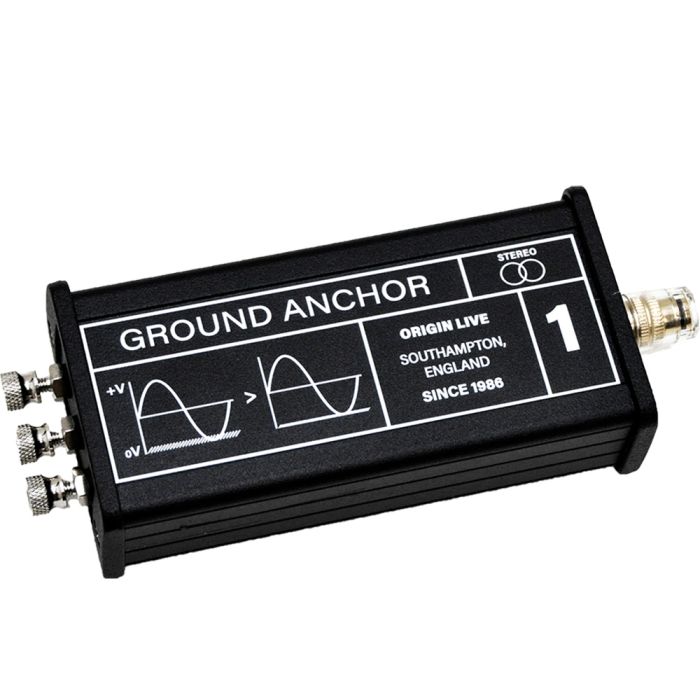

The Origin Live Ground Anchor is a precision-engineered grounding box designed to reduce electrical noise within high-fidelity vinyl systems. Developed in collaboration with UK specialists Puritan Audio Laboratories, it connects between your tonearm ground and phonostage ground terminal to target unwanted interference at its source.
Vinyl replay relies on an exceptionally delicate electrical signal generated by the cartridge, and even minor ground noise can obscure musical detail. The Ground Anchor addresses airborne interference, mains contamination, system noise and microphonic effects that infiltrate the ground reference.
By lowering the overall noise floor, it allows your analogue front end to perform at its full potential, revealing greater clarity, depth and musical engagement.
Why Grounding Matters in Analogue Systems
Unlike most audio components, a phono cartridge generates its own tiny electrical signal through electromagnetic induction as the stylus traces the record groove. This output is incredibly low in level, around 5mV for moving magnet cartridges and as little as 0.1mV for moving coil designs, making it highly susceptible to interference.
Tonearm wiring is typically thin and unshielded, while the arm tube itself can act as an antenna, attracting RF and EMI noise, mains hum and airborne electrical disturbances. Although standard grounding reduces some interference, residual noise often remains within the system’s 0V reference.
The Ground Anchor provides an additional layer of noise control, ensuring that this fragile signal remains as pure and undisturbed as possible.
Advanced Noise Absorption Technology
Housed within its compact 160 x 65 x 40mm enclosure, the Origin Live Ground Anchor uses advanced noise-absorbing technology to convert disruptive ground-referenced interference into harmless heat. Rather than simply redirecting noise, it effectively removes it from the signal path.
The result is immediately audible: clearer instrumental texture, more precisely defined imaging, improved separation between musical elements and noticeably deeper, blacker backgrounds.
Dynamic contrasts become more lifelike as the system’s noise floor drops, allowing quiet passages to breathe naturally. The Ground Anchor is particularly effective when used with step-up transformers, helping to retain detail while preserving space and tonal richness, enhancing both subtle acoustic recordings and complex orchestral works.
Universal Compatibility and Practical Design
The Origin Live Ground Anchor is universally compatible with any tonearm and phonostage, making it an easy and flexible upgrade. It features three cartridge-side grounding posts, simplifying connection for tonearms with multiple grounding paths and even supporting up to three tonearms from a single unit.
Included is a 50cm gold-plated beryllium copper ground cable with adaptable terminations—banana, spade and spring clip—for straightforward integration. With expected lead times of five to ten working days, it offers a practical yet highly effective enhancement for serious vinyl enthusiasts.
By addressing one of the most overlooked aspects of analogue replay, the Ground Anchor unlocks greater transparency and realism from your record player setup.
