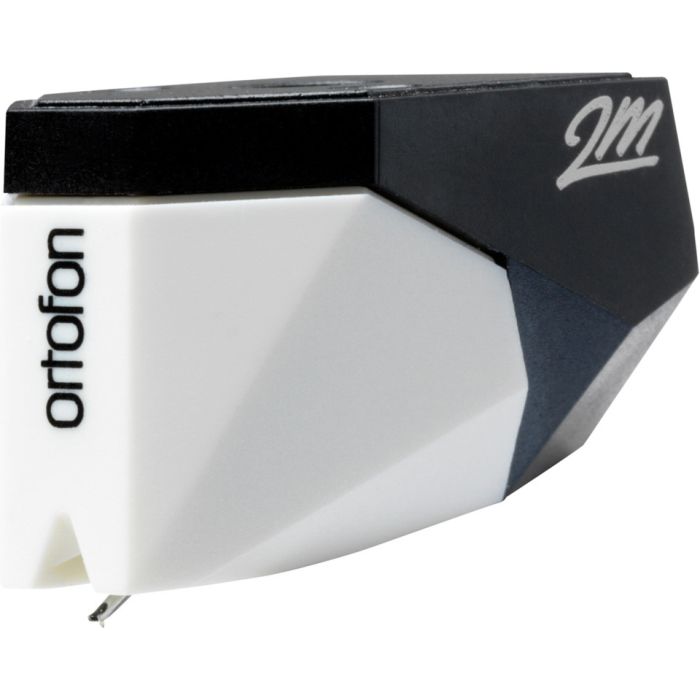

Ortofon 2M Mono Phono Cartridge
You can earn loyalty points on every order you place on this website. If you select to create an account at checkout, your loyalty points will be saved and you can use these to discount future orders online.
Each product page shows you how many loyalty points you can earn when you order that item. Essentially, for each £1 you spend, you earn 1 loyalty point and for every 1 point earned, 1p will be added to your loyalty point balance (this is the same as some of the UK's biggest loyalty point cards). So for example, if you spend £500, you'll earn 500 loyalty points which can be used to discount a future order by £5.00.
Available - Usually ships within 2-3 days
Features
| Warranty The length of time your product is protected by warranty | 2 Years |
|---|---|
| Manufacturer | Ortofon |
Tech Specs
Output voltage at 1000 Hz, 5cm/sec.: 4 mV
Channel balance at 1 kHz: -
Channel separation at 1 kHz :-
Channel separation at 15 kHz: -
Frequency range at - 3dB: 20-22.000 Hz
Frequency response: 20-20.000 Hz + 3 / - 1 dB
Tracking ability at 315Hz at recommended tracking force: 70 µm
Compliance, dynamic, lateral: 18 µm/mN
Stylus type: Nude Spherical
Stylus tip radius: R18 µm
Tracking force range: 1,6-2,0g (16-20 mN)
Tracking force, recommended: 1,8 g (18 mN)
Tracking angle: 20°
Internal impedance, DC resistance: 700 Ohm
Internal inductance: 350 mH
Recommended load resistance: 47 kOhm
Recommended load capacitance: 150-300 pF
Cartridge colour, body/stylus: White/Black
Cartridge weight without screws: 7,2 g
Replacement stylus unit: 2M Mono
Description
Ortofon 2M Mono phono cartridge is a dedicated mono cartridge for your turntable and gets an even better sound from your mono records by applying Ortofon's experience from the rest of the best selling 2M range.
The 2M Mono cartridge features an improved design, which provides a high level of sonic accuracy with an aR 18µm Nude Spherical stylus that is an optimal solution for playing mono microgroove vinyl records. Suitable for the enthusiast who wishes to get the most out of their mono vinyl collection.
About the 2M range
The 2M Series of cartridges is designed for precise and accurate retrieval of the information in the record groove. Their philosophy is to play the record sound as accurate as possible, without coloring the sound.
The 2M series of cartridges feature Ortofon’s trademark split pole pins, an invention that enables moving magnet cartridges to have a flat frequency response, as with a moving coil cartridge. Split pole pins were invented by Ortofon, and were originally presented in the 500 series and Super OM series.
Ortofon have optimized the design for ease of mounting the cartridge, weight and size to fit the most common turntables at the market today. 2M Series provides excellent compatibility in an assortment of playback systems and with a wide variety of phono preamps.
