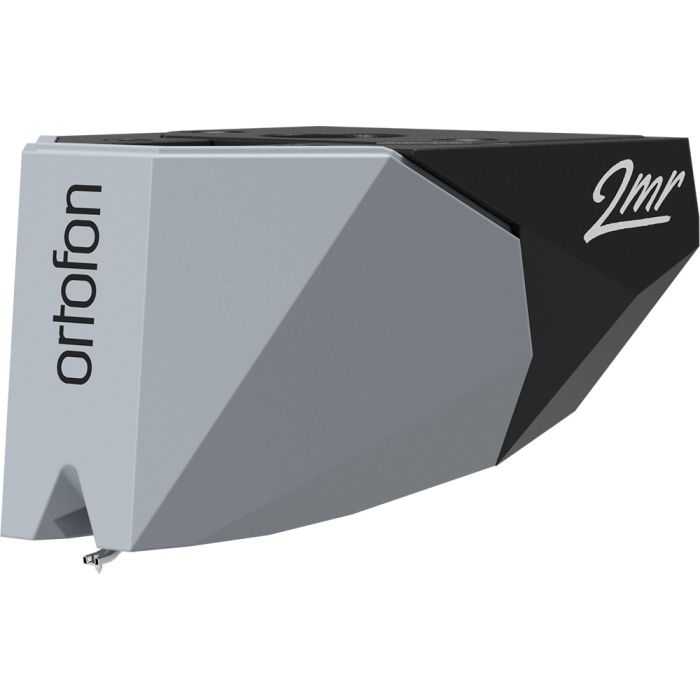

Ortofon 2MR 78 Phono Cartridge
You can earn loyalty points on every order you place on this website. If you select to create an account at checkout, your loyalty points will be saved and you can use these to discount future orders online.
Each product page shows you how many loyalty points you can earn when you order that item. Essentially, for each £1 you spend, you earn 1 loyalty point and for every 1 point earned, 1p will be added to your loyalty point balance (this is the same as some of the UK's biggest loyalty point cards). So for example, if you spend £500, you'll earn 500 loyalty points which can be used to discount a future order by £5.00.
Available - Usually ships within 2-3 days
Features
| Warranty The length of time your product is protected by warranty | 2 Years |
|---|---|
| Manufacturer | Ortofon |
Tech Specs
- Output voltage at 1000 Hz, 5cm/sec: 4 mV
- Channel balance at 1 kHz: -
- Channel separation at 1 kHz: -
- Channel separation at 15 kHz: -
- Frequency range at - 3dB: 20-22.000 Hz
- Frequency response: 20-20.000 Hz + 3 / - 1 dB
- Tracking ability at 315Hz at recommended tracking force: 70 µm
- Compliance, dynamic, lateral: 18 µm/mN
- Stylus type: Spherical
- Stylus tip radius: R 65 µm
- Tracking force range: 1,6-2,0g (16-20 mN)
- Tracking force, recommended: 1,8 g (18 mN)
- Tracking angle: 20°
- Internal impedance, DC resistance: 700 Ohm
- Internal inductance: 300 mH
- Recommended load resistance: 47 kOhm
- Recommended load capacitance: 150-300 pF
- Cartridge colour, body/stylus: Grey/Black
Description
Ortofon 2MR 78 moving magnet MM phono cartridge is essentially a less tall version of the excellent 2M 78, designed for turntables from brands like Rega where a low-form factor cartridge is needed and/or where VTA is not adjustable and the standard 2M model is too high.
This shorter height is also useful if you wish to upgrade your turntable with a thicker turntable mat or platter upgrade and need to account for this with a shorter height cartridge, again rather than adjusting VTA on the tonearm.
Key Features
- All-purpose cartridge that delivers an open, dynamic sound
- Tipped Elliptical diamond stylus profile
- Overhead mounting cartridge for installing into a headshell
- Moving magnet cartridge with removable stylus
- Utilises Ortofon's split-pole pin technology to reduce the eddy current and to get a flat frequency response, like with an MC cartridge
- Can be upgraded with other styli from the Ortofon 2M range
- Anti-resonant Hopelex body
- Reduced-height 2MR cartridge body
Press Reviews
'I felt very close to the actual performance......and found myself totally immersed in, and enjoying every minute of the music." (Hi-Fi World Magazine April 2013)
