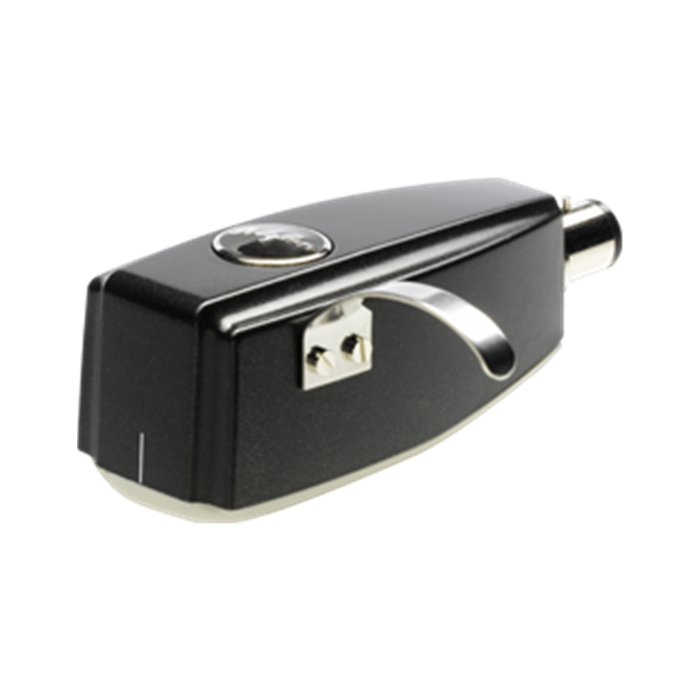

Ortofon SPU Classic G MkII MC Phono Cartridge
You can earn loyalty points on every order you place on this website. If you select to create an account at checkout, your loyalty points will be saved and you can use these to discount future orders online.
Each product page shows you how many loyalty points you can earn when you order that item. Essentially, for each £1 you spend, you earn 1 loyalty point and for every 1 point earned, 1p will be added to your loyalty point balance (this is the same as some of the UK's biggest loyalty point cards). So for example, if you spend £500, you'll earn 500 loyalty points which can be used to discount a future order by £5.00.
Available - Usually ships within 2-3 days
Features
| Warranty The length of time your product is protected by warranty | 2 Years |
|---|---|
| Manufacturer | Ortofon |
Tech Specs
Out volt @1kHz 5cm/sec: 200 µV
Channel balance @1kHz: < 1dB
Channel separation @1kHz: > 20 dB
Channel separation @ 15kHz: > 10 dB
Freq range at - 3dB20-25.000 Hz
Freq resp FIM: 20-20.000Hz +3/-1dB
Tracking ability @315Hz: > 65 µm
Compliance, dynamic, lateral: 8 µm/mN
Stylus type: Nude Elliptical
Stylus tip radius: r/R 8/18 µm
Tracking force range: 3.0-5.0g (30-50mN)
Tracking recommended: 4.0g (40mN)
Tracking angle: 20°
Internal impedance, DC resist: 6 Ohm
Recommended load impedance: > 10 Ohm
Cartridge Material: Grinded wood
Coilwire: High Purity Copper (OFC)
Cartridge colour: Black
Cartridge weight: 30 g
Description
The Ortofon Classic G E MkII SPU MC cartridge is similar to the standard Classic GM, but features an elliptical stylus, offering a more detailed sound reproduction and expansive imaging. The SPU Classic series embodies the essence of the original Moving Coils and are a perfect solution for the playback of both early and modern and contemporary stereo recordings.
SPU style cartridges are designed to fit onto old style tonearms which accept these type of cartridges and are not designed for use on most modern tonearms and turntables. If you are in doubt, please contact us before ordering for expert advice.
