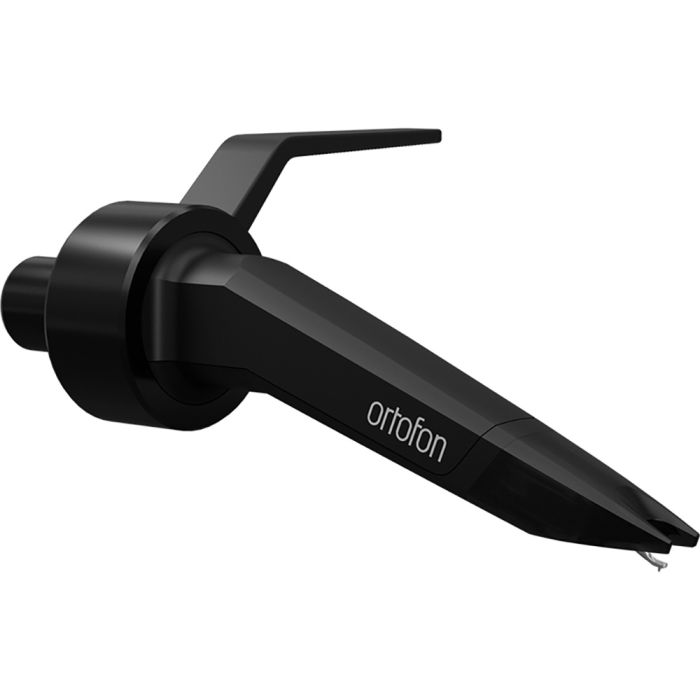

Ortofon Concorde Music Black Replacement Stylus
You can earn loyalty points on every order you place on this website. If you select to create an account at checkout, your loyalty points will be saved and you can use these to discount future orders online.
Each product page shows you how many loyalty points you can earn when you order that item. Essentially, for each £1 you spend, you earn 1 loyalty point and for every 1 point earned, 1p will be added to your loyalty point balance (this is the same as some of the UK's biggest loyalty point cards). So for example, if you spend £500, you'll earn 500 loyalty points which can be used to discount a future order by £5.00.
Available - Usually ships within 2-3 days
Features
| Warranty The length of time your product is protected by warranty | 2 Years |
|---|---|
| Manufacturer | Ortofon |
Tech Specs
- OUTPUT VOLTAGE - 6 mV
- CHANNEL BALANCE (@ 1000HZ) - 1 dB
- CHANNEL SEPARATION (@ 1000HZ) - 26 dB
- FREQUENCY RESPONSE +3 / -1DB - 20-20k Hz
- TRACKING ABILITY (@ 315HZ AT RECOMMENDED TRACKING FORCE) - 80 μm
- COMPLIANCE, DYNAMIC, LATERAL - 15 μm
- STYLUS TYPE - Nude Shibata
- STYLUS TIP RADIUS (R/R) - 6/50 μm
- RECOMMENDED TRACKING FORCE - 1.8 g
- INTERNAL IMPEDANCE - 1.27 Ω
- INTERNAL INDUCTANCE - 815 mH
- CANTILEVER MATERIAL - Aluminium Tube
- COIL WIRE MATERIAL - Silver Plater OFC Copper
- RECOMMENDED LOAD IMPEDANCE - 47 Ω
- RECOMMENDED LOAD CAPACITANCE - 150-300 pF
- CARTRIDGE WEIGHT - 18 g
Description
The Ortofon Concorde Music Black Replacement Stylus is the replacement stylus for the Red Phono Cartridge which can be found here.
