Ortofon DS-3 Digital Stylus Force Pressure Gauge
You can earn loyalty points on every order you place on this website. If you select to create an account at checkout, your loyalty points will be saved and you can use these to discount future orders online.
Each product page shows you how many loyalty points you can earn when you order that item. Essentially, for each £1 you spend, you earn 1 loyalty point and for every 1 point earned, 1p will be added to your loyalty point balance (this is the same as some of the UK's biggest loyalty point cards). So for example, if you spend £500, you'll earn 500 loyalty points which can be used to discount a future order by £5.00.
Only 2 in stock, order now
Features
| Warranty The length of time your product is protected by warranty | 2 Years |
|---|---|
| Manufacturer | Ortofon |
Tech Specs
- Sensitivity: 0.01g
- Weight range: 0.1g to 200g
- Battery: 2 x AAA
- Screen: LCD with backlighting
- Auto-off function: Yes
- Operating Temp: 10-30⁰C
- Dimensions (LWH): 120 x 60 x 17mm
- Weight: 70g
Description

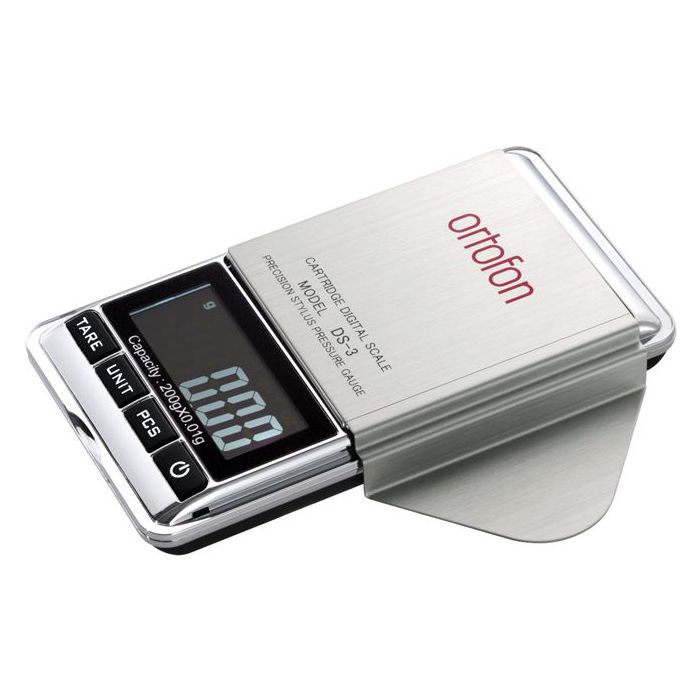

DS-3 is a digital stylus pressure gauge from Ortofon, their new model which is compact and lightweight. With the DS-3 you can accurately calibrate your turntable tonearm, it is a miniature ultra precision non-magnetic instrument, allowing high tolerance calibration. The DS-3 gauge has been carefully pre-calibrated to ensure highly accurate measurements with the tolerance of +/-0.01g.
How to use the DS-3
- Turn on the device by pressing ON button. The display will show 0000
- Press UNIT to select the measurement unit. The default setting is gram/g
- Place the stylus on the measurement plate on the right side of the device
- The display will start blinking and will stop when the measurement is completed
- The value displayed on the screen is the stylus pressure
- The display screen will automatically dim after 5 seconds of inactivity
- The display screen will automatically turn off after 60 seconds of inactivity
- When a battery runs out, a LO indicator will flash on the screen
Precautions
- Protect the device against high temperatures, dust and humidity
- Carefully lower the measurement object onto the measurement plate
- Do not place objects weighing more than 200g on measurement plate
- Placing the device on an uneven surface may lead to inaccurate measurements
