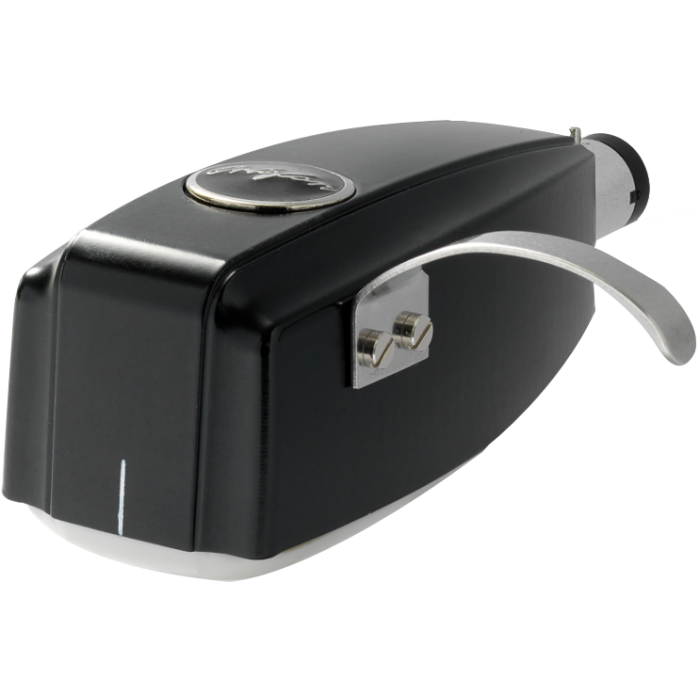

Ortofon SPU Mono CG 25 MkII Phono Cartridge
You can earn loyalty points on every order you place on this website. If you select to create an account at checkout, your loyalty points will be saved and you can use these to discount future orders online.
Each product page shows you how many loyalty points you can earn when you order that item. Essentially, for each £1 you spend, you earn 1 loyalty point and for every 1 point earned, 1p will be added to your loyalty point balance (this is the same as some of the UK's biggest loyalty point cards). So for example, if you spend £500, you'll earn 500 loyalty points which can be used to discount a future order by £5.00.
Available - Usually ships within 2-3 days
Features
| Warranty The length of time your product is protected by warranty | 2 Years |
|---|---|
| Manufacturer | Ortofon |
Tech Specs
Output voltage @1kHz, 5cm/sec: 1.5mV
Frequency range @-3dB: 20-18.000Hz
FIM distortion: 20-15.000Hz +3/-1dB
Tracking ability @315Hz: > 60µm
Compliance, dynamic, lateral: 7µm/mN
Stylus type: Spherical
Stylus tip radius: R25µm
Track force range: 3.0-4.0g (30-40mN)
Track force, recommended: 3.5g (35mN)
Tracking angle: 20°
Internal impedance/DC resistance: 6Ω
Recommended load impedance: > 100Ω
Cartridge Material: Grinded wood
Coilwire: High Purity Copper (OFC)
Cartridge colour: Black
Cartridge weight: 33 g
Description
The Ortofon Mono CG 25 MkII is an SPU-style Moving Coil (MC) cartridge with a spherical stylus profile, for the playback of early 25µm mono recordings. The CG 25 MkII provides an authentic method of playing back these early vinyl recordings with a remarkable level of sonic accuracy. This cartridge features a 1.5mV output, which makes it suitable for use with a variety of medium-gain moving coil transformers.
SPU style cartridges are designed to fit onto old style tonearms which accept these type of cartridges and are not designed for use on most modern tonearms and turntables. If you are in doubt, please contact us before ordering for expert advice.
