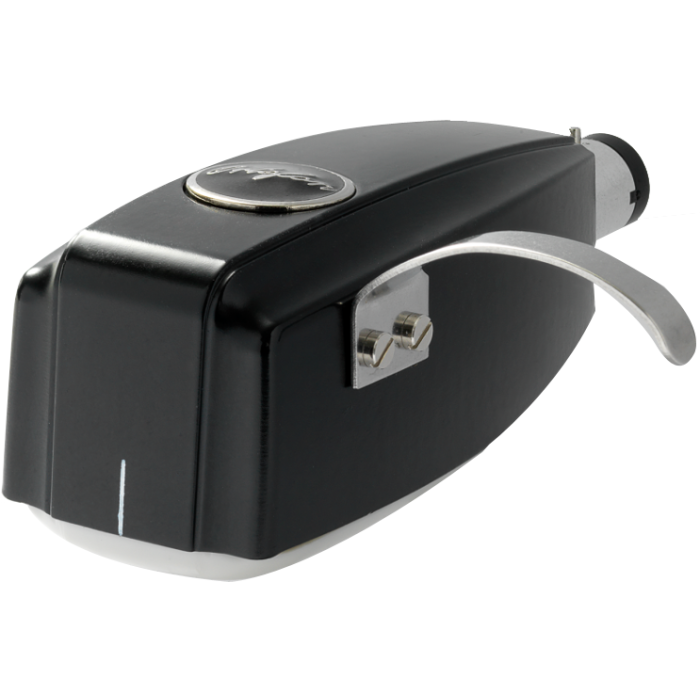

Ortofon SPU Mono CG 65 MkII Phono Cartridge
You can earn loyalty points on every order you place on this website. If you select to create an account at checkout, your loyalty points will be saved and you can use these to discount future orders online.
Each product page shows you how many loyalty points you can earn when you order that item. Essentially, for each £1 you spend, you earn 1 loyalty point and for every 1 point earned, 1p will be added to your loyalty point balance (this is the same as some of the UK's biggest loyalty point cards). So for example, if you spend £500, you'll earn 500 loyalty points which can be used to discount a future order by £5.00.
Available - Usually ships within 2-3 days
Features
| Warranty The length of time your product is protected by warranty | 2 Years |
|---|---|
| Manufacturer | Ortofon |
Tech Specs
- Output Volt @1kHz, 5cm/sec: 1.5mV
- Frequency Range @-3dB: 20-18k Hz
- FIM Distortion: 20-15.000Hz +3/-1dB
- Tracking Ability @315Hz: > 60µm
- Compliance, dynamic, lateral: 7µm/mN
- Stylus Type: Spherical
- Stylus Tip radius: R65µm
- Track Force range: 4.0-5.0g (40-50mN)
- Track Force, recommended: 4.5g (45mN)
- Tracking Angle: 20°
- Internal impedance/DC resistance: 6Ω
- Recommended load impedance: > 100Ω
- Cartridge Material: Grinded wood
- Coilwire: High Purity Copper (OFC)
- Cartridge Colour: Black
- Cartridge Weight: 33 g
Description
Ortofon Mono CG 65 MkII is an SPU-style Moving Coil (MC) type cartridge, specifically for reproducing early 78rpm and 65µm mono recordings. The CG 65 MkII uses a spherical stylus which results in a highly authentic method for the playback of early vinyl recordings, resulting in a remarkable level of sound accuracy, irrespective of the materials used to construct the record. The cartridge features a 1.5mV output, which makes it suitable for use with a variety of medium-gain moving coil transformers.
SPU style cartridges are designed to fit onto old style tonearms which accept these type of cartridges and are not designed for use on most modern tonearms and turntables. If you are in doubt, please contact us before ordering for expert advice.
