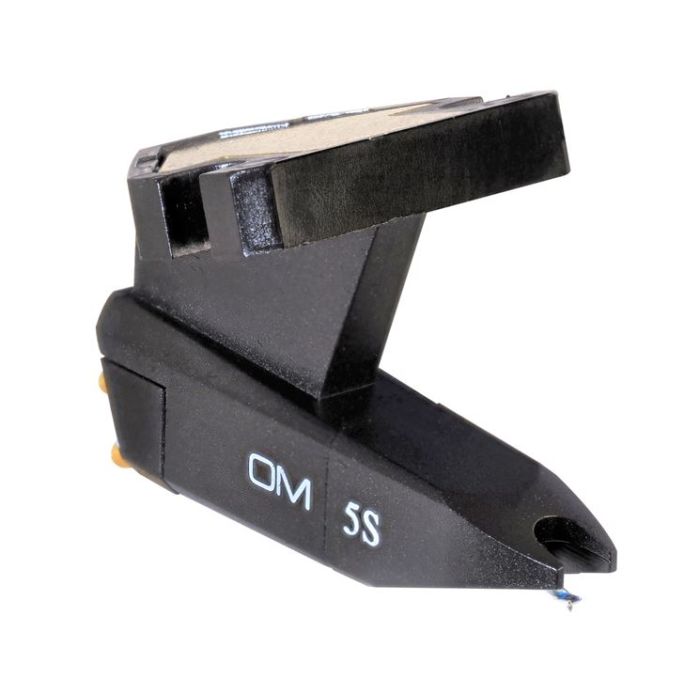

Ortofon OM5S MM Phono Cartridge
You can earn loyalty points on every order you place on this website. If you select to create an account at checkout, your loyalty points will be saved and you can use these to discount future orders online.
Each product page shows you how many loyalty points you can earn when you order that item. Essentially, for each £1 you spend, you earn 1 loyalty point and for every 1 point earned, 1p will be added to your loyalty point balance (this is the same as some of the UK's biggest loyalty point cards). So for example, if you spend £500, you'll earn 500 loyalty points which can be used to discount a future order by £5.00.
Only 2 in stock, order now
Features
| Warranty The length of time your product is protected by warranty | 2 Years |
|---|---|
| Manufacturer | Ortofon |
Tech Specs
- Frequency response - 20 Hz - 20 kHz: 20-20.000 Hz
- Stylus tip radius - R 18 µm
- Tracking force range - 1.5-2.0 g (15-20 mN)
- Tracking force, recommended - 1.75 g (17.5 mN)
- Tracking angle - 20°
- Cartridge weight - incl. extra weight 5 g, excl. extra weight 2.5 g
- Recommended load resistance - 47 kOhm
- Internal inductance - 450 mH
- Recommended load capacitance - 200-500 pF
Description
The Ortofon OM Series encompasses three basic cartridges: OM5S, OM 5E and Super OM 5E. With its classic design, the OM moving magnet cartridge has been featured on innumerable hi-fi turntables over many years, and the latest range gives turntable owners easy access to great sound at an affordable price.
The OM Series is the lowest-mass range of moving magnet (MM) cartridges offered by Ortofon, and combined with their minimal design allowing for easy mounting and alignment and clear, loud output for easy pairing with a phono stage, they fully justify their "Optimum Match" (OM) name.
As well as being easy to fit to any tonearm/headshell system, all OM cartridge bodies also benefit from a tiny, removable weight above the mounting bracket. For standard tonearms, leave the weight in place as usual. For low-mass tonearms, you have the ability to remove the weight, reducing the cartridge weigh to just 2.5g.
