Ortofon Quintet Mono MC Phono Cartridge
You can earn loyalty points on every order you place on this website. If you select to create an account at checkout, your loyalty points will be saved and you can use these to discount future orders online.
Each product page shows you how many loyalty points you can earn when you order that item. Essentially, for each £1 you spend, you earn 1 loyalty point and for every 1 point earned, 1p will be added to your loyalty point balance (this is the same as some of the UK's biggest loyalty point cards). So for example, if you spend £500, you'll earn 500 loyalty points which can be used to discount a future order by £5.00.
Available - Usually ships within 2-3 days
Features
| Manufacturer | Ortofon |
|---|---|
| Warranty The length of time your product is protected by warranty | 2 Years |
Tech Specs
- Output voltage: 0.3 mV
- Freq Range @-3dB: 20-25k Hz
- Frequency Response: +/-2.0 dB
- Tracking Ability: 70 μm
- Compliance, dynamic, lateral: 15 μm/mN
- Stylus type: Nude Elliptical
- Stylus tip radius: r/R 8/18 μm
- Track force range: 2.1-2.5g (21-25mN)
- Tracking force: 2.3 g (23 mN)
- Tracking angle: 20º
- Internal impedance: 5 Ohm
- DC resistance: 5 Ohm
- Load impedance: >20 Ohm
- Cartridge material: ABS/Aluminium
- Coil wire material: Pure 4-nines silver/Ag
- Cartridge colour: White
- Cartridge weight: 9g
Description

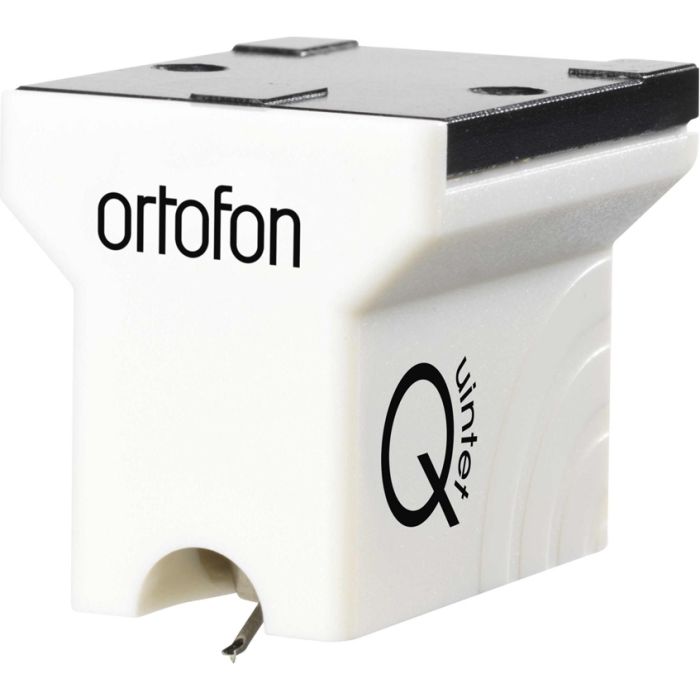

Ortofon Quintet Mono moving coil (MC) phono cartridge is the dedicated and best model in the Quintet range for playing monophonic records.
This cartridge features a Nude Elliptical stylus, which has been specifically designed to play mono microgroove vinyl records and consequently has an ability for extreme tracking accuracy, even with old worn or damaged recordings which ensures that the surface noise is controlled for.
The Ortofon Quintet Mono features a strapped output which results in the same output signal from both sets of pole pins. The strapped output practically reduces the need for mono-specific equipment, enabling you to experience authentic mono reproduction on a stereo system.
