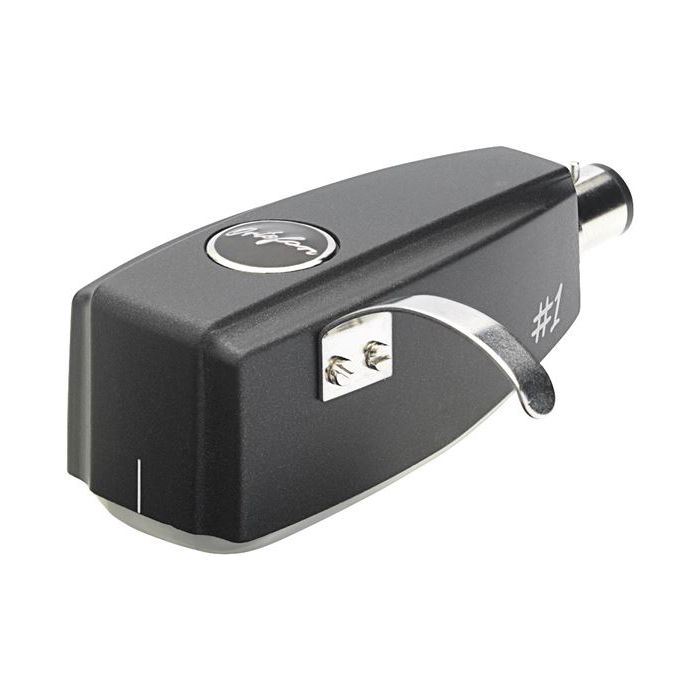

Ortofon SPU #1 E MC Phono Cartridge
You can earn loyalty points on every order you place on this website. If you select to create an account at checkout, your loyalty points will be saved and you can use these to discount future orders online.
Each product page shows you how many loyalty points you can earn when you order that item. Essentially, for each £1 you spend, you earn 1 loyalty point and for every 1 point earned, 1p will be added to your loyalty point balance (this is the same as some of the UK's biggest loyalty point cards). So for example, if you spend £500, you'll earn 500 loyalty points which can be used to discount a future order by £5.00.
Available - Usually ships within 2-3 days
Features
| Manufacturer | Ortofon |
|---|---|
| Warranty The length of time your product is protected by warranty | 2 Years |
Tech Specs
Out volt @1kHz: 0.18 mV 5cm/sec
Channel balance @1kHz: 1.5 dB
Separation at 1 kHz: 20 dB
Separation at 15 kHz: 10 dB
Freq response: 20Hz-25kHz (±3dB)
Tracking ability at 315Hz: 65 µm
Compliance/dynamic/lateral: 10 µm/mN
Stylus type: Eliptical
Stylus tip: R18µm / r/R 8/18 µm
Track force range: 3-5.0 g (30-50mN)
Tracking force: 4.0 g (40 mN)
Tracking angle: 20°
Internal impedance, DC resistance: 2 ohm
Recommended load impedance: > 10 ohm
Body: Ground wood and resin composite
Coilwire: High Purity Copper (OFC)
Cartridge weight: 30 g
Description
Ortofon new SPU #1 models are perfect all-rounders for the newcomers to the world of SPU.
Performance
The SPU #1 E has an Elliptical stylus providing more detailed sound reproduction and expansive imaging. It is made from high purity copper armature windings and terminal leads with ground wood and resin composite housing.
These SPU cartridges models have an excellent price-to-performance ratio, they are new complete all-rounders in the world of SPU.
Compatibility
The connection on the SPU #1 models, are universal, which give you the ability to mount these units in a wide range of tonearms, with universal SME mounts, for instance, Ortofon TA-110 and TA-210 tonearms. By combining an SPU #1, an ST-7 Moving Coil transformer and TA-110/TA-210 tonearms will guarantee a superior sound experience.
With the linearity of the SPU #1 and their full bodies, means they are a perfect for the playing stereo recordings. Acoustically, the SPU #1 models are genuine SPUs cartridges, known for their for producing deep and powerful musical images, whilst minimising intermodulation distortion and giving a highly impressive separation of the stereo channels..
