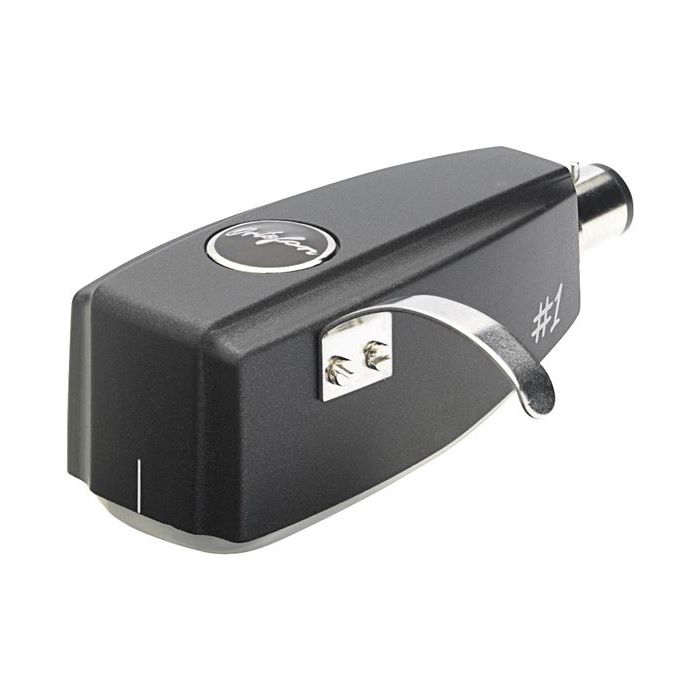

Ortofon SPU #1 S MC Phono Cartridge
You can earn loyalty points on every order you place on this website. If you select to create an account at checkout, your loyalty points will be saved and you can use these to discount future orders online.
Each product page shows you how many loyalty points you can earn when you order that item. Essentially, for each £1 you spend, you earn 1 loyalty point and for every 1 point earned, 1p will be added to your loyalty point balance (this is the same as some of the UK's biggest loyalty point cards). So for example, if you spend £500, you'll earn 500 loyalty points which can be used to discount a future order by £5.00.
Available - Usually ships within 2-3 days
Features
| Manufacturer | Ortofon |
|---|---|
| Warranty The length of time your product is protected by warranty | 2 Years |
Tech Specs
Out volt @1kHz: 0.18 mV 5cm/sec
Channel balance @1kHz: 1.5 dB
Separation at 1 kHz: 20 dB
Separation at 15 kHz: 10 dB
Freq response: 20Hz-25kHz (±3dB)
Tracking ability at 315Hz: 65 µm
Compliance/dynamic/lateral: 10 µm/mN
Stylus type: Spherical
Stylus tip: R18µm / r/R 8/18 µm
Track force range: 3-5.0 g (30-50mN)
Tracking force: 4.0 g (40 mN)
Tracking angle: 20°
Internal impedance, DC resistance: 2 ohm
Recommended load impedance: > 10 ohm
Body: Ground wood and resin composite
Coilwire: High Purity Copper (OFC)
Cartridge weight: 30 g
Description
Ortofon's new SPU #1 models are perfect comprehensive cartridge for an introduction to the world of SPU, this is the version featuring a spherical stylus.
Performance
The SPU #1 S uses a spherical stylus, crafted from high purity copper for the armature windings and terminal leads, housed within a grinded wood and resin composite case. All the SPU series cartridges are really good value for money, having an excellent price-to-performance ratio. The perfect all-rounders for the newcomers to the SPU world.
Compatibility
The SPU #1 range have a universal connector, giving them the versatility to be mounted on a wide range of tonearms, that have a universal SME mount, such as the Ortofon TA-110 or TA-210 tonearms. For a top quality audio experience with your turntable, combine the SPU #1, with a ST-7 Moving Coil transformer and a top quality tonearms (TA-110 or TA-210) and you will not be disappointed.
Designed specifically for stereo playback the SPU #1, has linearity and a full body, to give you the listener top quality sound from your turntable. In terms of sound quality the SPU #1 series are genuine SPUs, renowned for their full-bodied and highly powerful resulting musical image, an impressive channel separation, and minimum of inter-modulation distortion.
