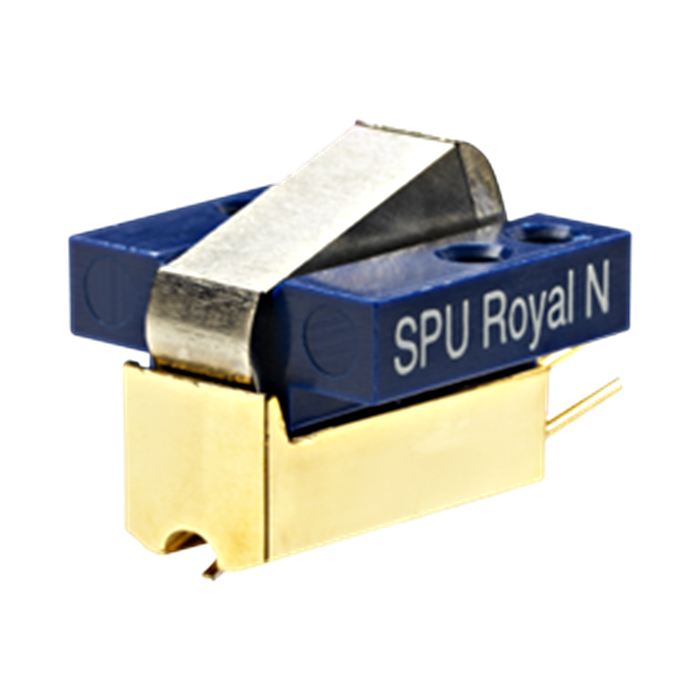

Ortofon SPU Royal N Phono Cartridge
You can earn loyalty points on every order you place on this website. If you select to create an account at checkout, your loyalty points will be saved and you can use these to discount future orders online.
Each product page shows you how many loyalty points you can earn when you order that item. Essentially, for each £1 you spend, you earn 1 loyalty point and for every 1 point earned, 1p will be added to your loyalty point balance (this is the same as some of the UK's biggest loyalty point cards). So for example, if you spend £500, you'll earn 500 loyalty points which can be used to discount a future order by £5.00.
Available - Usually ships within 2-3 days
Features
| Manufacturer | Ortofon |
|---|---|
| Warranty The length of time your product is protected by warranty | 2 Years |
Tech Specs
- Voltage: 0.2mV (@1kHz 5cm/sec)
- Channel balance @1kHz: <1dB
- Channel separation @1kHz: >25dB
- Channel separation @15kHz: >20dB
- Freq Resp: 20-20k Hz (-1.5/0dB)
- Tracking ability: @315Hz (>70μm)
- Compliance, dynamic, lateral: 8μm/mN
- Stylus: Nude Ortofon Replicant 100
- Stylus tip radius: r/R 5/100 µm
- Tracking force range: 2.5-3.5g (25-35mN)
- Tracking force recommend: 3.0g (30mN)
- Tracking angle: 20º
- Impedance, DC resistance: 6 ohm
- Recommended load impedance: >100 ohm
- Coilwire material: Electrum
- Cartridge Weight: 13 gram
Description
Ortofon SPU Royal N Phono Cartridge provides the same sound reproduction properties as the SPU Royal GM series but does not have an integrated headshell unit.
Performance
Electrum coils, consisting of a gold and silver alloy, provides uncoloured and precise transmission of armature movements while the slightly modified damping system makes it possible to reduce VTF and achieves a higher level of linearity.
The addition of Ortofon’s unique Replicant 100 stylus and reduced tip mass ensures open and detailed sound reproduction for a purely exquisite listening experience. High purity 6-nines copper wiring ensures impeccable signal transmission and preservation of the finest of microdynamic detail.
Headshell Unit
Listeners who wish to mount the SPU Royal N on a traditional headshell may do so by using SPU N adapter (sold separately). If you already own a vintage SPU-type headshell, you can use the Royal N to recreate an authentic and functional SPU cartridge.
Mounting
All SPU-cartridges are designed to bring optimum performance, when the tonearm mounted with the cartridge is adjusted parallel to the record surface, at recommended tracking force. When an antiskating adjustment is possible, Ortofon recommends a 50% higher value, when using SPU-cartridges with the Ortofon Replicant stylus, compared to normal setting at recommended tracking force.
