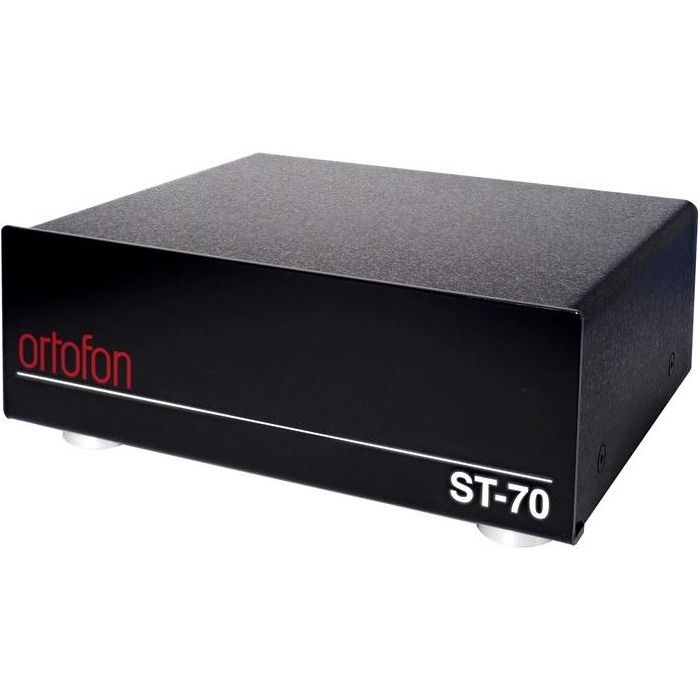

Ortofon ST-70 MC Step Up Transformer
You can earn loyalty points on every order you place on this website. If you select to create an account at checkout, your loyalty points will be saved and you can use these to discount future orders online.
Each product page shows you how many loyalty points you can earn when you order that item. Essentially, for each £1 you spend, you earn 1 loyalty point and for every 1 point earned, 1p will be added to your loyalty point balance (this is the same as some of the UK's biggest loyalty point cards). So for example, if you spend £500, you'll earn 500 loyalty points which can be used to discount a future order by £5.00.
Available - Usually ships within 2-3 days
Features
| Manufacturer | Ortofon |
|---|---|
| Warranty The length of time your product is protected by warranty | 2 Years |
Tech Specs
Configuration A:
- Recommended cartridge impedance: 5-50 Ω
- Gain: 24 dB at 1 kHz
- Frequency response: 10 Hz - 100 kHz ± 1 dB
- Recommended load: 47 KΩ // 200 pF
Configuration B:
- Recommended cartridge impedance: < 10 Ω
- Gain: 30 dB at 1 kHz
- Frequency response: 10 Hz - 80 kHz ± 1 dB
- Recommended load: 47 kΩ / 200 pF
General
- Dimensions (WHD): 58 x 135 x 150mm
- Weight: 1.233 kg
Description
Ortofon ST-70 is a MC Transformer designed to improve the overall performance of your vinyl hi-fi system. The ST-70 combines high-quality components with world-class engineering for unrivaled audio reproduction.
Quiet Transformer Design
Ortofon’s ST-70 transformer uses high-quality Lundahl transformers, which are surrounded by a specialized mu-metal shielding to prevent from internal and external interference. This design allows the ST-70 transformer to be quiet and revealing.
Dual Mono Design
The ST70 has a dual mono design, which ensures a discrete circuitry for each channel, resulting in the elimination of crosstalk and possible distortions. This means audio reproduction is clean and clear with a substantially improved stereo imaging, which delivers accurate tonal balance without coloration.
