Pathos Synapse Pre Amplifier
You can earn loyalty points on every order you place on this website. If you select to create an account at checkout, your loyalty points will be saved and you can use these to discount future orders online.
Each product page shows you how many loyalty points you can earn when you order that item. Essentially, for each £1 you spend, you earn 1 loyalty point and for every 1 point earned, 1p will be added to your loyalty point balance (this is the same as some of the UK's biggest loyalty point cards). So for example, if you spend £500, you'll earn 500 loyalty points which can be used to discount a future order by £5.00.
Available - Usually ships within 2-3 days
Features
| Manufacturer | Pathos Acoustics |
|---|---|
| Warranty The length of time your product is protected by warranty | 2 Years |
Tech Specs
- Inputs: 3 balanced XLR, 3 single ended RCA
- Outputs: 2 main balanced XLR
- Frequency response: 1Hz - 100KHz, (200KHz @ -3dB)
- THD: 0,04% @ 4 Vrms
- Volume control: 0,5dB - 168 steps
- Tubes: 4x 6H30
- Dimensions: 530mm (D) x 430mm (W) x 260mm (H)
- Weight: 23Kg
Description

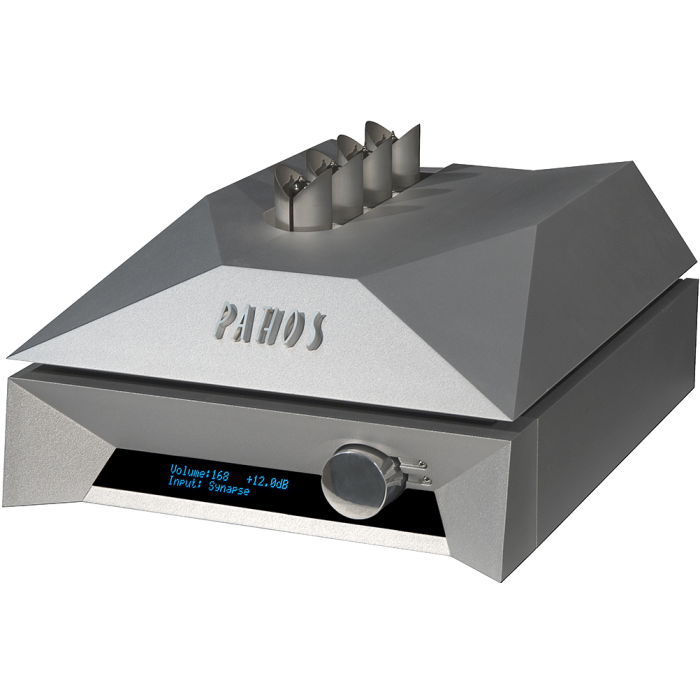

Pathos’ Synapse is a balanced two-stage stereo pre-amplifier that represents Pathos’ state-of-the-art technology. It is zero feedback, is entirely bi-monaural and has dual power supply, dual line stage, dual control signals, dual grounding, hybrid differential line stage with dual transistor, triodes and MOSFET and direct coupling class A. It is the perfect partner for an amplifier like Pathos’ Adrenalin.
Components are Completely Separated
Synapse has separated the power stage from the signal stage to keep the electrically noisy parts from interfering with the audio signal. To do this the Synapse fuses two chassis. One section has the power supply and all the control logic, including the fluorescent display, while the other section contains the stages of analogue signal management.
You may even describe this pre-amplifier as a three chassis unit because the line stages of two channels are completely separated on the power supply and ground level. Complete separation keeps each component from being interfered.
Zero Ground Loop
Photo couplers are used to guarantee the circuits are separated between the power/display section and the other two stages. Because of this layout, there is no ground loop. There’s a complete electrical disconnection of all inputs, so that only the selected input is electrically connected to its line stage while all others are open including ground level.
Synapse’s Volume Memory
A remarkable characteristic of the Synapse is the memory of set level on each input to avoid annoying volume changes when changing from one input to another. Total amplification may be fixed at 0dB, +6dB or +12dB allowing you to take full advantage of the sophisticated level regulators that permit the use of centre width and have a good resolution on the setting.
Synapse Display
The fluorescent user display is a really nice feature that shows useful information needed during use such as selected input, attenuation, channel balance, input disabling, gain block of inputs, customization of inputs name and gain setting etc.
