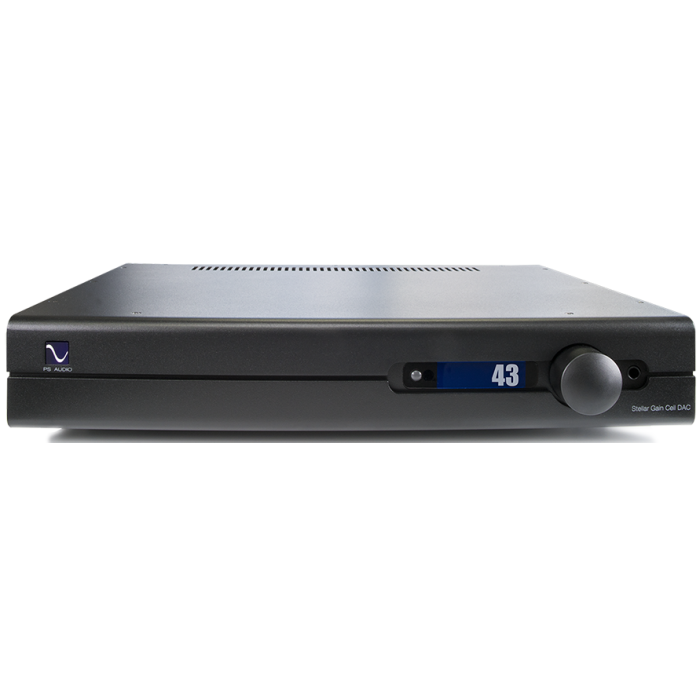

PS Audio Stellar Gain Cell DAC and Pre Amplifier-Nearly New
You can earn loyalty points on every order you place on this website. If you select to create an account at checkout, your loyalty points will be saved and you can use these to discount future orders online.
Each product page shows you how many loyalty points you can earn when you order that item. Essentially, for each £1 you spend, you earn 1 loyalty point and for every 1 point earned, 1p will be added to your loyalty point balance (this is the same as some of the UK's biggest loyalty point cards). So for example, if you spend £500, you'll earn 500 loyalty points which can be used to discount a future order by £5.00.
Only 1 in stock
Features
| Manufacturer | PS Audio |
|---|---|
| Warranty The length of time your product is protected by warranty | 3 Years |
Tech Specs
- Input Power: Model specific 100VAC, 120VAC, or 230VAC 50 or 60Hz
- Power Consumption: 20W
- Mains Power Input: IEC C14
- Fuses: 100V T250V-2.0AH (2A Slow Blow) // 120V T250V-1.6AH (1.6A Slow Blow) // 230V T250V-1.0AH (1.0A Slow Blow)
- Analogue inputs: RCA x3 stereo pair, XLR x 1 stereo pair
- Digital audio inputs: I2S x1 PCM (384KHz max) DSD64 DSD128, Coax x2 PCM (192KHz max), Optical x1 PCM (96KHz max), USB 1x PCM (384KHz max) DSD64 (DoP) DSD128 (DoP)
- Analog Audio Outputs: RCA x1 stereo unbalanced pair, XLR x1 stereo balanced pair, 1/4" headphone connector x1
- Analogue Performance
- Gain: 12dB +/-0.5dB
- Maximum output: 20 Vrms
- Sensitivity: 5.3Vrms
- Input Impedance: 47KΩ single-ended RCA, 100KΩ Balanced XLR
- Output Impedance: 100Ω single-ended RCA, 200Ω balanced XLR
- Frequency Response: 20Hz – 20KHz +0/- 0.25dB, 10Hz – 100KHz +0.1/-3.0dB
- Noise: 20-20KHz <-90dBV
- S/N Ratio: 1KHz <110dB (max output)
- Channel separation: 1KHz <90dB
- nput separation: 1KHz <90dB
- THD & IM: 1KHz < 0.025%, 20-20KHz < 0.05%
- Headphone Performance
- Output power @1% THD: 300Ω 300mW, 16Ω 3.25W
- S/N Ratio 1kHz: >95dB (max output)
- Noise: <-80dBV
- THD & IM 1Vrms out: 300Ω <0.05%, 16Ω <0.06%
- Output impedance: <4 Ω
- Volume Control: 0-100 (1/2 and 1dB steps, 80dB total range)
- Balance Control: 24dB each direction in 1/2dB steps
- Home Theater Mode: Assignable to any analogue input, - Adjustable (in setup) to any level
- Polarity (phase) Control: Digital sources only
- Filter Control: 3 selectable digital filters (PCM digital sources only)
- Trigger output: (3.5mm 5-15VDC) 2
- Remote Control: Yes, InfraRed
- Unit Weight: 13.5 lbs [6.1 kg]
- Unit Dimensions: 17” x 12” x 3”
- Shipping Weight: 17 lbs [7.7 kg]
- Shipping Dimensions: 23”x 18” x 9”
Description
This PS Audio Stellar Gain Cell DAC and Pre Amplifier in Black has been briefly used but is in close to new condition, with a slightly tatty box from being opened and resealed - but will be carefully secured for safe delivery. We only have 1 unit at this price - the offer will disappear once sold.
For more info on this model, see our main PS Audio Stellar Gain Cell DAC and Pre Amplifier page
