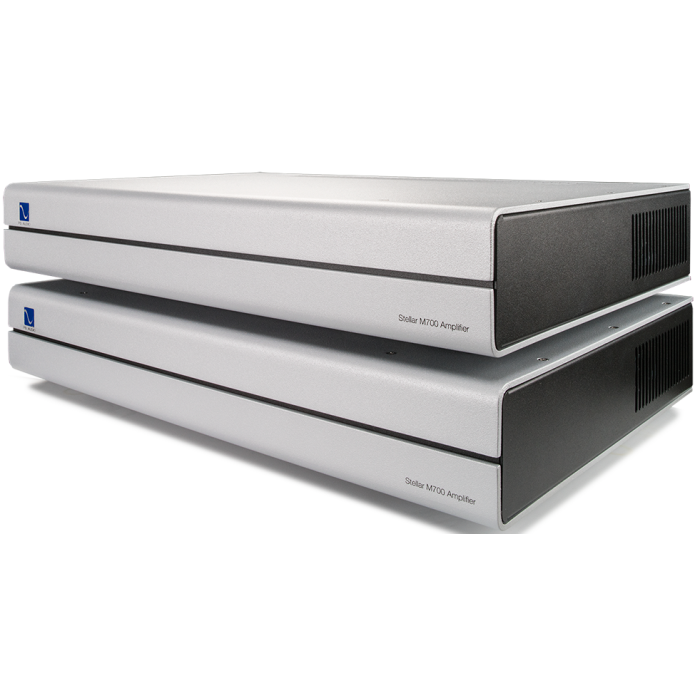

PS Audio Stellar M700 Mono Power Amplifier (Pair)
You can earn loyalty points on every order you place on this website. If you select to create an account at checkout, your loyalty points will be saved and you can use these to discount future orders online.
Each product page shows you how many loyalty points you can earn when you order that item. Essentially, for each £1 you spend, you earn 1 loyalty point and for every 1 point earned, 1p will be added to your loyalty point balance (this is the same as some of the UK's biggest loyalty point cards). So for example, if you spend £500, you'll earn 500 loyalty points which can be used to discount a future order by £5.00.
Features
| Manufacturer | PS Audio |
|---|---|
| Warranty The length of time your product is protected by warranty | 3 Years |
Tech Specs
- Unit Weight: 13 lbs [5.9 kg] (each)
- Unit Dimensions: 17”W x 3”H x 12”D (13"D w/connectors)
- 17”W x 6”H x 12”D (Stacked)
- Shipping Weight: 16.5 lbs [7.5 kg] (each)
- Shipping Dimensions: 22”W x 8”H x 17”D (each)
- Audio Inputs: RCA (Unbalanced)
- XLR (Balanced)
- Speaker Outputs: Copper base nickel plated binding posts (2 pair)
- DC Trigger Input: 3.5mm 5-15VDC
- Signal
- Gain: 30.5dB +/-0.5dB
- Sensitivity for rated output power: 1.6V
- Noise: 1kHz@700 Watts < -105dB
- Input impedance: Unbalanced 50KΩ
- Balanced 100KΩ
- Output Impedance: 50Hz, 2.8VRMS <0.007Ω
- Damping factor: 50Hz. 2.8VRMS
- 8Ω >1100
- 4Ω >550
- Frequency Response: 2.8VRMS into 4Ω
- 10Hz – 20KHz +/- 0.5dB
- 10Hz – 50KHz +0.1/-3.0dB
- THD&IM:
- 1KHz, 1W/4Ω <0.02%
- 10-20KHz, 1W/4Ω <0.02%
- 10-50KHz, 1W/4Ω < 0.05% (90kHz BW)
- 1KHz, 87.5W/4Ω < 0.015%
- Output Power:
- 120vac mains, 1kHz, 1% THD
- 8Ω: 350W minimum
- 4Ω: 700W minimum
- 2Ω: Stable for musical transients
Description
PS Audio Stellar M700 Mono Power Amplifier has 700W of analog cell power and offers complete authority over your speakers. The M700 combines a Class D output stage with the Class A Analog Cell input stage for a Stellar performance.
Great Power
The Stellar M700 mono amp is able to drive some of the most demanding loudspeakers to extremely high levels with its capacity to deliver 350W into 8 ohms and 700W into 4 ohms. When used with your hi-fi set-up, a pair of the M700 mono amps will achieve exceptional power and great headroom to effortlessly render your favourite music pieces.
Best Of Both Worlds
PS Audio’s Stellar M700 is a hybrid amp designed by audio expert, Darren Myers. It combines the best of both worlds with an ultra-linear, high current Class D output stage and a zero feedback, low impedance Class A MOSFET based Analog Cell for the input stage.
Analog Cell
The Analog Cell achieves an immersive three-dimensional soundstage that would make you believe you were in a live concert venue. It makes sure that the richest details are preserved and that subtle details are handled delicately without compromising the quality of dynamics from your speakers.
Class D Output
Combined with the sonic advantages of the Analog cell, the Class D output stage holds great authority and control over your loudspeakers, delivering superb power and performance.
