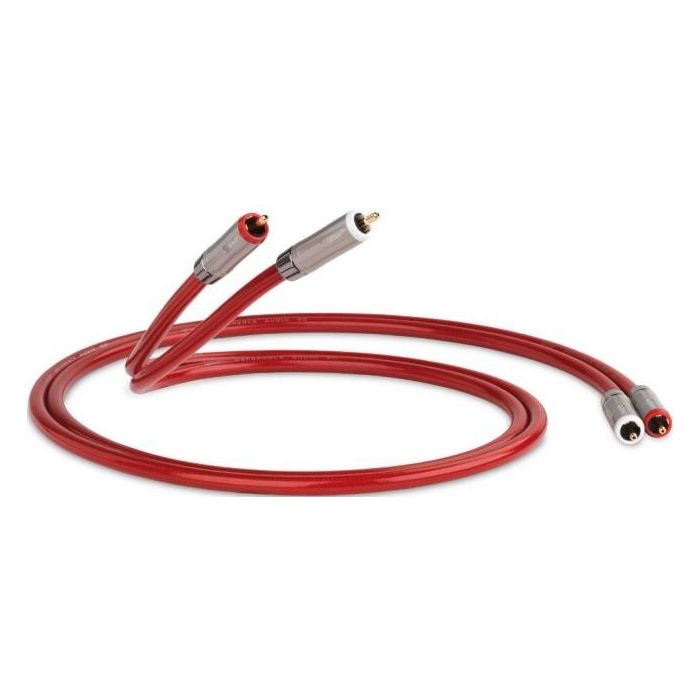

QED Reference Audio 40 RCA Interconnects
You can earn loyalty points on every order you place on this website. If you select to create an account at checkout, your loyalty points will be saved and you can use these to discount future orders online.
Each product page shows you how many loyalty points you can earn when you order that item. Essentially, for each £1 you spend, you earn 1 loyalty point and for every 1 point earned, 1p will be added to your loyalty point balance (this is the same as some of the UK's biggest loyalty point cards). So for example, if you spend £500, you'll earn 500 loyalty points which can be used to discount a future order by £5.00.
Features
| Connectors | RCA to RCA |
|---|---|
| Manufacturer | QED Cables |
| Warranty The length of time your product is protected by warranty | Lifetime |
Tech Specs
- Silver Plated 99.999% Oxygen Free Copper (SPOFC) conductors with LDPE dielectric
- Asymmetrical twisted pair geometry
- OFC shield giving 100% electromagnetic screening
- Zn/Mn ferrite Jacket
- Gold plated QED ‘Analoc’ RCA plugs
- Capacitance: 76pF/m
- Inductance: 0.37uH/m
- Loop resistance: 0.072 Ω/m
- Dissipation Factor: 0.0059
Description
QED Reference Audio 40 RCA interconnect cable is an entirely new design concept. The cable is designed primarily for low capacitance as this has been identified by QED as a significant factor which leads to a high fidelity experience, making for a tight sound and retaining the rhythm of the original piece.
Add QED's Complementary Conductor Technology for high frequency detail and Analoc Technology to maximise signal integrity and the result is what we feel to be the most innovative interconnect ever made by QED
Complimentary Conductor Technology
This innovation utilises two conductors of different diameters to carry the same audio signal. This has the effect of providing an alternative path for high frequency audio components which might otherwise become time smeared in a single audio pathway.
Foamed Polyethylene Dielectric
Foamed Polyethylene has a low dielectric constant and has been used to cut down on the amount of audio signal energy lost due to cable capacitance.
Analoc Locking RCA Plugs
The new QED Analoc plug is a low eddy current design featuring small high purity copper conductors in place of the usual large volume brass body found in ordinary high quality plugs.
This cuts down or eliminates the tendency for the changing magnetic field in the conductor to induce eddy currents which can affect the micro-timing of the audio signal.
Press Reviews
'An impressive stereo interconnect that ushers through a high-quality sound' (What Hi-Fi Magazine)
