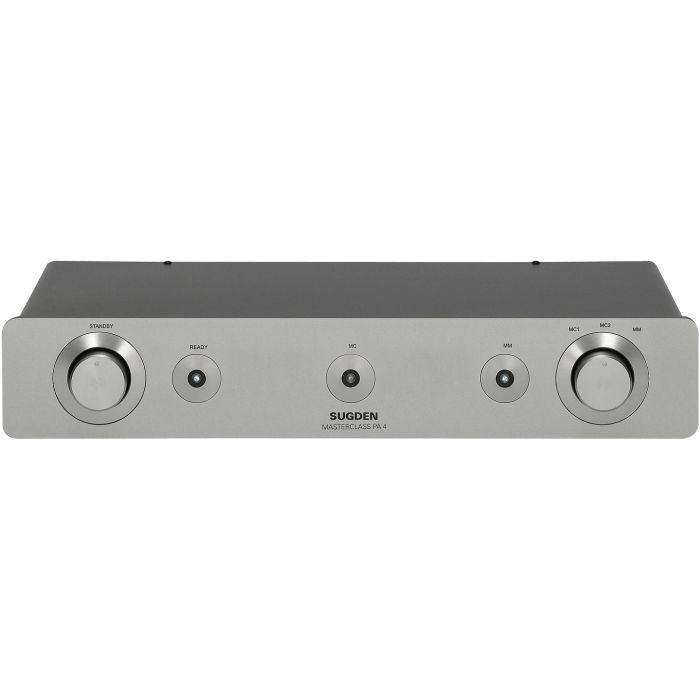

Sugden Masterclass PA-4 Phono Stage
You can earn loyalty points on every order you place on this website. If you select to create an account at checkout, your loyalty points will be saved and you can use these to discount future orders online.
Each product page shows you how many loyalty points you can earn when you order that item. Essentially, for each £1 you spend, you earn 1 loyalty point and for every 1 point earned, 1p will be added to your loyalty point balance (this is the same as some of the UK's biggest loyalty point cards). So for example, if you spend £500, you'll earn 500 loyalty points which can be used to discount a future order by £5.00.
Features
| Manufacturer | Sugden |
|---|---|
| Warranty The length of time your product is protected by warranty | 2 Years |
Tech Specs
- Inputs: 2 stereo moving coil inputs
- Outputs: 2 line level
- Ouput: 360mV
- Input Sensitivity: MC 0.15mV, MM 3.5mV
- Loading: MC 470 & 100 Ohms, MM 47K
- Signal to Noise: -70dB
- Frequency Response: +/- 0.3dB 30Hz - 30kHz
- Weight: 6 (kg)
- Dimensions: 110H x 430W x 330D (mm)
Description
This PA-4 is a dual mono, two stage, Class A phono stage, retrieving the full potential of the musical magic contained on your vinyl. This can only be realised by the passionate treatment of the low level signals emanating from the disc and stylus. Class A circuitry is renowned for its recovery of and synergy with, low level signals and Sugdens is synonymous with Class A circuitry.
The moving coil stage is a Class A current feedback circuit and the moving magnet amplifier a Class A voltage feedback circuit incorporating the RIAA correction in the negative feedback loop. DC servo circuits enable direct coupling of the musical signal from moving coil input to final output.
The power supply is a ‘current shunt’ design with a specially designed voltage regulator to prevent rising impedance with higher frequencies. Constructed with components of exceptional quality, hand assembled on long term stability gold plated circuit boards.
The resultant performance is a phono stage of absolute transparency and natural sound, suitable for enjoying a range of music from a range of moving magnet or moving coil cartridges.
