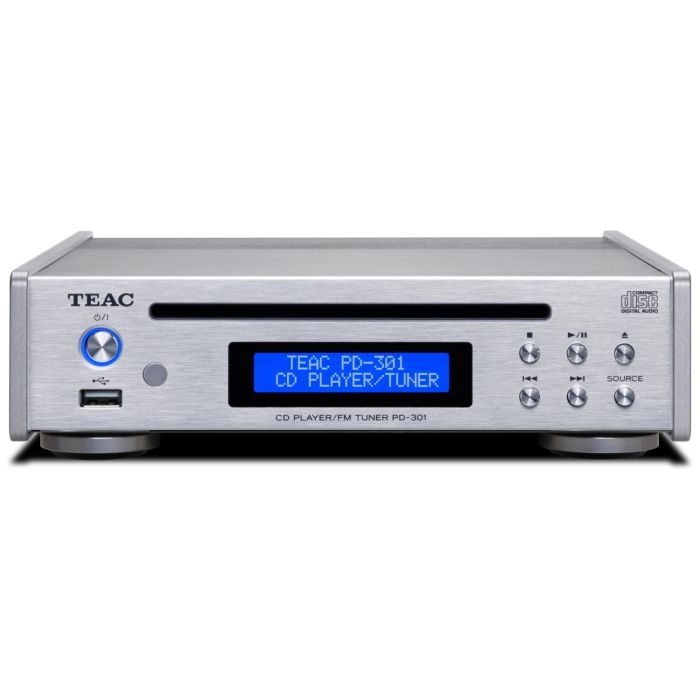

TEAC PD-301DAB-X CD Player
You can earn loyalty points on every order you place on this website. If you select to create an account at checkout, your loyalty points will be saved and you can use these to discount future orders online.
Each product page shows you how many loyalty points you can earn when you order that item. Essentially, for each £1 you spend, you earn 1 loyalty point and for every 1 point earned, 1p will be added to your loyalty point balance (this is the same as some of the UK's biggest loyalty point cards). So for example, if you spend £500, you'll earn 500 loyalty points which can be used to discount a future order by £5.00.
Features
| Manufacturer | TEAC Audio |
|---|---|
| Warranty The length of time your product is protected by warranty | 2 Years |
Tech Specs
CD Player Section
- Supported media: CD-DA, CD-ROM, CD-R, CD-RW* (8cm CDs not supported)
- Max number of files: 300 (including Folders)
- Max number of folders: 50
- Max number of layers: 16 (Max path name: 260 characters including file name)
USB Section
- Supported USB devices:USB Mass Storage device class
- Interface: USB2.0 (Full speed), USB1.0 (High speed), USB3.0 compatible
- File System: FAT16, FAT32
- Max number of files: 300 (including folders)
- Max number of folders: 50
- USB bass power: DC 5V, max 500mA
WAC (USB Only)
- Extension: .wav, .WAV
- Bit depth: 16-bit
- Sampling frequency: 44.1k, 48kHz
MP3
- Extension: .mp3, .MP3
- Bit-rate: 32k to 320kbps and VBR
- Sampling frequency: 16k, 22.05k, 24k, 32k, 44.1k, 48kHz
- Format: MPEG1/2 Audio Layer-3
WMA
- Extension: 32k to 320kbps and VBR
- Bit-rate: 32k to 320kbps and VBR
- Sampling frequency: 8k, 11.025k, 16k, 22.05k, 32k, 44.1k, 48kHz
- Format: WMA ver.9 standard (DRM not supported)
AAC (USB Only)
Extension .m4a, .M4A
Bit-rate 8k to 320kbps and VBR
Sampling frequency 8k, 11.025k, 12k, 16k, 22.05k, 24k, 32k, 44.1k, 48kHz
Format MPEG4 AAC-LC (Audio stream)
Tuner Section
- Band: DAB Band-III, FM
- Frequency range DAB: 174 to 240MHz
- FM: 76.0 to 108.9MHz
- Number of Presets DAB: 10
- FM: 20
Audio Outputs
Analogue audio
- Connector: RCA Pin x 1 pair
- Impedance: 470 ohms or less
- Max output level: 2.0Vrms (1kHz, Full scale, 10k ohms loaded)
- Frequency response: 20Hz to 10kHz (-3dB)
- Signal-to-Noise ratio: 113dB
- Total harmonic distortion: 0.005% (1kHz)
Coaxial digital audio
- Connector: RCA Pin x 1
- Impedance: 75 ohms
- Output level: 0.5Vp-p
Optical digital audio
- Connector: TOS-link x 1
- Sampling frequency: 44.1kHz
- Bit depth: 16-bit
General
- Operating power: AC 100-240V, 50/60Hz
- Power consumption: 8W
- Overall dimensions: (W x H x D) 8.5” x 2.4” x 9.4” / 215 x 61 x 238mm
- Net weight: 4.6 lbs. / 2.1kg
Description
TEAC PD-301DAB-X CD Player with high performance DAC gives you everything you need for your musical needs. It is a CD player, USB memory player and FM tuner all in one, providing you with many ways to listen to your favourite tracks and radio stations.
Built in DAB/FM Tuner
The PD-301DAB-X benefits from an advanced circuit design which enables the delivery of high quality analogue sound to your amplifier. Unlike many other CD players, this model incorporates an integrated DAB/FM tuner within it's compact cabinet. Digital optical and coaxial outputs deliver audio signals from CD, USB and the built in DAB/FM tuner.
Slot-Load CD Drive Mechanism
TEAC PD-301DAB-X CD Player is a versatile little unit that can be easily placed within any home audio system. Whilst being perfect for use in the home, it has a compact CD drive mechanism designed especially for audio applications. This high precison slot load cd-drive ensures very fast loading times and auto playback function. This means you can enjoy your music just seconds after inserting a CD into the slot.
Robust Design with Small Footprint
Crafted in robust aluminium for the body and panels means the The PD-301DAB-X is exceptionally well built, and provides brilliant rigidity, minimising detrimental effects of unwanted vibrations on audio quality. For a CD player so robust, its dimensions are tiny. The compact size and small footprint allow the The PD-301DAB-X to be placed on even the smallest of desktops comfortably.
Key Features
- Program playback (CD-DA only)
- Shuffle and Repeat playback
- Song title and artist name display (ID3 tag required)
- Selectable Folder/File browse modes
- Analogue LINE audio output via RCA Pin
- Card-type Remote Control
- Full-metal body
- Auto power-saving (can be disabled)
- RoHS compliant
Customer Reviews
TEAC magic.
