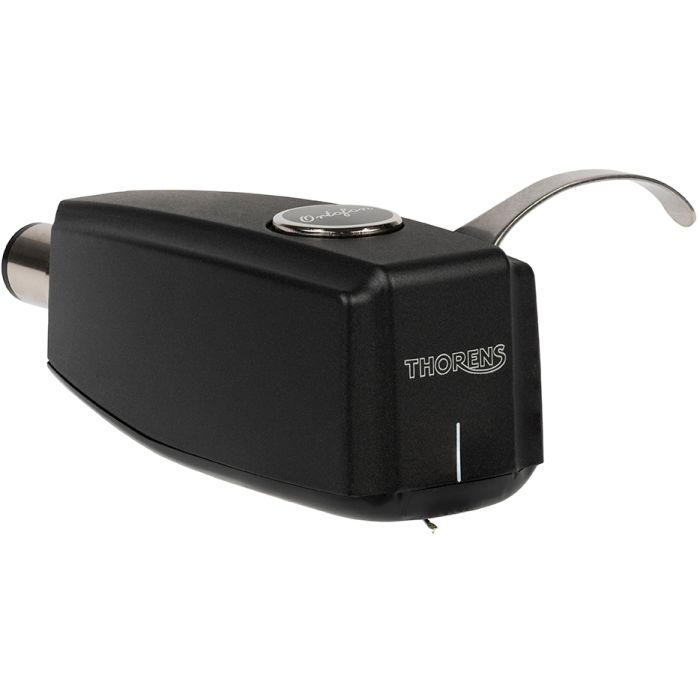

Thorens SPU 124 Phono Cartridge
You can earn loyalty points on every order you place on this website. If you select to create an account at checkout, your loyalty points will be saved and you can use these to discount future orders online.
Each product page shows you how many loyalty points you can earn when you order that item. Essentially, for each £1 you spend, you earn 1 loyalty point and for every 1 point earned, 1p will be added to your loyalty point balance (this is the same as some of the UK's biggest loyalty point cards). So for example, if you spend £500, you'll earn 500 loyalty points which can be used to discount a future order by £5.00.
Available - Usually ships within 2-3 days
Features
| Manufacturer | Thorens |
|---|---|
| Warranty The length of time your product is protected by warranty | 3 Years |
Tech Specs
- Output voltage at 1000 Hz, 5cm/sec. - 0.5 mV
- Channel balance at 1 kHz < 1.5 dB
- Channel separation at 1 kHz > 23 dB
- Channel separation at 15 kHz > 15 dB
- Frequency response - 20-20.000 Hz ± 2 dB
- Tracking ability @315Hz, force > 70 µm
- Compliance, dynamic, lateral - 8 µm/mN
- Stylus type - Nude elliptical
- Stylus tip radius - r/R 8/18 µm
- Tracking force range - 2.5-3.5g
- Tracking force, recommended - 3.0g
- Tracking angle - 20°
- Internal impedance, DC resistance - 2 ohm
- Recommended load impedance - 10 - 50 ohm
- Cartridge weight - 30 g
Description
Thorens’ SPU 124 cartridge is a modernised version of the classic SPU design. It has been designed with several improvements for optimum compatibility for the Thorens TD 124 DD turntable. The TD 124 DD is Thorens’ modern revival one of the most legendary turntables in the brand’s history.
SPU 124 Upgrades
The SPU 124 features a revised generator system, which allows for a maximum output of 0.5 mV, relaxing the requirement for high gain transformer or active pre-amplification systems.
Still making use of a highly polished Nude Elliptical stylus, the stylus tip mass has been reduced significantly, resulting in reduced VTF and higher tracking ability.
Ortofon Classic SPU Design
Ortofon developed the classic SPU Cartridge 60 years ago. It has a classic signature sound that vintage audiophiles love to hear and isn’t found across any other vintage cartridge. Thorens’ have built on this legendry cartridge to give the SPU 124/TD 124 DD turntable class.
