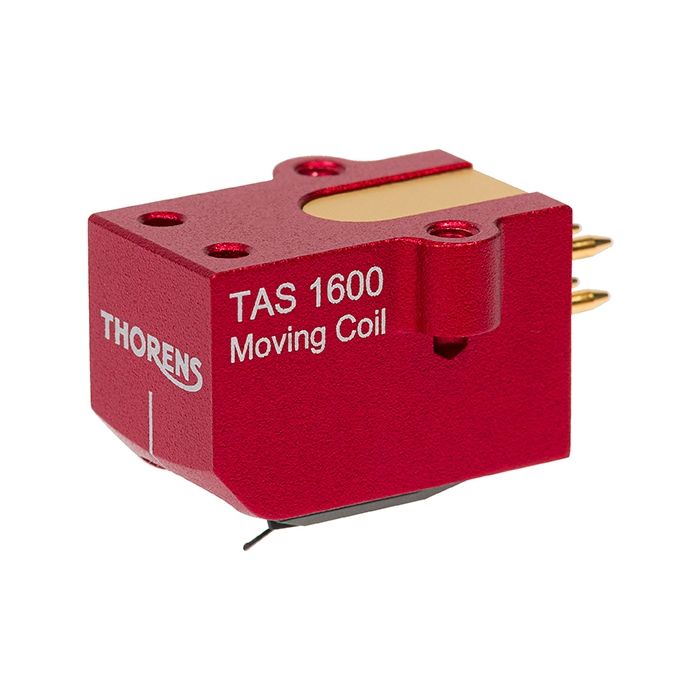

Thorens TAS 1600 MC Phono Cartridge
You can earn loyalty points on every order you place on this website. If you select to create an account at checkout, your loyalty points will be saved and you can use these to discount future orders online.
Each product page shows you how many loyalty points you can earn when you order that item. Essentially, for each £1 you spend, you earn 1 loyalty point and for every 1 point earned, 1p will be added to your loyalty point balance (this is the same as some of the UK's biggest loyalty point cards). So for example, if you spend £500, you'll earn 500 loyalty points which can be used to discount a future order by £5.00.
Available - Usually ships within 2-3 days
Features
| Manufacturer | Thorens |
|---|---|
| Warranty The length of time your product is protected by warranty | 3 Years |
Tech Specs
- Mounting: 1/2” centers / Threaded inserts
- Frequency Response: 20 - 50,000 Hz
- Body: Aluminum
- Channel Separation: 28 dB (1 kHz)
- Output Channel Balance: 0.5 dB (1 kHz)
- Output Voltage: 0.4 mV (1 kHz, 5 cm/sec)
- Vertical Tracking Angle: 20 degrees
- Tracking force, recommended: 1.8 to 2.2 g (standard 2.0 g)
- Stylus Shape: Special Line Contact
- Stylus Size: 1.5 x 0.28 mil
- Stylus Construction: Nude rectangular shank
- Cantilever: 0.28 mm Ø nude boron
- Coil Impedance: 12 Ohms (1 kHz)
- Coil Inductance: 25 μH (1 kHz)
- DC Resistance: 12 Ohms
- Static Compliance: 22 x 10 – 6 cm / dyne
- Dynamic Compliance: 18 x 10 – 6 cm / dyne (100 Hz)
- Terminal Pins: Brass
- Wire Used for Coil: PCOCC (Copper by Ohno Continuous Casting process)
- Recommended Load Impedance: min 100 Ohms
- Cartridge: Weight 8.2 g
Description
Thorens’ TAS 1600 is a newly developed Japanese-made low output MC phono cartridge that is specially developed for the Thorens’ TD 1600 and TD 1601 turntables.
Phono Compatibility
The TAS1600 output voltage is 0.4 millivolts at 5.5 cm/s, which is a sufficient level to harmonize with most common phono preamplifiers.
TAS1600 Diamond design
The TAS1600 cartridge has a line contact, diamond stylus that's attached to a boron cantilever. This design delivers every last musical note captured from the record groove. It has an internal resistance of 12 ohms, which feels in good hands at a terminating resistor of> 100 ohms.
