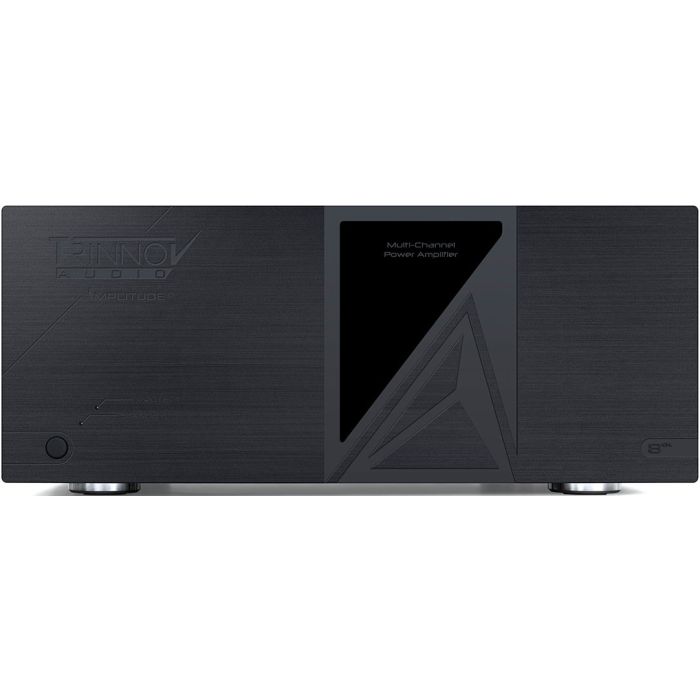

Trinnov Amplitude 8m Eight Channel Class D Power Amplifier
This item isn't available to buy online. Please contact us to order or for more information.
You can earn loyalty points on every order you place on this website. If you select to create an account at checkout, your loyalty points will be saved and you can use these to discount future orders online.
Each product page shows you how many loyalty points you can earn when you order that item. Essentially, for each £1 you spend, you earn 1 loyalty point and for every 1 point earned, 1p will be added to your loyalty point balance (this is the same as some of the UK's biggest loyalty point cards). So for example, if you spend £500, you'll earn 500 loyalty points which can be used to discount a future order by £5.00.
Available. To discuss, call 0121 224 7300/7401
Features
| Manufacturer | Trinnov |
|---|---|
| Warranty The length of time your product is protected by warranty | 5 Years |
Tech Specs
Performance
- Freq Response: +/-0.5dB (5-20k Hz)
- Load independent, THD + N: <0.05%
- Signal/noise ratio: -120dB ref
- Crosstalk: lower than -90dB.
- Gain: 19dB (18.6-19.6dB)
Output
- 200W RMS/Ch @8Ω on 8
- 300W RMS/Ch @4Ω on any 4
Type
- Microprocessor: turn-on delay
- Automatic: AC Voltage config
- Hypex N-Core: NC-500 Class D amp
Power
- AC: 117/230V (Min/Max); 50/60Hz
- Automatically selects proper voltage
- Amp fuse: 20 for 120V, 12.5 for 230V
- Use: <0.5/80/40W (Standby/Idle/Sleep)
- Full: (1kHz, 8ohms) 2500VA, 2000W
General
- Dimensions (WHD): 432 x 150 x 394mm
- Weight: 29.8Kg (65.5lbs)
Description
Trinnov Amplitude 8m Eight Channel Class D power amplifier replicates all immersive audio formats in their entirety. This power amplifier is the ideal companion to the Altitude16, this amplifier is designed to deliver the rigorous demands of audiophiles, bringing pristine audio quality and smart power at a lower price range without compromising build and design quality.
Lowest Noise Possible
The Trinnov Amplitude 8m delivers the lowest possible noise and distortion. This feature is extremely important. In a venue that might have up to thirty speakers in one room, if each of those speakers produced even the smallest amount of noise, it would become noticeable and disruptive immediately. With the Amplitude8m, this is not an issue.
Intelligent Power
Microprocessor control is used in Trinnov amplifiers for turn-on delay. The 8m features a system that implements automatic AC power recognition and configuration. As well as the amplifiers recognising when they are connected to 117V/230V nominal power, they also self configure automatically.
Movie Experience
The 8m delivers audiophile-level sound reproduction for your home cinema with absolutely no background noise where scenes in movies or tv shows are super quiet. Enjoy incredible sound quality and accuracy in both music and movie soundtracks, even when the volume is really high.
Sleep Circuit
The Amplitude8m includes an all-new sleep circuit that removes the output modules power when the system is idle for more than 10 minutes, to indicate this and LED will flash on the front-panel. Once an input signal is picked up again from any channel, playback operation will resume right away.
