Unison Research Simply Phono Stage
You can earn loyalty points on every order you place on this website. If you select to create an account at checkout, your loyalty points will be saved and you can use these to discount future orders online.
Each product page shows you how many loyalty points you can earn when you order that item. Essentially, for each £1 you spend, you earn 1 loyalty point and for every 1 point earned, 1p will be added to your loyalty point balance (this is the same as some of the UK's biggest loyalty point cards). So for example, if you spend £500, you'll earn 500 loyalty points which can be used to discount a future order by £5.00.
Features
| Manufacturer | Unison Research |
|---|---|
| Warranty The length of time your product is protected by warranty | 1 Year (2 Years on registration) |
Tech Specs
- Stage: Pure Class A Valve Phono
- RIAA: Passive ±0.2dB (20/20k Hz)
- Output Impedance: 800Ω
- Outputs: 1x Line (RCA pair)
- Gain: 52dB, 100pF capacitance
- THD: 0.4% @1V output
- Signal-to-Noise Ratio: -72dB
- Inputs: 1x RCA Pair (MM or MC)
- Impedance: Switch 47k/100/50/22Ω
- Feedback Factor: 0dB
- Valves: 4x ECC83 (12AX7)
- Power Supply: External
- Dimensions (WDH): 140 x 105 x 290mm
- Weight: 3kg (incl PSU)
Description

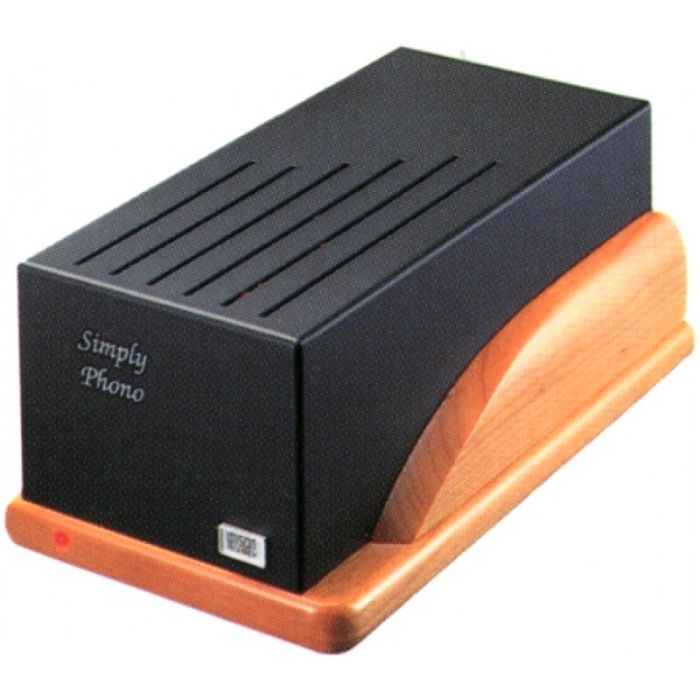

Unison Research Simply Phono is a pure Class A valve phono stage utilising four ECC83 tubes and is compatible with MM and mid-high output MC cartridges.
This all-tube phono pre-amplifier employs four ECC83 (12AX7) double triodes, arranged so the first two tubes act in parallel as a maximum gain stage, implementing a particular configuration called “ionic bias” to improve performance.
The RIAA equalization network is a completely passive solution, and premium components have been selected throughout to deliver truly high-end characteristics.
Unison Research
As the vinyl hi-fi market continues to grow from strength-to-strength, Unison Research have decided to bring their expert valve knowledge to one of the often over-looked aspects of vinyl playback; phono pre-amplification. Phono stages are essential for taking the low output from a turntable and amplifying it to Line level, so modern amplifiers can deliver an optimised sound signal to your speakers.
Sharing its name and appearance with an older model from the Unison Research range, the new Simply Phono boasts enhanced circuitry and an improved layout to deliver first-class audio. The Simply Phono can accommodate both Moving Magnet (MM) and mid-to-high output Moving Coil (MC) cartridges and features switchable impedance settings for optimum load matching.
Compatibility
Due to its high-end specifications, the Simply Phono is a great addition to systems built around Unison Research's valve amplifiers and other non-Unison Research designs. In the UK the Simply Phono is supplied with the upgraded external power supply for improved performance. Simply Phono is available with a high quality cherry wood base, a mahogany wood base is available for special order.
Key Features
- Pure Class A valve phono stage
- Four ECC83 tubes used
- MM and mid-high output MC cartridge compatible
- Switchable impedance settings
- Improved external power supply included as standard
- Excellent complement to the valve amplifier range
- High-quality Cherry Wood base
